Stainless Steel Flat Fan Spray Nozzle 5

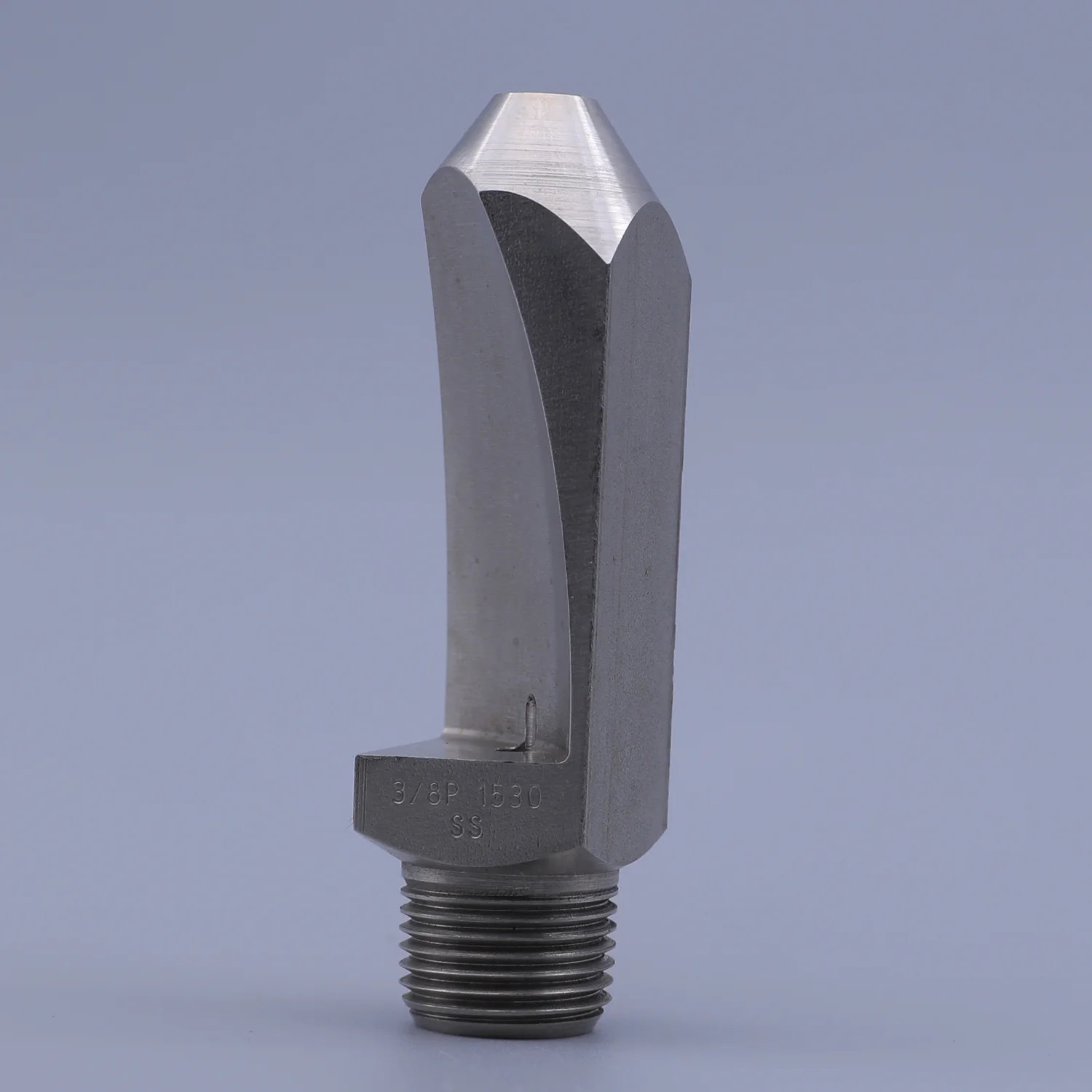

This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.
A stainless steel flat fan spray nozzle delivers a consistent, even spray pattern across a moving surface, which is essential when a continuous strip of material such as paper, fabric, or metal must be uniformly coated, rinsed, or cooled. This CNSS model is designed for durable performance in industrial washing, coating, and cooling applications where corrosion resistance and mechanical stability are required.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Stainless steel construction resists corrosion in wet or chemically aggressive environments
- Flat fan pattern ensures even coverage across a linear target without dry or wet stripes
- Threaded connection allows direct mounting on existing pipework without adapters
- One nozzle series supports multiple process applications with consistent spray geometry
- No internal parts to loosen or wear separately, reducing maintenance and downtime
- Free trial samples available to verify performance before production commitment
Application Scenarios
Where It Is Installed
- Paper machine wet end where a uniform water layer must be applied across the web width
- Surface treatment lines requiring consistent rinsing or coating on a moving strip
- Parts washing systems where a steady spray must cover the full width of a conveyor-mounted fixture
- Cooling or quenching lines where even heat removal is needed across a metal strip
- Maintenance teams replacing worn nozzles on an existing spray bar without redesign
Who It Is For
Buyers Who Specify It
- Maintenance managers replacing nozzles on paper machines or washing lines
- Process engineers specifying nozzles for consistent coating or rinsing duty
- OEM machine builders integrating a reliable nozzle into a new industrial system
- Plant engineers upgrading to corrosion-resistant nozzles in chemical or high-moisture service
- Procurement teams sourcing durable, low-maintenance nozzles for high-usage applications
Problems It Solves
What It Fixes on the Line
- Uneven spray coverage that causes inconsistent coating or incomplete rinsing on a moving strip
- Corrosion of brass or lower-grade materials in wet or chemically active environments
- Frequent nozzle failure due to loose internal parts or poor material selection
- Incompatibility with existing pipe threads requiring custom adapters
- Long lead times for replacement nozzles that delay line restart after maintenance
Technical Features
How It Is Built
- One piece stainless steel body with no internal components to degrade or separate
- Flat fan spray pattern designed for edge-to-edge coverage on linear targets
- Threaded connection for direct installation on standard pipe fittings
- Nozzle tip geometry optimized for consistent spray distribution across the width
- Suitable for use in continuous operation with minimal maintenance
- Designed for use in washing, rinsing, cooling, and coating processes
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial washing and rinsing duty
- 316 stainless steel where chlorides or chemical scrubbing liquids are present
- Brass for low cost water service at moderate temperature and pressure
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's process duty and fluid type
- Machining of the nozzle body and orifice to the specified geometry
- Inspection of orifice size and spray pattern before assembly
- Final testing of the completed nozzle under operating conditions
- Packaging and transportation with protection against mechanical damage
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every stage from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawings
- OEM orders accepted including custom marking and packaging
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Full cone nozzle | A full cone provides a circular spray pattern suitable for tank filling or gas cooling, but it does not deliver uniform coverage across a linear moving surface |
|---|---|
| Hollow cone nozzle | A hollow cone produces a ring-shaped spray with finer droplets, better for gas scrubbing, but it cannot cover a flat strip evenly |
| Spiral nozzle | A spiral nozzle handles solids better due to its external vane, but its conical spray pattern is not suitable for linear coverage |
| Plastic flat fan nozzle | Plastic nozzles are lighter and cheaper, but stainless steel offers better durability and resistance to high pressure and temperature |
Use Guide
Fitting and Running It
- Confirm the target width and standoff distance before selecting the nozzle
- Ensure adjacent nozzles are aligned so their spray patterns overlap evenly
- Match the thread standard to the existing pipework to avoid adapter use
- Use 316 stainless steel when chlorides or aggressive chemicals are present
- Inspect the nozzle tip for wear if spray coverage begins to degrade
- Fit a strainer when using recirculated or dirty water to protect the orifice
Questions Buyers Ask
Stainless Steel Flat Fan Spray Nozzle 5 Questions
What spray angle and flow rate can you supply?
The spray angle and flow rate for this stainless steel flat fan spray nozzle are confirmed on enquiry based on the customer's process requirements and system pressure.
Which thread sizes and standards do you make?
Thread sizes and standards are confirmed on enquiry. This nozzle is available with standard threading suitable for industrial pipework, and custom sizes can be made to drawing.
Which body material should I choose?
Choose 303 stainless steel for general washing, 316 stainless steel for chloride or chemical exposure, or brass for plain water service at moderate temperature.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept small orders and OEM marking?
Yes. Small volume orders are accepted, and standard or non-standard nozzles can be made to your drawing under an OEM order.
What happens if a nozzle fails in service?
A 3 month quality guarantee is provided. Send the nozzle photo and service conditions by email, and we will assess the failure mode.
What are your payment terms?
Payment terms are T/T 100% in advance. Confirm the model, quantity, and destination port by email, and we will provide the terms for your order.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Flat Fan Spray Nozzle 5
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
