Stainless Steel Flat Fan Spray Nozzle 3
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.

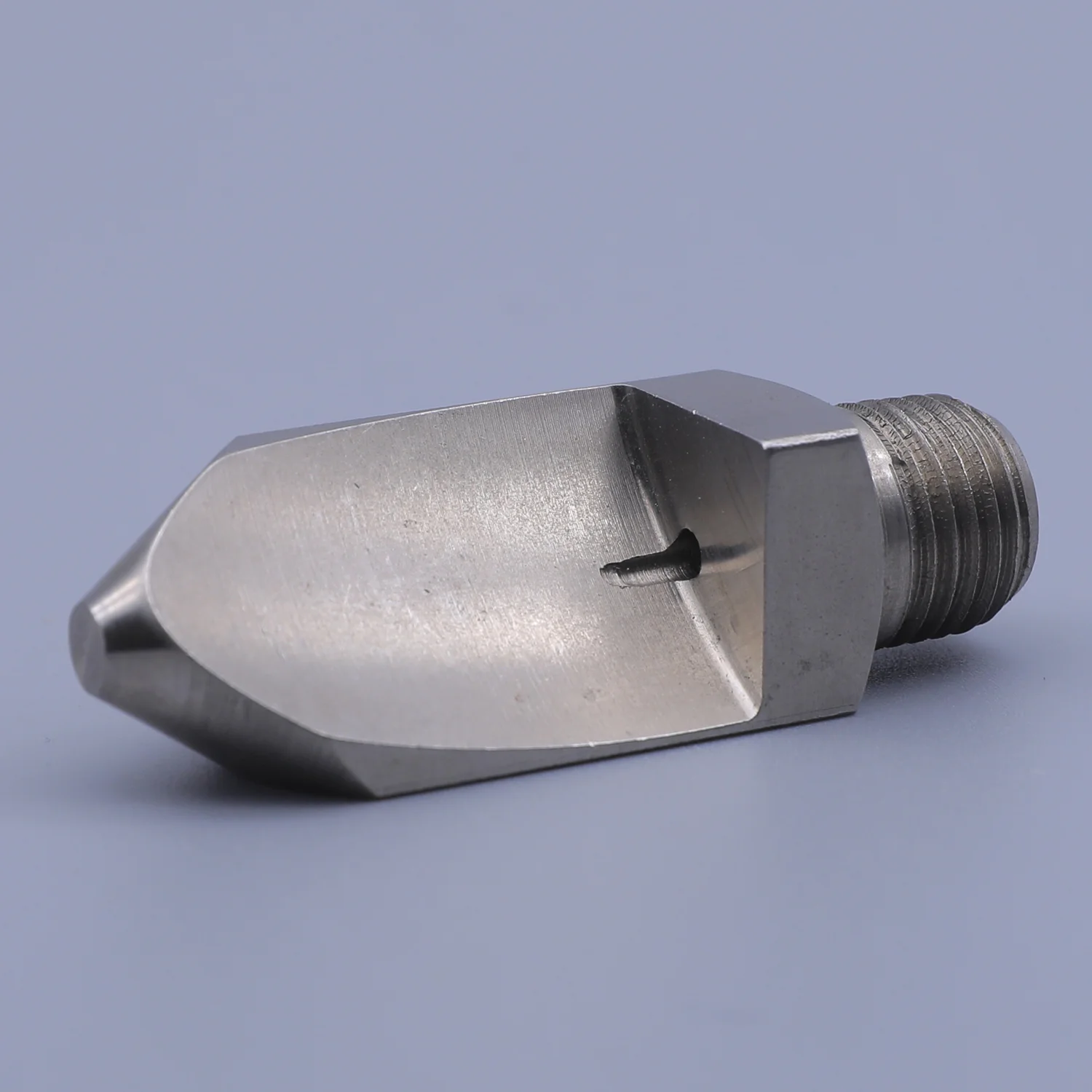

A stainless steel flat fan spray nozzle delivers a consistent, even spray pattern across a moving surface, which is essential when a strip of paper, a conveyor of material, or a rotating drum must be uniformly coated, rinsed, or cooled. This CNSS model is designed for durable service in papermaking, parts washing, and surface treatment lines where corrosion resistance and long-term reliability are required.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Stainless steel construction resists corrosion in wet, chemical, or high humidity environments
- Flat fan pattern ensures uniform coverage across a moving target without dry or wet stripes
- Threaded connection allows direct fitting to existing pipework without adapters
- One nozzle series can serve multiple process steps within the same line
- No internal parts to loosen or wear separately, reducing maintenance downtime
- Free trial samples available to verify performance before bulk ordering
Application Scenarios
Where It Is Installed
- Papermaking lines where a uniform water or chemical spray is needed across the width of a moving web
- Parts washing systems requiring consistent rinsing across a rotating fixture
- Surface treatment lines where even coating or cooling must be maintained
- Maintenance teams replacing nozzles in a high-wear, high-moisture environment
- OEM machine builders integrating a reliable nozzle into a new washing or coating system
Who It Is For
Buyers Who Specify It
- Maintenance managers in paper mills replacing worn nozzles on coating or drying sections
- Plant engineers specifying nozzles for a new parts washing or surface treatment line
- OEM machine builders needing a durable, consistent nozzle for industrial equipment
- Procurement engineers sourcing reliable nozzles for high-moisture or chemically aggressive processes
- Facility managers upgrading spray systems to reduce downtime and wear
Problems It Solves
What It Fixes on the Line
- Uneven spray coverage that causes inconsistent coating or incomplete rinsing
- Corrosion of brass or lower-grade materials in humid or chemically active environments
- Frequent nozzle failure due to loose internal parts or poor material selection
- Incompatibility with existing pipe threads requiring custom adapters
- Long lead times for replacement parts that delay maintenance or production
Technical Features
How It Is Built
- One piece stainless steel construction with no internal components to fail
- Flat fan spray pattern designed for edge-to-edge coverage on moving surfaces
- External threads allow direct mounting on standard pipe fittings
- No internal seals or gaskets that can degrade over time
- Smooth internal flow path minimizes clogging in recirculated water systems
- Designed for use in continuous operation under moderate pressure
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial washing and rinsing duty
- 316 stainless steel for service in chloride-rich or chemically aggressive environments
- Brass is not used in this model; stainless steel is the only body material
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's process environment and duty
- Machining of the nozzle body and orifice to precise dimensions
- Inspection of the spray pattern and orifice integrity
- Packaging in protective containers to prevent damage during transit
- Final inspection before shipment
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Quality controlled at material selection, manufacturing, inspection, packaging, and transportation
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawings
- OEM orders accepted, including customer marking and packaging
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Hollow cone nozzle | A hollow cone produces a ring-shaped spray with finer droplets, suitable for gas scrubbing, but it cannot deliver a uniform line across a moving web |
|---|---|
| Full cone nozzle | A full cone covers a circular area and is better for tank filling or cooling towers, but it does not provide edge-to-edge coverage on a linear target |
| Plastic flat fan nozzle | Plastic versions are lighter and cheaper but less durable under high pressure or abrasive duty; this stainless steel model offers longer service life |
| Spiral nozzle | A spiral nozzle handles solids better due to its external vane, but its conical spray pattern is not suitable for even linear coverage |
Use Guide
Fitting and Running It
- Confirm the target width and standoff distance before selecting a nozzle
- Ensure adjacent nozzles are aligned so their spray fans overlap evenly
- Match the thread standard to the existing pipe system to avoid adapters
- Use in applications where corrosion resistance is required, such as papermaking or chemical rinsing
- Inspect the orifice for wear or clogging if spray pattern becomes uneven
- Specify a custom drawing if the standard size does not match the installation
Questions Buyers Ask
Stainless Steel Flat Fan Spray Nozzle 3 Questions
What body material is used in this nozzle?
This stainless steel flat fan spray nozzle is made from 303 stainless steel or 316 stainless steel, selected based on the process environment. Brass or plastic is not used in this model.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge, and samples can be ready within 10 days.
Do you accept OEM orders and custom drawings?
Yes. Standard and non-standard nozzles can be made to your drawing, and OEM orders including customer marking are accepted.
What is the quality guarantee for this product?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us a photo and details of the operating conditions for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email, and we will confirm the terms for your order.
Are thread sizes available in different standards?
This nozzle has external threads. The thread standard is confirmed on enquiry based on your installation requirements.
Can I use this nozzle in a papermaking line?
Yes. This stainless steel flat fan spray nozzle is suitable for papermaking applications where uniform water or chemical distribution across a moving web is required.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Flat Fan Spray Nozzle 3
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
