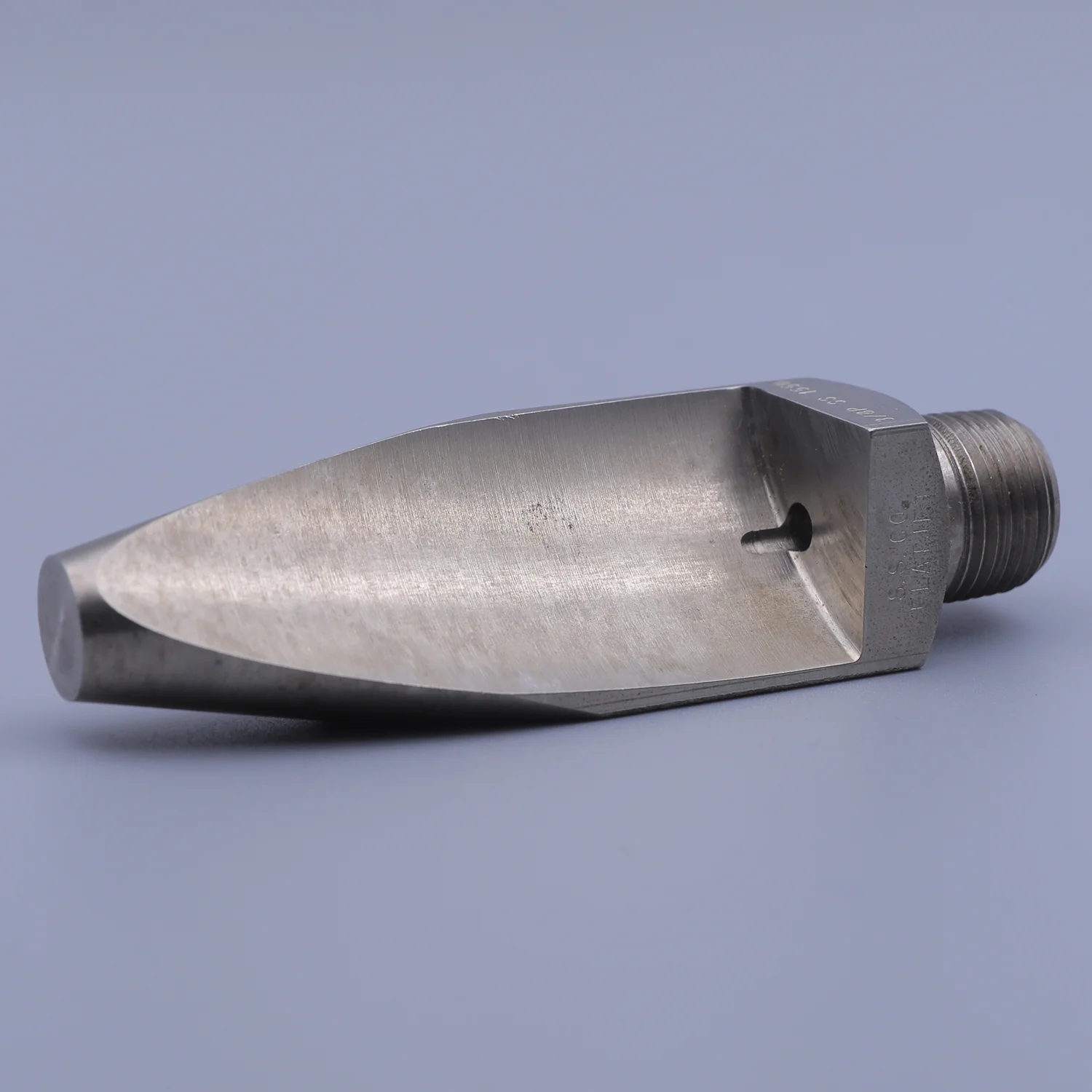

Stainless Steel Flat Fan Spray Nozzle 2
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.
A stainless steel flat fan spray nozzle delivers a consistent, even spray pattern across a moving surface, which is essential when a continuous strip of material such as paper, metal, or fabric must be uniformly treated, rinsed, or cooled. This CNSS model is built for durability in high-wear or chemically aggressive environments where brass or plastic nozzles would degrade quickly. The nozzle is designed to maintain a stable spray angle and flow under sustained operation, reducing the risk of uneven treatment or process downtime.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Stainless steel body resists corrosion and wear in harsh industrial environments
- Flat fan pattern ensures even coverage across a moving strip or conveyor
- Threaded connection allows direct fit to standard pipework without adapters
- No internal parts to loosen or wear separately, reducing maintenance
- Suitable for continuous operation in paper mills, washing lines, and surface treatment systems
- Free trial samples available to verify performance before bulk ordering
Application Scenarios
Where It Is Installed
- Paper machine wet end where a uniform water layer must be applied across the sheet width
- Surface treatment lines requiring consistent rinsing or coating application
- Parts washing systems where a stable spray plane ensures all surfaces are cleaned
- Cooling or quenching lines where even heat removal is critical
- Maintenance teams replacing nozzles in a high-pressure washing bar
Who It Is For
Buyers Who Specify It
- Maintenance managers in paper mills replacing worn nozzles on forming or press sections
- Plant engineers specifying durable nozzles for continuous surface treatment lines
- OEM machine builders integrating nozzles into washing or coating systems
- Process engineers in metal or textile plants needing consistent spray coverage
- Procurement teams sourcing reliable nozzles for high-volume industrial use
Problems It Solves
What It Fixes on the Line
- Uneven spray coverage that leads to inconsistent product quality or coating thickness
- Rapid wear or corrosion of brass nozzles in wet or chemically aggressive environments
- Frequent nozzle failure causing unplanned line stoppages
- Mismatched thread standards requiring custom adapters or rework
- Inconsistent flow due to internal parts loosening or clogging over time
Technical Features
How It Is Built
- One piece construction with no internal components to fail or wear
- Flat fan spray pattern designed for edge-to-edge coverage on moving surfaces
- Threaded connection allows direct installation on standard piping
- Stainless steel body resists corrosion and mechanical wear
- Nozzle body geometry maintains consistent spray angle under operating pressure
- Designed for continuous operation in high-duty industrial processes
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial washing and rinsing duty
- 316 stainless steel for applications involving chlorides or aggressive chemicals
- Brass for low-cost water service at moderate temperature and pressure
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's process duty and chemical exposure
- Machining of the nozzle body and orifice to precise dimensions
- Inspection of orifice size and spray pattern before assembly
- Final testing of each nozzle before packaging
- Packaging and transportation with protection against damage
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawings
- OEM orders accepted including customer marking and branding
- Small volume orders accepted for trial or replacement use
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Brass flat fan nozzle | A brass nozzle is lower cost but less resistant to corrosion in chemical or high-moisture environments; this stainless steel version is better suited for long-term service in aggressive conditions |
|---|---|
| Plastic flat fan nozzle | Plastic nozzles are lighter and cheaper but can degrade under UV exposure or high temperature; stainless steel offers better durability in continuous industrial use |
| Full cone nozzle | A full cone covers a circular area and is better for tank filling or gas cooling, while a flat fan is the correct choice when the target is a linear or strip-shaped surface |
| Hollow cone nozzle | A hollow cone produces finer droplets in a ring pattern, ideal for gas scrubbing, but cannot deliver a uniform line across a moving strip |
Use Guide
Fitting and Running It
- Confirm the required spray angle and flow rate based on the target width and standoff distance
- Ensure the thread standard matches the existing pipework to avoid adapter use
- Inspect the nozzle orifice regularly for wear or clogging, especially in recirculated water systems
- Align all nozzles on a header so their spray planes are parallel and evenly spaced
- Choose 303 or 316 stainless steel based on chemical exposure and temperature in the process
- Use trial samples to verify spray pattern and coverage before placing a full order
Questions Buyers Ask
Stainless Steel Flat Fan Spray Nozzle 2 Questions
What materials are available for this stainless steel flat fan nozzle?
The nozzle is available in 303 stainless steel for general duty, 316 stainless steel for chloride or chemical exposure, and brass for low-cost water service. Confirm your process conditions to select the right material.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days. This allows you to verify the spray pattern and fit before committing to a full order.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard nozzles can be made to your drawing. OEM orders are accepted, including customer marking and branding.
What is the quality guarantee for this nozzle?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us a photo and details of the operating conditions for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email, and we will confirm the payment terms for your order.
Are thread sizes and spray angles available in this model?
Dimensions and spray angles are confirmed against the customer's drawing or duty sheet. Provide your process requirements and we will confirm the correct size and configuration.
Can this nozzle be used in paper making or surface washing systems?
Yes. This stainless steel flat fan nozzle is designed for paper making, surface washing, and other industrial processes requiring consistent, durable spray coverage.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Flat Fan Spray Nozzle 2
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
