General Nozzle
Stainless Steel Angled Spray Nozzle

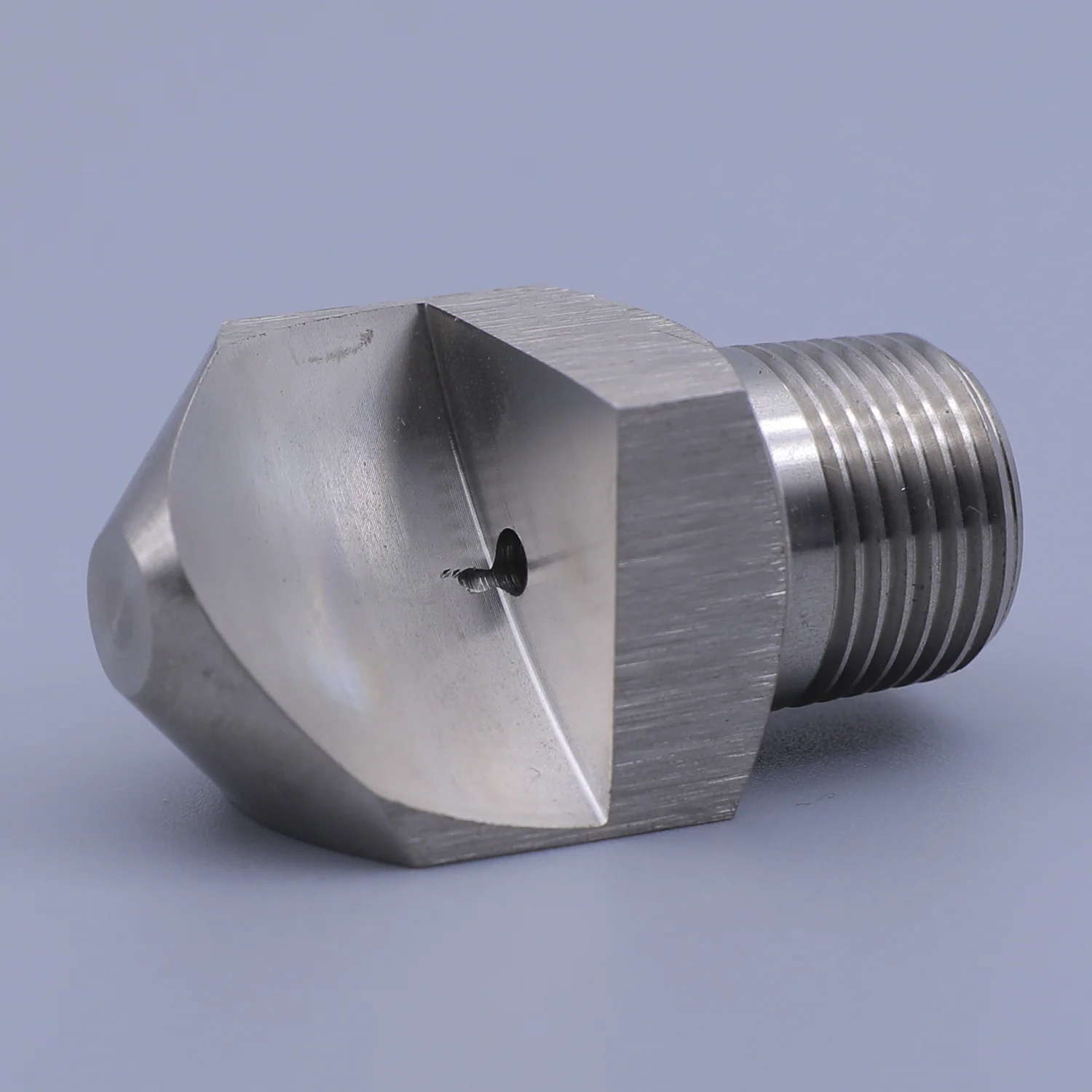

This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.
An angled spray nozzle directs a stream of liquid at a specific angle to a target surface, which is required when a fixed point or a curved surface needs consistent coverage from a single nozzle. This CNSS stainless steel angled spray nozzle is designed for applications where the spray direction must be set at a fixed angle, such as washing a vertical surface, delivering liquid to a curved conveyor, or targeting a specific zone in a process line. The body is made from stainless steel to resist corrosion and wear in continuous industrial service.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Fixed spray angle allows precise targeting without adjusting the nozzle position
- Stainless steel body resists corrosion and maintains shape under repeated use
- Threaded connection enables secure mounting on pipes or fittings
- No internal parts to disassemble or replace, reducing maintenance
- Suitable for water, mild chemicals, and low viscosity liquids in continuous duty
- Free trial samples available to verify spray pattern and angle before bulk order
Application Scenarios
Where It Is Installed
- Washing a vertical surface in a parts cleaning line where the spray must hit at a consistent angle
- Delivering liquid to a curved conveyor belt that cannot be reached by a straight nozzle
- Targeting a specific zone in a paper making process where spray must avoid adjacent rollers
- Applying liquid to a fixed point in a surface treatment line with limited space for adjustment
- Maintaining consistent spray direction in a high vibration environment where alignment shifts
Who It Is For
Buyers Who Specify It
- Maintenance teams replacing nozzles in a paper machine or washing line with fixed spray points
- Process engineers specifying nozzles for a new installation where spray direction is fixed
- OEM machine builders integrating nozzles into equipment with limited mounting space
- Plant engineers upgrading to corrosion-resistant nozzles in chemical or water service
- Facility managers replacing worn or misaligned nozzles in a high-use washing system
Problems It Solves
What It Fixes on the Line
- Spray missing the target due to misalignment when the nozzle is mounted straight
- Inconsistent coverage on curved or angled surfaces from standard straight nozzles
- Frequent nozzle replacement due to material degradation in wet or chemically aggressive environments
- Need for custom brackets or supports to adjust spray direction
- Spray pattern shifting over time due to loose or poorly secured nozzle fittings
Technical Features
How It Is Built
- Single piece construction with no internal components to wear or loosen
- Threaded connection allows direct mounting on pipe or fitting without adapters
- Fixed angle design ensures consistent spray direction after installation
- Stainless steel body provides durability in wet or corrosive environments
- Hex body allows for secure gripping during installation or removal
- No filter or strainer included, so suitable for clean or filtered liquid service
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial washing and rinsing
- 316 stainless steel where chlorides or mild chemical exposure is present
- Brass is not used in this model; body is stainless steel only
Manufacturing Process
How the Part Is Made
- Material selection based on the duty and environment described by the customer
- Machining of the body and angled orifice
- Inspection of the spray angle and orifice integrity
- Packaging in protective material
- Transportation under controlled conditions
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Quality controlled at material selection, manufacturing, inspection, packaging, and transportation
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listing
Customization
What Can Be Changed to Suit You
- Standard and non-standard parts can be customised to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial or replacement use
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Straight spray nozzle | A straight nozzle delivers a linear stream but cannot direct spray at an angle; the angled version is needed when the target is not aligned with the pipe |
|---|---|
| Full cone nozzle | A full cone covers a circular area and is used for tank filling or gas cooling, while this angled nozzle is for targeted application on a specific surface |
| Flat fan nozzle | A flat fan spreads spray across a line, but does not allow directional control at an angle; this nozzle is better when the spray must hit a surface at a set angle |
| Hollow cone nozzle | A hollow cone produces a ring pattern for gas scrubbing, but cannot deliver a focused stream at a fixed angle like this model |
Use Guide
Fitting and Running It
- Confirm the required spray angle and target distance before selecting the model
- Ensure the thread size matches the existing pipe or fitting to avoid adapters
- Install the nozzle so the spray hits the target surface at the intended angle
- Check for obstructions or misalignment that could cause spray drift
- Inspect the orifice for clogging if spray pattern changes over time
- Use only with clean or filtered liquids to avoid blockage in the angled orifice
Questions Buyers Ask
Stainless Steel Angled Spray Nozzle Questions
What spray angle can you supply?
The spray angle is fixed at the time of manufacture and confirmed against your drawing or duty sheet. The angle is not adjustable in service.
Which body material is used in this nozzle?
This stainless steel angled spray nozzle is made from 303 stainless steel or 316 stainless steel, depending on the application. The material is selected based on the operating environment.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom designs?
Yes. Standard and non-standard nozzles can be customised to your drawing, including customer marking under an OEM order.
What is the quality guarantee for this nozzle?
A 3 month quality guarantee is stated on the product listing. If a nozzle fails in service, send us a photo and the operating conditions by email for assessment.
What are your payment terms?
The product listing states T/T 100% in advance. Send the model, quantity, and destination port by email to receive the payment terms for your order.
Is there a thread size available for this nozzle?
Thread size is confirmed against your drawing or duty sheet. The nozzle is available in standard sizes, but the exact size is not listed in the facts.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Angled Spray Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
