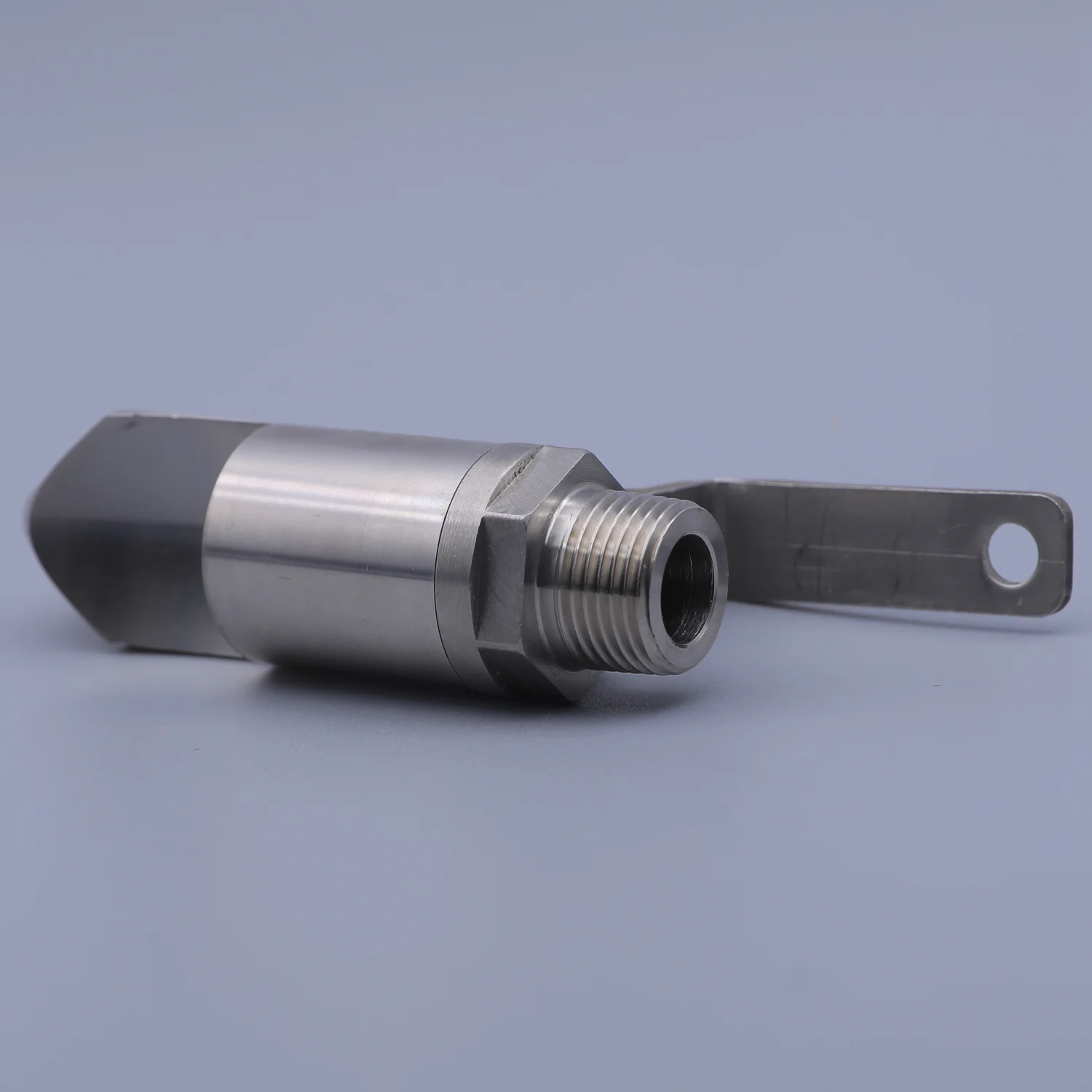

Stainless Steel Air Nozzle with Mounting Bracket
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.
A stainless steel air nozzle with mounting bracket delivers a focused, high-velocity air jet for cleaning, drying, or cooling operations where consistent airflow and secure mounting are required. This CNSS model is designed for use in industrial environments where vibration, moisture, or mechanical stress could dislodge a standard nozzle. The integrated bracket ensures the nozzle stays aligned during operation, which is critical in automated lines or high-pressure air systems.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Mounting bracket prevents nozzle displacement during high-pressure or vibrating operations
- Stainless steel construction resists corrosion in humid or chemically exposed environments
- Hex body allows secure gripping during installation and maintenance
- Threaded inlet connection enables direct fit to standard air supply lines
- No separate bracket or fasteners required, reducing assembly time and parts count
- Suitable for repeated use in drying, cleaning, and cooling applications without misalignment
Application Scenarios
Where It Is Installed
- Automated drying lines where consistent air blast is needed across a moving web or sheet
- Cleaning stations in paper mills where debris must be removed from rollers or belts
- Surface preparation areas where residual moisture or dust must be blown off before coating
- Assembly lines requiring precise air blasts to position or cool components
- Maintenance tasks where a stable, fixed air jet is needed for spot cleaning or inspection
Who It Is For
Buyers Who Specify It
- Maintenance engineers replacing loose or misaligned air nozzles on production lines
- OEM machine builders integrating fixed air nozzles into automated equipment
- Plant managers seeking to reduce downtime from nozzle displacement
- Process engineers specifying durable, vibration-resistant air delivery components
- Facility managers upgrading to corrosion-resistant fittings in humid or wet areas
Problems It Solves
What It Fixes on the Line
- Nozzle vibration or movement causing inconsistent air coverage or misalignment
- Frequent replacement due to loose mounting or bracket failure
- Downtime from disassembled or lost nozzles during maintenance
- Inconsistent drying or cleaning performance from misaligned jets
- Need for additional brackets or fasteners that add complexity and cost
Technical Features
How It Is Built
- Integrated mounting bracket for secure, stable installation
- Hexagonal body for tool grip during tightening or removal
- External threads on inlet for direct connection to standard air lines
- One-piece construction with no internal parts to loosen
- Designed for continuous or intermittent air delivery at industrial pressure
- Flat metal tab provides a fixed reference point for alignment
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial air service
- 316 stainless steel for use in environments with chlorides or higher chemical exposure
- 304 stainless steel for moderate corrosion resistance in clean air applications
Manufacturing Process
How the Part Is Made
- Material selection based on the operating environment and air medium
- Machining of the body, threads, and bracket
- Inspection of thread fit and bracket alignment
- Final assembly and visual check
- Packaging and transportation
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to drawing
- OEM orders accepted including customer marking
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Plastic air nozzle | Plastic nozzles may degrade under high pressure or temperature, but stainless steel offers durability in harsher industrial conditions |
|---|---|
| Nozzle with separate bracket and fasteners | This integrated design reduces parts count, assembly time, and risk of missing components |
| Threaded air fitting without mounting feature | This model provides a fixed mounting solution, while a standard fitting requires additional hardware for stability |
Use Guide
Fitting and Running It
- Confirm the air pressure and flow requirements before selecting the nozzle
- Ensure the thread size matches the existing air line connection
- Align the bracket with the mounting surface before tightening
- Check that the air jet is directed at the target without obstruction
- Inspect the bracket and threads periodically for wear or loosening
- Replace the nozzle if the bracket shows deformation or the threads are damaged
Questions Buyers Ask
Stainless Steel Air Nozzle with Mounting Bracket Questions
What materials are available for this air nozzle?
The stainless steel air nozzle with mounting bracket is available in 303 stainless steel, 304 stainless steel, and 316 stainless steel, depending on the operating environment.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and are ready within 10 days.
Do you accept OEM orders and custom drawings?
Yes. Standard and non-standard nozzles can be made to your drawing under an OEM order.
What is the lead time for samples?
Samples can be ready within 10 days after order confirmation.
What happens if the nozzle fails in service?
A 3 month quality guarantee is given on the product. Send us the nozzle photo and the service conditions by email and we will assess the failure.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email and we will confirm the terms for your order.
Is the mounting bracket included in the standard model?
Yes. The mounting bracket is integrated into the nozzle body and included in every unit shipped.
Go Deeper
Industries Guides and Ways to Order
Ask About Stainless Steel Air Nozzle with Mounting Bracket
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
