Machined Stainless Steel Nozzle Insert
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.
A machined stainless steel nozzle insert provides a durable, precision-formed orifice for high-pressure spray applications where consistent flow and resistance to erosion are required. This insert is designed to fit into a larger nozzle body or housing, delivering reliable performance in demanding industrial processes such as paper making, surface washing, and parts cleaning.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Precision machined orifice ensures consistent flow and spray pattern under pressure
- Stainless steel construction resists wear and corrosion in aggressive or high-temperature environments
- Interchangeable insert design allows for easy replacement without replacing the entire nozzle body
- Suitable for high-pressure systems where material integrity and dimensional stability are critical
- Reduces downtime by enabling quick maintenance and part replacement
- Can be matched to specific flow and pressure requirements through custom machining
Application Scenarios
Where It Is Installed
- Paper making lines requiring consistent water or chemical distribution across a moving web
- Parts washing systems where high-pressure spray must maintain a stable flow pattern
- Surface treatment lines needing durable inserts that resist erosion from abrasive fluids
- Industrial cleaning stations where nozzle inserts are subject to frequent replacement
- Maintenance teams replacing worn or damaged orifices without replacing the full nozzle assembly
Who It Is For
Buyers Who Specify It
- Maintenance engineers replacing worn orifices in high-pressure spray systems
- OEM machine builders integrating replaceable inserts into custom spray manifolds
- Paper mill operators seeking long-lasting inserts for consistent web hydration
- Plant engineers upgrading to more durable inserts in corrosive or abrasive service
- Facilities managing high-volume cleaning lines that require rapid nozzle part replacement
Problems It Solves
What It Fixes on the Line
- Frequent replacement of entire nozzles due to a single worn orifice
- Inconsistent flow caused by erosion or clogging in the orifice under high pressure
- Downtime caused by long lead times for custom or non-standard nozzle bodies
- Inability to match exact flow rates due to limited standard orifice sizes
Technical Features
How It Is Built

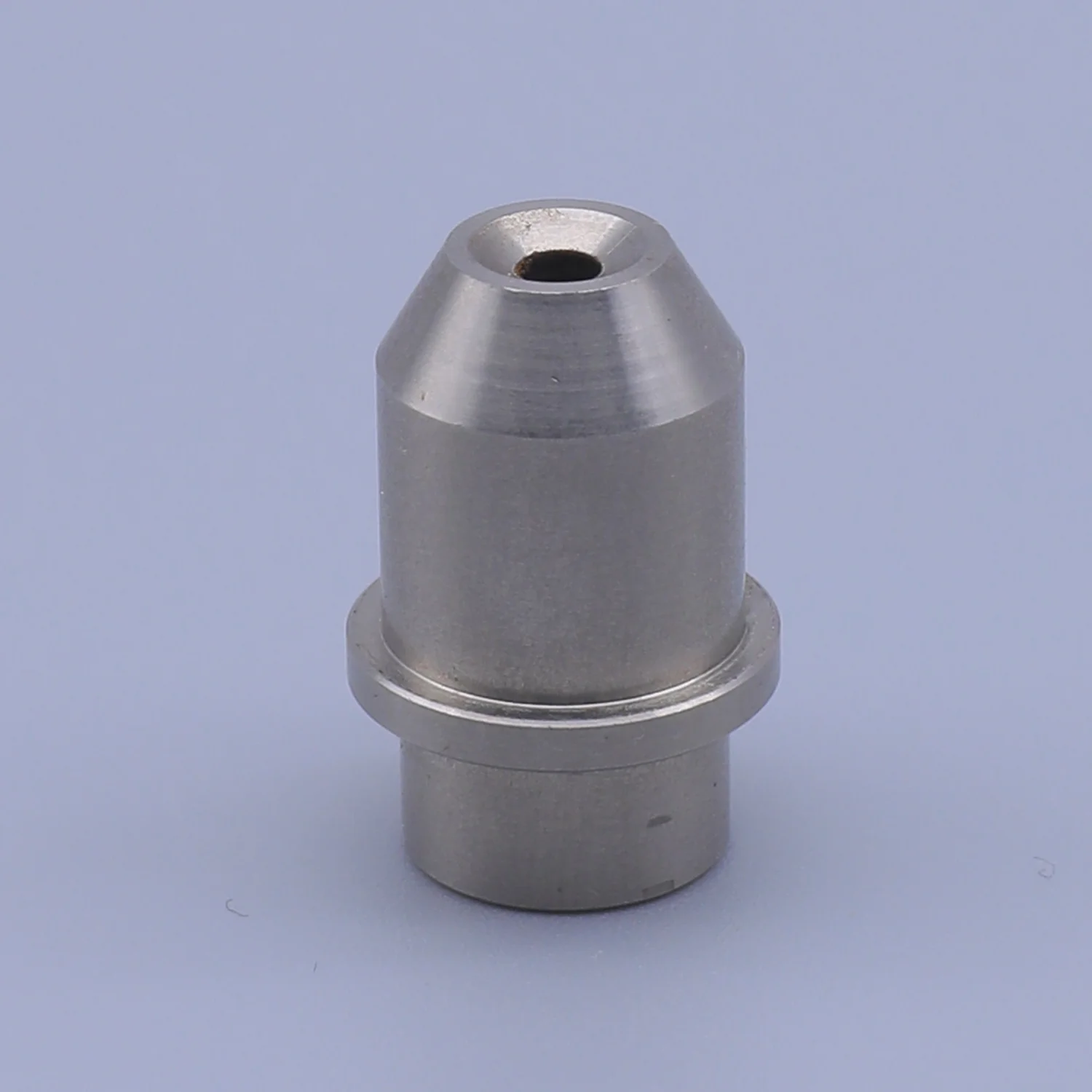

- One piece machined stainless steel construction with no internal joints or loose parts
- Tapered tip design for smooth fluid entry and consistent spray formation
- Stepped base allows secure seating in a variety of nozzle body types
- Central hole precision drilled to maintain flow accuracy under pressure
- Designed for use in high-pressure systems with stable performance over time
- Interchangeable design supports modular nozzle systems
Materials
Body Materials and Where Each One Suits
- 303 stainless steel for general industrial service
- 304 stainless steel for moderate chemical and temperature resistance
- 316 stainless steel for service with chlorides or higher corrosion resistance
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's process duty
- Machining of the orifice and tapered tip to the specified dimensions
- Inspection of orifice size and surface finish
- Final cleaning and packaging
- Shipping with traceable quality control records
Quality Control
What Is Checked Before It Ships
- Raw material is restricted to selected brass, 303 stainless steel, 304 stainless steel and 316 stainless steel
- Every process from material selection to transportation is controlled
- Every product is tested before it leaves the factory
- A 3 month quality guarantee is given on the product
Customization
What Can Be Changed to Suit You
- Standard and non-standard inserts can be made to customer drawings
- OEM orders accepted including customer marking and packaging
- Orifice size and taper can be adjusted to match specific flow and pressure requirements
- Small volume orders accepted for trial installations
- Samples can be ready within 10 days
Comparison
How It Compares With the Alternatives
| Plastic nozzle insert | Plastic inserts are lighter and cheaper but degrade under high pressure or temperature; stainless steel offers longer life in harsh conditions |
|---|---|
| Brass nozzle insert | Brass is less resistant to corrosion and wear; stainless steel maintains integrity in aggressive or abrasive fluids |
| Standard threaded nozzle | A full nozzle includes body and orifice; the insert allows replacement of only the wear-prone part, reducing cost and downtime |
Use Guide
Fitting and Running It
- Confirm the required flow rate, pressure, and fluid type before selecting the insert size
- Ensure the insert fits the host nozzle body's internal dimensions and seating surface
- Inspect the insert for wear or blockage after extended use
- Replace only the insert when the orifice shows signs of erosion or clogging
- Use the correct torque when securing the insert to avoid misalignment or damage
- Keep a spare insert on hand for quick replacement during maintenance
Questions Buyers Ask
Machined Stainless Steel Nozzle Insert Questions
What materials are available for the machined stainless steel nozzle insert?
Available materials include 303 stainless steel, 304 stainless steel, and 316 stainless steel, selected based on the process duty such as chemical exposure or temperature.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge and samples can be ready within 10 days.
Do you accept OEM orders and custom drawings?
Yes. Standard and non-standard inserts can be made to your drawing under an OEM order, including customer marking and packaging.
What is the lead time for a custom insert?
Samples can be ready within 10 days. Production lead time is confirmed upon receipt of the drawing and order details.
What happens if the insert fails in service?
A 3 month quality guarantee is given on the product. Send us the insert photo and the service conditions by email and we will assess the wear pattern.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity and destination port by email and we will confirm the terms for your order.
How do I ensure the insert fits my existing nozzle body?
Provide the host body dimensions or drawing. We will confirm the insert fit and dimensions before production.
Go Deeper
Industries Guides and Ways to Order
Ask About Machined Stainless Steel Nozzle Insert
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
