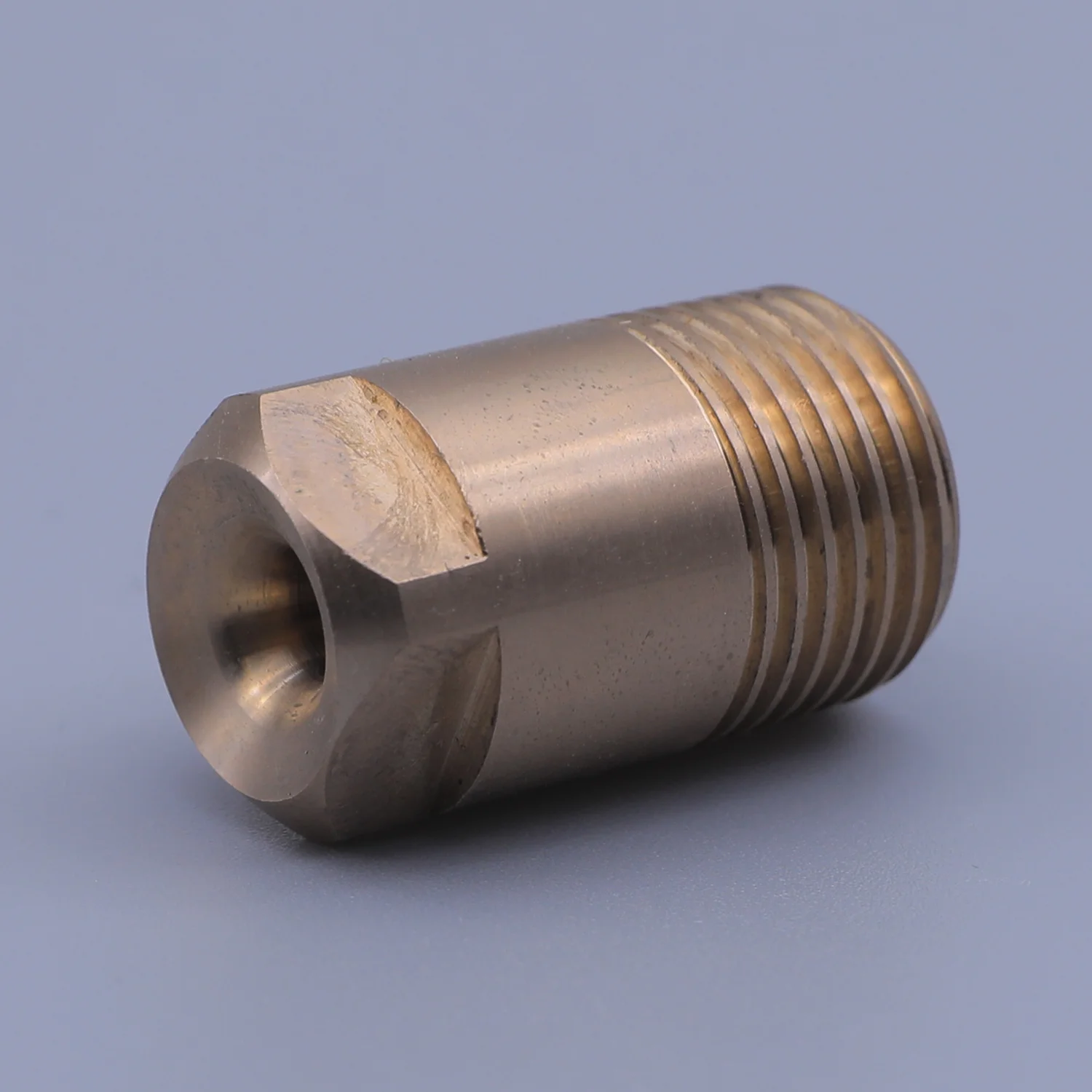

Brass Hex Body Spray Nozzle
This listing appeared on the previous site under a single generic product title with no specification text. The description below reports only what is visible in the factory photographs of this item. Model reference, thread size, spray pattern and flow data are confirmed by email before quotation.
A brass hex body spray nozzle delivers consistent fluid distribution in a fixed position, which is essential when a stable spray pattern is needed for surface washing, paper web conditioning, or targeted rinsing in a continuous process line. The hexagonal body allows for secure gripping during installation and maintenance, and the brass construction provides durability in moderate pressure and temperature applications.
No published specification table exists for this listing. Send the duty and the thread on your header and we will confirm the size, pattern and material by email.
Key Benefits
What This Nozzle Gives You
- Hex body design allows for easy installation and removal with standard tools
- Brass construction offers good wear resistance in water and low chemical duty
- Threaded fitting enables direct connection to standard piping without adapters
- Stable spray pattern maintains consistency across repeated cycles
- Compact design fits in tight spaces where larger nozzles cannot be used
- Free trial samples available to verify fit and spray performance before bulk order
Application Scenarios
Where It Is Installed
- Paper web conditioning where a steady spray is needed to control moisture across a moving sheet
- Surface washing of small parts in a fixed station where consistent spray coverage is critical
- Maintenance access points in a plant where a nozzle must be installed and removed frequently
- Rinsing stations in a production line where a stable spray pattern prevents over-spray or dry spots
- Low pressure misting applications in a controlled environment where a fixed spray is required
Who It Is For
Buyers Who Specify It
- Maintenance teams replacing nozzles in a paper machine or washing line
- Plant engineers specifying nozzles for a new or upgraded rinsing station
- OEM machine builders integrating a reliable nozzle into a fixed spray module
- Facility managers sourcing durable nozzles for routine cleaning tasks
- Procurement engineers evaluating a standard component with consistent performance
Problems It Solves
What It Fixes on the Line
- Inconsistent spray pattern due to loose or misaligned nozzle body
- Difficulty in installing or removing a nozzle in a tight or hard-to-reach location
- Frequent nozzle failure from thread galling or body deformation under torque
- Need for a nozzle that maintains alignment over time without drifting
- Lack of a standard body shape that fits common tools and installation practices
Technical Features
How It Is Built
- Hexagonal body provides a secure grip for wrenching during installation and removal
- Threaded connection allows direct fit to standard pipe threads
- Single piece brass body with no internal parts to separate or wear
- Internal bore designed for consistent flow and even spray distribution
- Compact profile fits in confined spaces without interfering with adjacent components
- No filter or strainer included; suitable for clean or filtered water service
Materials
Body Materials and Where Each One Suits
- Brass for general water service at moderate temperature and pressure
- 303 stainless steel available for higher corrosion resistance if required
- 304 stainless steel available for more aggressive water or chemical duty
- 316 stainless steel available for chloride or highly corrosive environments
Manufacturing Process
How the Part Is Made
- Material selection based on the customer's duty description
- Machining of the hex body and internal bore
- Inspection of thread accuracy and bore alignment
- Final spray pattern verification before packaging
- Packaging and shipment with protection against damage
Quality Control
What Is Checked Before It Ships
- Raw material is selected from brass, 303 stainless steel, 304 stainless steel, and 316 stainless steel
- Quality controlled at material selection, manufacturing, inspection, packaging, and transportation
- Every product is tested before it ships
- A 3 month quality guarantee is stated on the product listings
Customization
What Can Be Changed to Suit You
- Standard and non-standard nozzles can be made to customer drawing
- OEM orders accepted including custom marking
- Small volume orders accepted for trial or replacement use
- Samples can be ready within 10 days
- Trial samples can be sent free of charge
Comparison
How It Compares With the Alternatives
| Plastic body nozzle | Plastic bodies are lighter and more chemically resistant, but brass offers better mechanical strength and thermal stability in high vibration or temperature environments |
|---|---|
| Stainless steel hex body nozzle | Stainless steel provides better corrosion resistance, but brass is more cost-effective for low to moderate duty applications |
| Nozzle with filter | A filtered nozzle protects against clogging in dirty water lines, but the brass hex body version is intended for clean or pre-filtered service |
| Nozzle with adjustable spray pattern | Adjustable nozzles allow variable coverage, but the fixed brass hex body provides a consistent, non-adjustable pattern suitable for stable process conditions |
Use Guide
Fitting and Running It
- Confirm the thread size and standard (BSPT or NPT) matches the existing pipe before ordering
- Use a wrench on the hex body to install or remove the nozzle without damaging the thread
- Inspect the internal bore for debris or wear if spray pattern changes over time
- Ensure the nozzle is aligned so the spray hits the target surface evenly
- Do not use in high pressure or abrasive service where brass may erode quickly
- Replace if the body shows signs of deformation or the thread is damaged
Questions Buyers Ask
Brass Hex Body Spray Nozzle Questions
What is the body material of this nozzle?
The body is made of brass, with 303 stainless steel, 304 stainless steel, and 316 stainless steel available upon request for more aggressive duty.
Can I get a sample before placing a production order?
Yes. Trial samples can be sent free of charge, and samples can be ready within 10 days.
Do you accept OEM orders and small volume purchases?
Yes. Small volume orders are accepted, and standard or non-standard nozzles can be made to your drawing under an OEM order.
What is the quality guarantee for this product?
A 3 month quality guarantee is stated on the product listings. If a nozzle fails in service, send a photo and details of the operating conditions for assessment.
What thread sizes and standards are available?
Thread size and standard (BSPT or NPT) are confirmed on enquiry. The nozzle is designed for direct fit to standard pipe threads.
Is this nozzle suitable for chemical or high pressure service?
The brass body is suitable for moderate pressure and temperature water service. For chemical or high pressure duty, consider 303, 304, or 316 stainless steel versions.
What are your payment terms?
The product listings state T/T 100% in advance. Send the model, quantity, and destination port by email to confirm the terms for your order.
Go Deeper
Industries Guides and Ways to Order
Ask About Brass Hex Body Spray Nozzle
Send the liquid, the pressure at the nozzle and the thread on your header. Trial samples can be sent free of charge and samples can be ready within 10 days.
