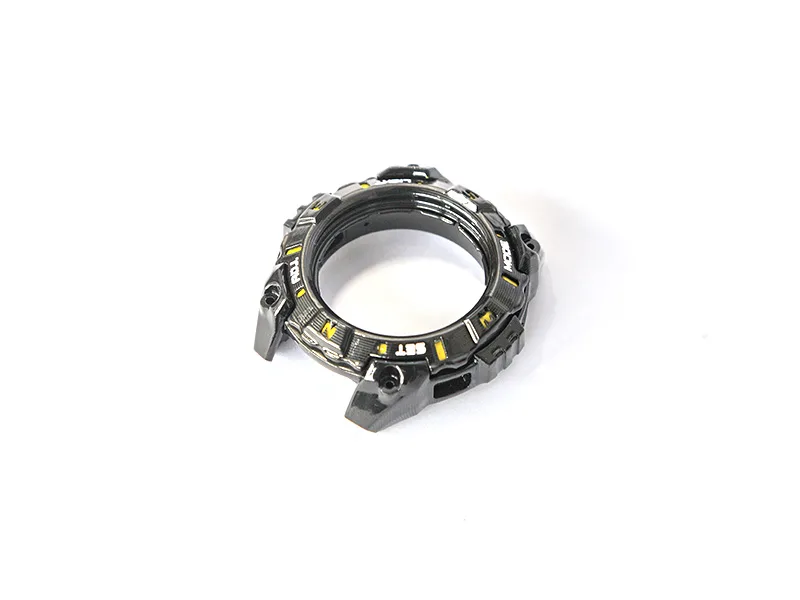

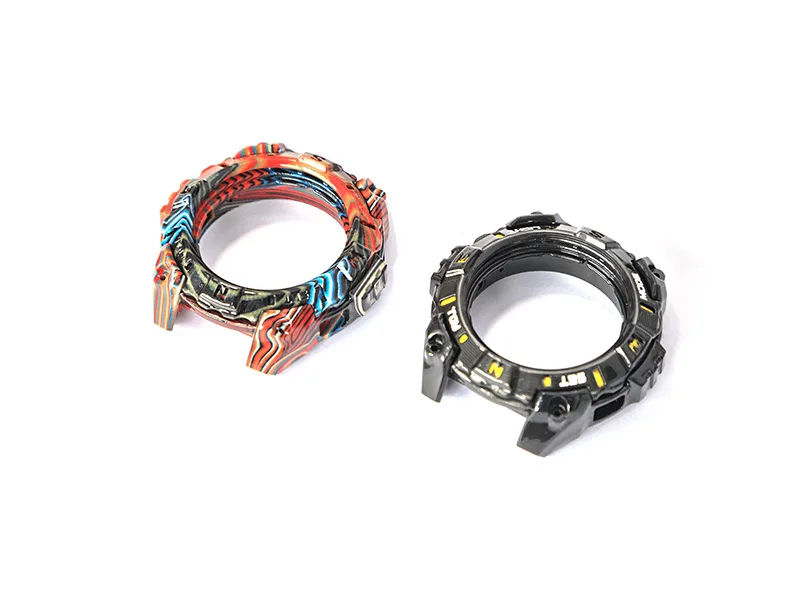

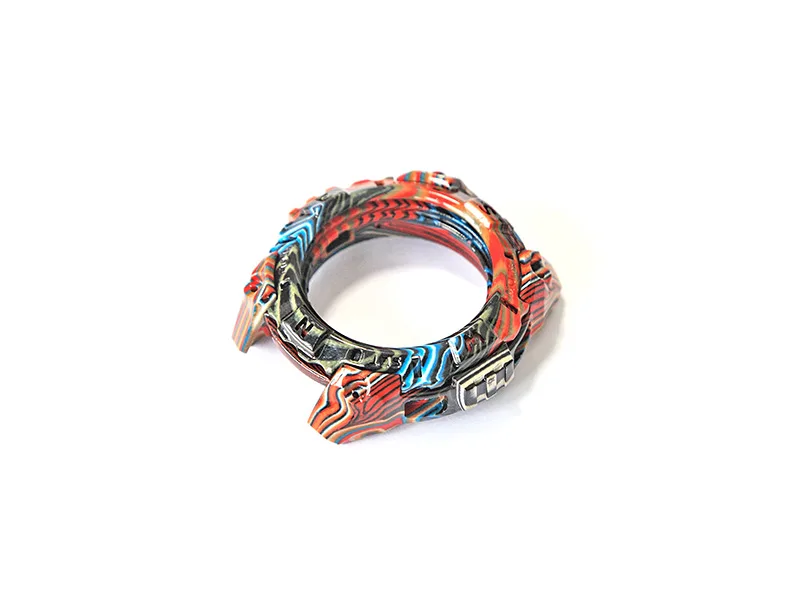

Carbon Fiber Watch Case
A 42 mm watch case in carbon fiber and glass fiber composite, finish machined on CNC so the bezel seat and case back threads stay dimensionally correct.
What This Part Is and Why It Exists
The case is produced in carbon fiber and glass fiber, finished as a CNC machined part. Combining the two fibres is deliberate: carbon carries the structure and the familiar dark weave, while glass fiber opens up colour in the same laminate, which is where microbrand watch design usually wants to go.
At 42 mm the case sits in the most common size band for a sports watch. Because the blank is machined rather than moulded to final shape, the lug faces, bezel seat and case back can be cut to the dimensions the movement and gasket set require.
Four Reasons Buyers Specify This Part
Machined, Not Just Moulded
CNC finishing gives the bezel seat and case back the dimensional control a watch assembly needs.
Carbon With Colour
Glass fiber in the laminate brings colour into a case that still reads as composite.
Light on the Wrist
Composite cases weigh a fraction of steel at the same size, which changes how a 42 mm watch wears.
Matched Components

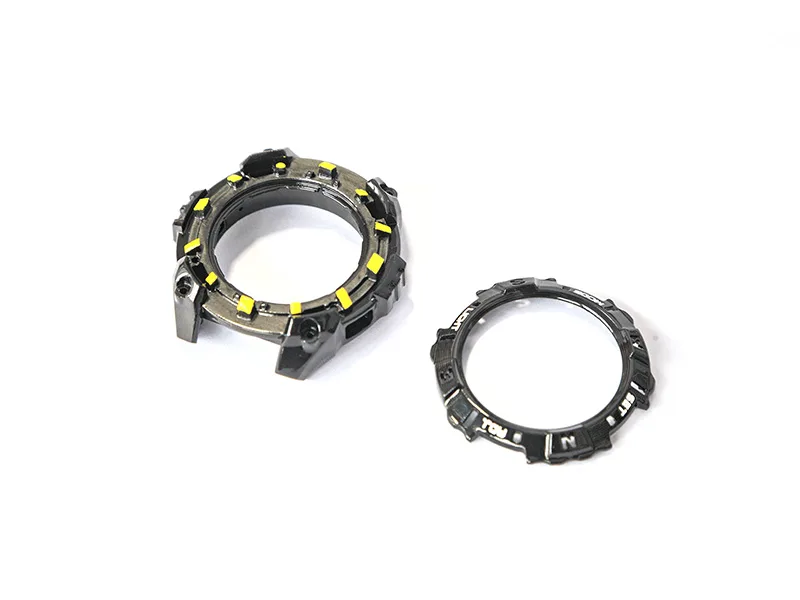

Bezels, rings and other watch parts are produced alongside the case body.
Where This Part Is Used
- Microbrand sports and dive watch cases
- Limited edition and collaboration models
- Bezels, rings and case backs in matching material
- Design studies evaluating composite against steel
Buyers This Part Was Made For
- Watch microbrands developing a composite model
- Case suppliers adding a composite line
- Designers experimenting with carbon and coloured glass fiber
Three Failure Modes This Part Removes
Steel is heavy at 42 mm
A large steel case wears heavily; composite keeps the presence without the mass.
Cut fibre at the lugs
Machining a composite blank without planning the weave leaves exposed fibre ends on visible faces.
Parts sourced separately
Case and bezel from different suppliers rarely seat correctly together.
Technical Data for Carbon Fiber Watch Case
Every value below is taken from the published CarbonWizer specification for this part. Anything not published is marked TBC rather than estimated.
| Product Name | Carbon fiber watch case |
| Material | Carbon fiber, glass fiber |
| Size | 42 mm |
| Style | CNC machined parts |
| Matching Parts | Bezels, rings and other watch accessories |
| Surface Finish | As machined; polished or matte on request |
| Water Resistance | TBC - determined by the customer's gasket and movement set |
| Certification | TBC - confirm in writing before order |
Technical Features
- Carbon fiber and glass fiber composite construction
- 42 mm case size
- CNC machined finishing
- Bezels and rings available as matching parts
- Weave orientation planned before machining
Materials
Carbon fiber for structure and surface, glass fiber where colour is wanted in the laminate. Both are composite materials CarbonWizer processes in house.
How This Part Is Made
Case drawing review
Drawing, load case and finish reviewed against the geometry.
Blank lay-up
Material, fibre architecture and process selected for the part.
Cure
The part is formed by the chosen composite or machining route.
CNC machining
Cure or finish machining brings the part to final geometry.
Finishing
Surface and edges finished to the agreed appearance.
Dimensional check
Dimensions checked against the drawing before despatch.
Quality Control
Machined features are checked against the case drawing. Visible faces are inspected for weave continuity, since exposed cut fibre is the usual failure mode on composite cases.
Certifications: No third-party certification records were published on the previous CarbonWizer site. Certification status for this part is marked TBC and is confirmed in writing before an order is placed.
What Can Be Changed
- Case diameter other than 42 mm
- Carbon only, or carbon with coloured glass fiber
- Bezel, ring and case back produced as a set
- Polished or matte finish
How It Compares
| Composite machined case | Light, distinctive and colourable; needs weave planning before machining |
| Stainless steel case | Fully proven and easy to seal, but noticeably heavier at the same size |
| Forged carbon case | Marbled random pattern with no two alike; less predictable cosmetically |
How to Specify and Order This Part
Send the case drawing with the movement, gasket and crystal specification, because those decide the machined seats. Say whether the visible weave should be aligned to the lugs or the bezel. Confirm whether glass fiber colour is wanted in the laminate.
Parts Often Specified Alongside This One
Carbon Fiber Gift Items
Wallets, money clips, card holders, pens and other consumer items in 3K carbon fiber, with specialised coating material where touch feel matters.
View details
Carbon Fiber Phone Case
Carbon fiber and forged carbon phone cases with a minimum thickness of 0.6 mm and a weight of 7.0 to 12.0 g, produced for iPhone 7 through iPhone XS Max.
View details
Carbon Fiber Gasket
A real carbon fiber gasket produced to a dimensional tolerance of plus or minus 0.01 mm, so it can form part of a small high-precision assembly rather than a loose fit-check.
View detailsRelated Cases and Technical Guides
Industrial and Electronics Parts
Industrial and electronics parts is one of the success case areas developed by the CarbonWizer team, covering wallets and key cases, signal transceivers, watch dials, motorcycle tail boxes, phone cases, headset caps, laptop cases and equipment containers.
Read the case
Plain Weave Twill and Forged Carbon Explained
Weave pattern and surface finish are the two decisions buyers argue about most, and they affect appearance far more than structure. Here is what each one actually is.
Read the guide
Machining Carbon Fiber Plate and Tube to Print
Stock plate and tube become finished parts through CNC milling or waterjet cutting. What you mark on the drawing decides whether the result looks engineered or unfinished.
Read the guideQuestions About Carbon Fiber Watch Case
What size is the case?
The case shown is 42 mm. Other diameters are machined to your drawing.
What material is used?
Carbon fiber and glass fiber. The glass fiber allows colour in a laminate that otherwise reads as carbon.
Is the case moulded or machined?
It is a CNC machined part, which is what gives the bezel seat and case back their dimensional control.
Can you supply bezels and rings too?
Yes. Watch bezels, rings and other accessories are produced alongside case bodies.
Quote Carbon Fiber Watch Case for Your Project
Email the drawing or the part number with the quantity and finish you need. Samples are normally despatched within one week.
