Carbon Fiber Sheet

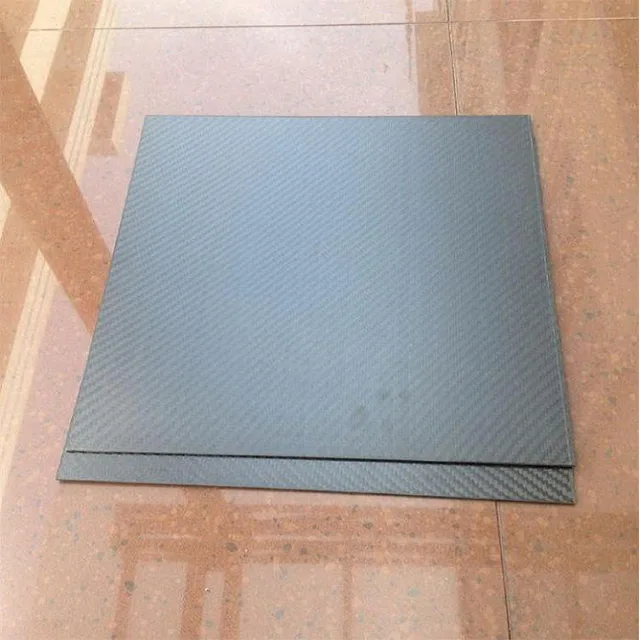

Stock carbon fiber plates fabricated from multiple layers of high strength prepreg under high pressure moulding, in ten thicknesses from 0.5 mm to 5.0 mm at 500 x 400 mm.
What This Part Is and Why It Exists

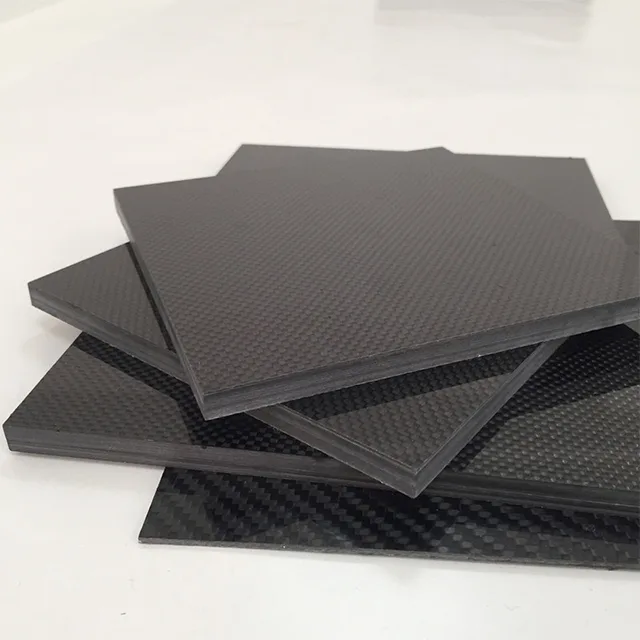

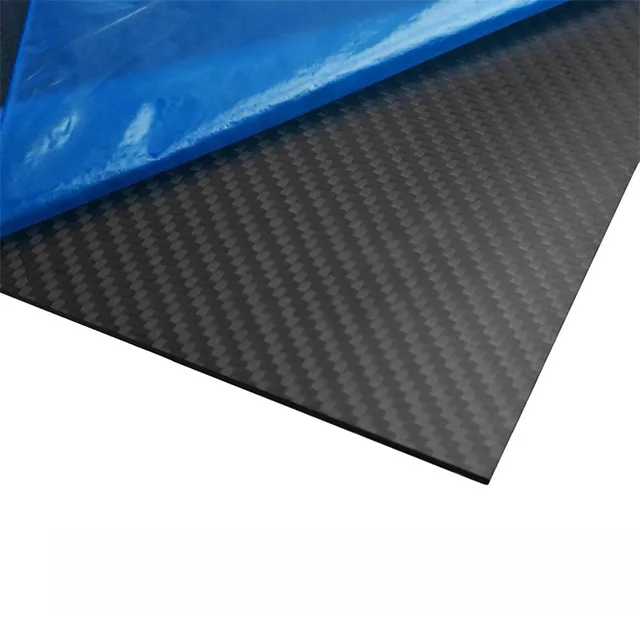

Stock carbon fiber plates are fabricated with multiple layers of high strength carbon fiber prepreg using a high pressure moulding process. Every plate shares the same construction: the outer material is 2 x 2 twill carbon fiber prepreg and the inner material is 0/90 balanced unidirectional carbon fiber prepreg, finished matte on both faces.
That construction is the reason the plate behaves predictably. A twill skin gives the surface its appearance and handles the outer fibres, while the balanced unidirectional core carries load equally along both axes, so a bracket cut from the plate does not have a weak direction the designer did not expect.

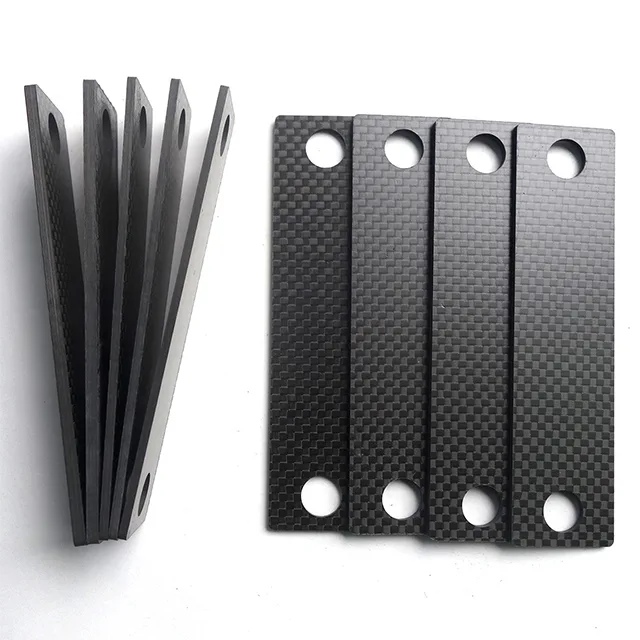

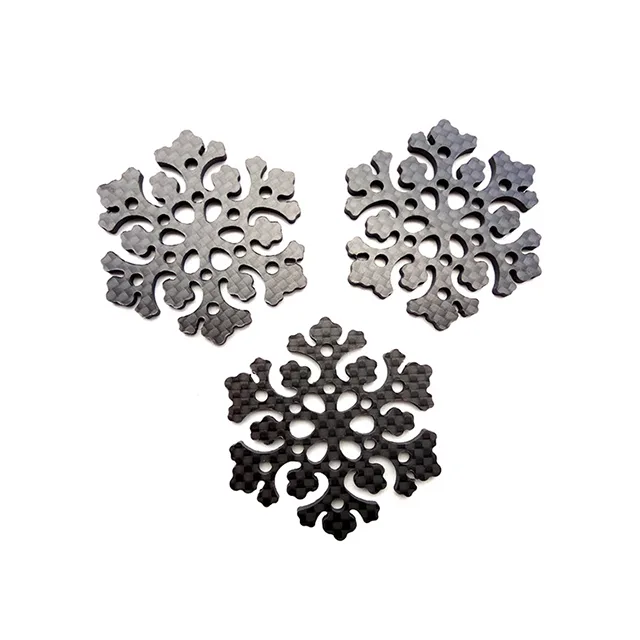

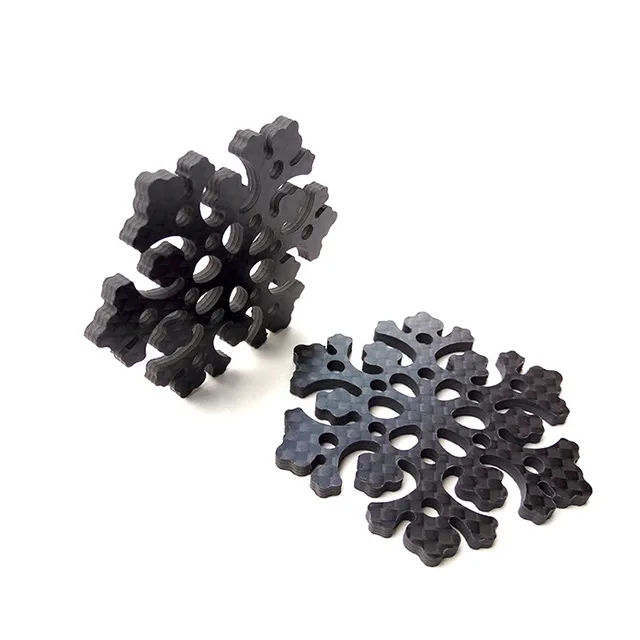

Plates can be cut to size or machined to print by CNC milling or waterjet cutting, which means a stock sheet can become a finished part without a mould.
Four Reasons Buyers Specify This Part
Ten Thicknesses in Stock
0.5 mm through 5.0 mm in 0.5 mm steps, all at 500 x 400 mm, so the stiffness target can be met without a custom lay-up.
Balanced Core, Twill Skin
2 x 2 twill outer over a 0/90 balanced unidirectional core gives predictable properties in both axes.
Machined to Print
Cut to size or machined by CNC milling or waterjet, so a stock sheet becomes a finished bracket or plate.
No Tooling Required
Flat parts skip the mould entirely, which removes the largest fixed cost from a small programme.
Where This Part Is Used
- Drone centre plates, arm plates and camera mounts
- Robotic end effector plates and machine guards
- Instrument chassis panels and stiffening plates
- Sports and equipment components cut from flat stock
Buyers This Part Was Made For
- Design engineers needing predictable flat composite stock
- Machine shops cutting their own profiles
- UAV and robotics builders ordering repeat plate profiles
Three Failure Modes This Part Removes
Unknown lay-up
Plate bought on thickness alone can behave very differently in one axis; a stated 0/90 balanced core removes that surprise.
Tooling cost for flat parts
Paying for a mould to make a flat plate is money spent on nothing the geometry needs.
Inconsistent repeat orders
Ordering to a fixed part number keeps the second batch the same as the first.
Technical Data for Carbon Fiber Sheet
Every value below is taken from the published CarbonWizer specification for this part. Anything not published is marked TBC rather than estimated.
| Outer Material | 2 x 2 twill carbon fiber prepreg |
| Inner Material | 0/90 balanced unidirectional carbon fiber prepreg |
| Exterior Finish | Matte / matte |
| Moulding Process | High pressure moulding |
| Stock Thickness | 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5 and 5.0 mm |
| Stock Sheet Size | 500 x 400 mm |
| Type | Std-Mod |
| Machining | CNC milling or waterjet cutting to print |
| Certification | TBC - confirm in writing before order |
Technical Features
- High pressure moulded from multiple prepreg layers
- Outer material 2 x 2 twill carbon fiber prepreg
- Inner material 0/90 balanced unidirectional carbon fiber prepreg
- Matte on matte exterior finish
- Ten stock thicknesses, 0.5 mm to 5.0 mm
- Cut to size or machined to print by CNC milling or waterjet cutting
Materials
High strength carbon fiber prepreg in two roles - 2 x 2 twill on the outside for the surface and the outer fibres, 0/90 balanced unidirectional on the inside to carry load in both axes.
| P/N | Thickness | Width | Length | Type | Exterior Material | Finish |
|---|---|---|---|---|---|---|
| CT-0.5-500400 | 0.5 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-1.0-500400 | 1.0 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-1.5-500400 | 1.5 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-2.0-500400 | 2.0 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-2.5-500400 | 2.5 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-3.0-500400 | 3.0 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-3.5-500400 | 3.5 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-4.0-500400 | 4.0 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-4.5-500400 | 4.5 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
| CT-5.0-500400 | 5.0 mm | 500 mm | 400 mm | Std-Mod | 3K Twill Fabric | Matte / Matte |
How This Part Is Made
Prepreg lay-up
Drawing, load case and finish reviewed against the geometry.
High pressure moulding
Material, fibre architecture and process selected for the part.
Cure
The part is formed by the chosen composite or machining route.
Trim to size
Cure or finish machining brings the part to final geometry.
CNC milling or waterjet
Surface and edges finished to the agreed appearance.
Edge finishing
Dimensions checked against the drawing before despatch.
Quality Control
Plates are produced to the stated stock thickness and sheet size. Machined profiles are cut to the supplied drawing and checked before despatch.
Certifications: No third-party certification records were published on the previous CarbonWizer site. Certification status for this part is marked TBC and is confirmed in writing before an order is placed.
What Can Be Changed
- Cut to any size within the 500 x 400 mm sheet
- Profiles machined to print by CNC milling or waterjet cutting
- Thickness selected for the stiffness target
- Custom lay-ups quoted where stock construction does not suit
How It Compares
| 3K twill plate over 0/90 UD core | Balanced properties in both axes with a finished twill surface; the default for structural flat parts |
| Fully woven plate | Simpler to make but less efficient; more fibre is doing nothing useful at the neutral axis |
| Aluminium plate | Easier to machine and cheaper per sheet, but far heavier for the same bending stiffness |
How to Specify and Order This Part
Choose thickness from the stiffness you need rather than the strength - flat composite parts almost always fail a deflection requirement before a strength one. Send a DXF for machined profiles and mark which edges are cosmetic, since exposed cut edges show the core.
Parts Often Specified Alongside This One
Carbon Fiber Tube
High strength carbon fiber tubing fabricated with unidirectional prepreg and wrapped in 3K plain or twill fabric, in fifteen stock part numbers from 5.0 mm to 242.0 mm nominal inside diameter.
View details
Carbon Fiber Drone Parts
Frames, arms, plates and propellers in carbon fiber composite, which cut roughly 40 per cent of the weight against traditional materials and directly extend flight duration.
View details
Carbon Fiber Gasket
A real carbon fiber gasket produced to a dimensional tolerance of plus or minus 0.01 mm, so it can form part of a small high-precision assembly rather than a loose fit-check.
View detailsRelated Cases and Technical Guides
Carbon Fiber Drone Parts Programme
Carbon fiber drone parts is one of the success case areas developed by the CarbonWizer team, spanning six-rotor and four-rotor airframes, aerial and police drone platforms.
Read the case
Industrial and Electronics Parts
Industrial and electronics parts is one of the success case areas developed by the CarbonWizer team, covering wallets and key cases, signal transceivers, watch dials, motorcycle tail boxes, phone cases, headset caps, laptop cases and equipment containers.
Read the case
How to Choose Carbon Fiber Plate Thickness
Stock plate runs from 0.5 mm to 5.0 mm in 0.5 mm steps. Choosing between them is a stiffness calculation, not a strength one - and the lay-up matters as much as the number.
Read the guide
Machining Carbon Fiber Plate and Tube to Print
Stock plate and tube become finished parts through CNC milling or waterjet cutting. What you mark on the drawing decides whether the result looks engineered or unfinished.
Read the guideQuestions About Carbon Fiber Sheet
What is the plate actually made of?
Every stock plate uses 2 x 2 twill carbon fiber prepreg as the outer material over a 0/90 balanced unidirectional carbon fiber prepreg core, with a matte finish on both faces.
Which thicknesses are held in stock?
Ten thicknesses from 0.5 mm to 5.0 mm in 0.5 mm steps, all in 500 x 400 mm sheets.
Can you machine the plate to my drawing?
Yes. Plates can be cut to size or machined to print by CNC milling or waterjet cutting.
How are the plates made?
They are fabricated with multiple layers of high strength carbon fiber prepreg using a high pressure moulding process.
Quote Carbon Fiber Sheet for Your Project
Email the drawing or the part number with the quantity and finish you need. Samples are normally despatched within one week.
