Carbide Strips
Tungsten Carbide Strips and Flat Blanks
Standard 330 mm strips and long strips up to 1800 mm in one piece
- One piece long edges. Lengths up to 1800 mm avoid butt joints along a long knife or wear edge.
- Ground or unground. Choose ground faces when the brazing seat has to be exact or unground blanks when you finish in house.
- Stock section flexibility. Width and thickness are produced against your section drawing.
Product Overview
Overview
Tungsten carbide strips are flat blanks used as planing knives cutting edges wear plates and as raw stock for blades and cutters. Our standard strip length is 330 mm and the maximum length we can make is 1800 mm which removes the joints from long knife and wear edges.
Application Scenarios
- Wood planing and moulding knives
- Paper board and film slitting edges
- Wear plates and guide rails on conveying equipment
- Blank stock for brazed tooling
Problems It Solves
- Long wear edges have to be joined from short pieces which creates weak seams
- Steel knife edges round off and leave a torn rather than a cut surface
- Strip cross sections that are not ground true cause uneven brazing gaps
Key Benefits
Why Customers Specify This Product
One piece long edges
Lengths up to 1800 mm avoid butt joints along a long knife or wear edge.
Ground or unground
Choose ground faces when the brazing seat has to be exact or unground blanks when you finish in house.
Stock section flexibility
Width and thickness are produced against your section drawing.
Base stock for blades
The same strips feed our own blade and cutter production.
Technical Features
Materials
Technical Features
- Standard length 330 mm
- Maximum length 1800 mm in one piece
- Rectangular cross sections to drawing
- Ground or as sintered faces
Material and Grade
Cemented tungsten carbide consisting of tungsten carbide grain in a cobalt binder. Binder content and grain size are chosen against your load case because hardness and toughness move in opposite directions. Our engineers propose a direction and explain the trade off rather than quoting a grade code you cannot verify. See the grade guide.
Specifications
Specification Sheet
| Product form | Flat rectangular strip blank |
|---|---|
| Standard length | 330 mm |
| Maximum length | 1800 mm |
| Material | Cemented tungsten carbide (WC with cobalt binder) |
| Densification | Sinter-HIP |
| Cross section | Width and thickness to drawing |
| Surface condition | As sintered or ground |
Dimensions tolerances and grade are confirmed on the approved drawing before production. Figures that are not listed here were not published by the factory and will be confirmed with your enquiry.
How It Is Made
Manufacturing Process and Quality Control
Every part follows the same production route. Critical dimensions are agreed on the drawing so both sides measure the same thing.
1. Powder PreparationBall milling and spray drying to a uniform granulate
2. PressingBlank pressed with machining stock where required
3. Sinter-HIPDensified under isostatic pressure to reduce porosity
4. MachiningGrinding EDM and lapping to the approved drawing
5. InspectionCritical dimensions checked before packing
6. Export PackingProtected packing for air or sea freight
Certifications
Certificate copies and material documentation are supplied on request with your order. We do not publish certificate claims that we cannot show you so ask for exactly what your import or QA process requires and we will confirm what can be provided.
Customization Options
- Dimensions to your drawing
- Grade direction matched to the load case
- Surface condition as sintered ground or lapped
- Part marking on request
- Packing adapted to air or sea freight
Compared With Other Options
- Versus hardened tool steel — far better wear resistance but more brittle so mounting matters
- Versus other carbide in this range — see the related products below for the closest alternative form
- Versus a fabricated assembly — a one piece carbide part removes joints and alignment work
Use Guide
Fitting and Service Guide
- Check the seat is clean and undamaged before fitting. Uneven support is the most common cause of early failure.
- Use even pressure. Never drive a carbide part into a holder by impact.
- Follow the interference fit agreed on the drawing rather than adjusting the carbide.
- Store parts separated and supported. Carbide chips carbide when parts knock together.
- Log the run time achieved so replacement becomes planned maintenance.

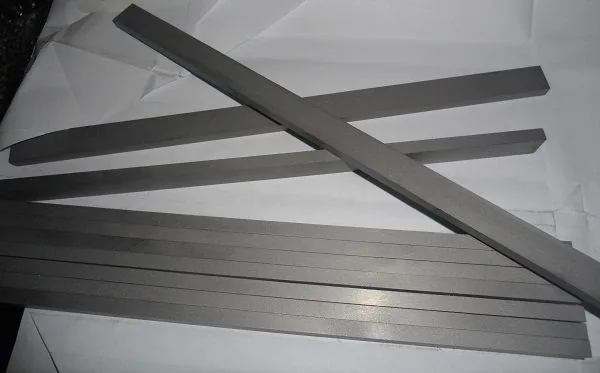

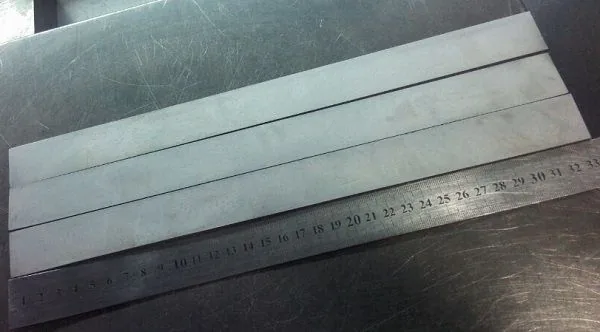

Photographs of carbide strips and related parts from our own production.
Related
All Product Categories
Related Products
Related Reading
Related Application Case and Guide
Wood and Metal Cutting
Saw tips inserts rods and blades
Read MoreCarbide Sleeve With 176 Holes
A carbide sleeve of OD 268 mm x ID 228.6 mm x H 160 mm carrying 176 holes produced for oil field service equip…
Read MoreTungsten Carbide Grade Guide
How cobalt content and grain size move hardness against toughness and how to describe your application so a su…
Read More
FAQ
Carbide Strips FAQ
What is the longest carbide strip you can produce?
The standard length is 330 mm and the maximum length we can make is 1800 mm. Longer edges are covered by joining several pieces which we will discuss before you order.
Do you supply strips ground on all faces?
Tell us which faces matter. Strips can be supplied as sintered or ground on the faces that form the brazing seat and the cutting edge.
Can you cut strips into finished blades?
Yes. Strips are the base stock for our own carbide blades and cutters so a strip order can continue into finished blade production.
Next Step
Request a Quotation for Carbide Strips
Send the drawing quantity and application. If you only have a worn sample send photos with measured dimensions and we will prepare a drawing for your approval.
Send a drawing or a sample photo on WhatsApp or by email. Files are reviewed by our production engineers, not by a form.
