Carbide Blades
Tungsten Carbide Blades and Machine Cutters
Straight knives profiled cutters and marked repeat blades to drawing
- Longer runs between changes. Carbide edges hold their geometry far longer than steel on abrasive board filled plastics and composite panels.
- Made to your drawing. Hole positions bevel angles and part marking are reproduced so a repeat order drops straight into the machine.
- Clean cut quality. A sharp stable edge cuts rather than smears which protects the surface finish of the product.
Product Overview
Overview
All kinds of tungsten carbide blades and cutters for converting lines wood working machines and light metal cutting. Blades are produced from our own carbide strip and blank stock then ground to the cutting geometry mounting holes and marking shown on your drawing.
Application Scenarios
- Paper board and corrugated converting lines
- Plastic film and sheet trimming
- Wood panel sizing and moulding
- Light metal and foil cutting stations
Problems It Solves
- Blade changes stop the converting line several times per shift
- Steel knives smear the cut on abrasive board and filled plastics
- Reground blades lose concentricity and the cut edge starts to wander
Key Benefits
Why Customers Specify This Product
Longer runs between changes
Carbide edges hold their geometry far longer than steel on abrasive board filled plastics and composite panels.
Made to your drawing
Hole positions bevel angles and part marking are reproduced so a repeat order drops straight into the machine.
Clean cut quality
A sharp stable edge cuts rather than smears which protects the surface finish of the product.
From strip to finished blade
Strip production grinding and inspection happen in the same plant.
Technical Features
Materials
Technical Features
- Straight profiled and bored blade shapes
- Ground cutting edges with agreed bevel angle
- Mounting holes and counterbores to drawing
- Optional part marking for repeat identification
Material and Grade
Cemented tungsten carbide consisting of tungsten carbide grain in a cobalt binder. Binder content and grain size are chosen against your load case because hardness and toughness move in opposite directions. Our engineers propose a direction and explain the trade off rather than quoting a grade code you cannot verify. See the grade guide.
Specifications
Specification Sheet
| Product form | Machine knife cutter or blade |
|---|---|
| Material | Cemented tungsten carbide (WC with cobalt binder) |
| Blank source | Our own carbide strip and pressed blanks |
| Edge | Ground to drawing bevel |
| Holes and slots | To drawing |
| Marking | Optional customer marking |
| Packing | Edge protected export packing |
Dimensions tolerances and grade are confirmed on the approved drawing before production. Figures that are not listed here were not published by the factory and will be confirmed with your enquiry.
How It Is Made
Manufacturing Process and Quality Control
Every part follows the same production route. Critical dimensions are agreed on the drawing so both sides measure the same thing.
1. Powder PreparationBall milling and spray drying to a uniform granulate
2. PressingBlank pressed with machining stock where required
3. Sinter-HIPDensified under isostatic pressure to reduce porosity
4. MachiningGrinding EDM and lapping to the approved drawing
5. InspectionCritical dimensions checked before packing
6. Export PackingProtected packing for air or sea freight
Certifications
Certificate copies and material documentation are supplied on request with your order. We do not publish certificate claims that we cannot show you so ask for exactly what your import or QA process requires and we will confirm what can be provided.
Customization Options
- Dimensions to your drawing
- Grade direction matched to the load case
- Surface condition as sintered ground or lapped
- Part marking on request
- Packing adapted to air or sea freight
Compared With Other Options
- Versus hardened tool steel — far better wear resistance but more brittle so mounting matters
- Versus other carbide in this range — see the related products below for the closest alternative form
- Versus a fabricated assembly — a one piece carbide part removes joints and alignment work
Use Guide
Fitting and Service Guide
- Check the seat is clean and undamaged before fitting. Uneven support is the most common cause of early failure.
- Use even pressure. Never drive a carbide part into a holder by impact.
- Follow the interference fit agreed on the drawing rather than adjusting the carbide.
- Store parts separated and supported. Carbide chips carbide when parts knock together.
- Log the run time achieved so replacement becomes planned maintenance.

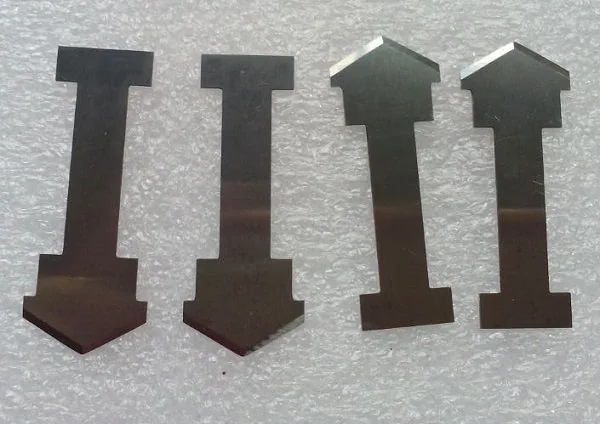

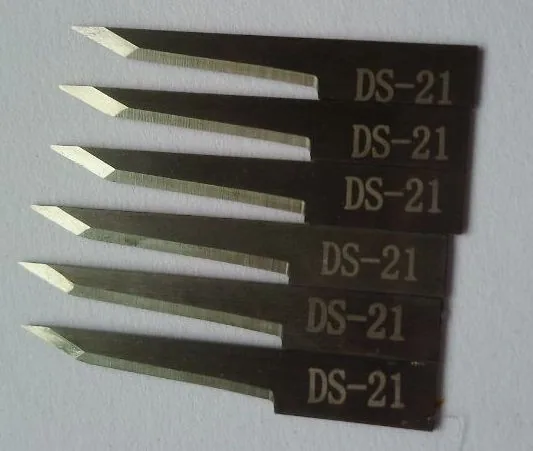

Photographs of carbide blades and cutters and related parts from our own production.
Related Reading
Related Application Case and Guide
Paper Printing and Packaging
Knives blades and slitting tools
Read MoreCarbide Strips up to 1800 mm
Carbide strip production where the standard length is 330 mm and the maximum length produced in one piece is 1…
Read MoreTungsten Carbide Grade Guide
How cobalt content and grain size move hardness against toughness and how to describe your application so a su…
Read More
FAQ
Carbide Blades and Cutters FAQ
Can you copy a worn blade if I do not have a drawing?
Send clear photos with a ruler or calipers in the frame on WhatsApp and give us the key dimensions. We will produce a drawing for your approval before cutting any material.
Do you mark blades with our own part number?
Yes. Marking is available so the operator can identify the blade on the machine and reorder the same item.
Which materials are carbide blades suitable for?
They are used on abrasive materials such as board filled plastics laminates and panels where steel edges round off quickly. Tell us the material and cutting speed and we will comment on suitability.
Next Step
Request a Quotation for Carbide Blades and Cutters
Send the drawing quantity and application. If you only have a worn sample send photos with measured dimensions and we will prepare a drawing for your approval.
Send a drawing or a sample photo on WhatsApp or by email. Files are reviewed by our production engineers, not by a form.
