Factory photograph of ss316 tapping screws. Finishes shown are examples — all fifteen catalogue finishes are available on this item.
SS316 Tapping Screws
SS316 self-tapping screws. A self-tapping screw cuts or forms its mating thread inside a pre-drilled hole; most carry an awl point that starts the thread as it enters. Made to ANSI, IFI, DIN, ISO, BS, JIS or your drawing.
- M0.8 – M42
- 2mm – 3000mm
- 316 stainless — the molybdenum grade for chloride exposure
- Machine thread or wide thread; awl point standard
- ANSI, IFI, DIN, ISO, BS, JIS or customer drawing
Specification
- Item code
- BF-166
- Product group
- Stainless Steel Self Tapping Screws
Item code BF-166 follows our internal catalogue reference — quote it and we know exactly which line you mean. Figures shown are the specification range this item is made to, not a stock list.
Selection options
Every option below can be specified against this item. Head and drive are chosen independently of each other, and of the point and thread form.
| Head types | Options |
|---|---|
| Available | Flat · Pan · Hex washer head · Hex washer flange · Bugle · Wafer · Pan washer · Oval · Flower · Truss · Round |
| Drive types | Options |
|---|---|
| Available | Phillips · Square · Pozidriv · Square + Phillips · Torx · Slotted · Phillips + slotted |
| Point types | Options |
|---|---|
| Available | TEK#1 · TEK#2 · TEK#3 · TEK#4 · TEK#5 · Type 17 |
| Thread forms | Options |
|---|---|
| Available | Type-A · BSB · CSB · Hi-low · Machine · Double |
| Surface finishes | Options |
|---|---|
| Available | Plain · Zinc plated · Colour zinc · Blue zinc · White zinc · Black zinc · Black phosphate · Grey phosphate · Black oxide · Dacrotized · Ruspert · Xylan · Nickel · Bronze · Spray paint |
| Additional requests | Options |
|---|---|
| Available | Serration under head · Without washer · With bonded washer · With PVC washer · With steel + EPDM washer · With rubber washer · With head mark · With wing · Slotted + wing |
Questions we get asked about this item
What makes 316 different from 304?
Molybdenum. It is what lets 316 resist pitting in chloride — sea air, pool halls, de-icing salt — where 304 will eventually pit.
Do these need a pre-drilled hole?
Yes. A self-tapping screw forms the thread but does not drill the hole. If you want one operation, use a self-drilling screw.
Also in Stainless Steel Self Tapping Screws
See all

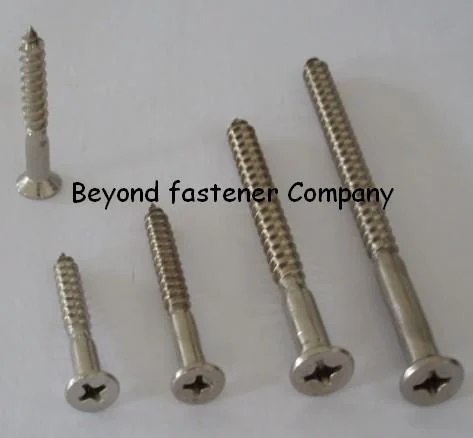

Stainless Steel Wood Screws
Stainless steel wood screws.
View specification
Longer Hex Washer Head Tek Screws
Long hex washer head self-drilling screws in yellow zinc, for fixings that have to reach through insulation or a build-up of layers
View specification
Pan Framing Tek Screws
Pan framing self-drilling screws — the screw used for light gauge steel framing, where studs and tracks have to be joined quickly an
View specification
Truss Tek Screws
Truss head self-drilling screws with a washer face, supplied zinc plated.
View specificationRelated reading: self drilling vs self tapping · finishes and salt spray · materials and property classes
Quote SS316 Tapping Screws
Send diameter, length, head, drive, material, finish and quantity. If the combination you need is not on the standard matrix, send a drawing instead.
