Paper Bubble Machine
Paper bubble machine produces continuous rolls of paper pads with concave and convex surfaces for cushioning, using fanfold or roll paper. The machine runs at 10 m/min and creates bubbles with 12 mm diameter and 5 mm height, providing protection for fragile items during shipping and storage. It operates on 110 / 220V, 50-60Hz power and is designed for desktop use in packaging lines, e-commerce fulfilment, and warehouse operations.
- Produces paper pads on demand so pre-formed void fill does not occupy warehouse space
- One-button start enables fast setup and minimal operator training
- Runs at 10 m/min to match manual packing line speeds without slowing production
- Creates consistent 12 mm diameter bubbles with 5 mm height for reliable cushioning
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Produces paper pads on demand so pre-formed void fill does not occupy warehouse space
- One-button start enables fast setup and minimal operator training
- Runs at 10 m/min to match manual packing line speeds without slowing production
- Creates consistent 12 mm diameter bubbles with 5 mm height for reliable cushioning
- Uses standard fanfold or roll paper so material sourcing is simple and cost-effective
- Compact size fits on a bench or in a small packing station without dedicated floor space
Where It Is Used
- Filling voids in cartons containing electronics or small consumer goods
- Protecting glass bottles and jars during e-commerce shipping
- Cushioning fragile components in spare parts kits or hardware shipments
- Wrapping individual items in cartons to prevent surface scratches or impacts
- Providing cushioning in large or irregularly shaped packages where foam is not suitable
Who It Is For
- E-commerce fulfilment centres with mixed SKUs and variable carton sizes
- Third-party logistics warehouses needing on-demand void fill without storage
- Exporters shipping fragile goods in FCL and LCL containers using paper-based solutions
- Manufacturers of ceramics, cosmetics, and small electronics that require lightweight protection
Problems It Solves
- Pre-formed paper pads take up storage space that could hold saleable inventory
- Hand-cut paper or loose fill migrates in transit and leaves products unprotected
- Manual folding and cutting of paper slows down packing lines and increases labour cost
- Over-packaged cartons attract dimensional freight charges on courier and air shipments
- Plastic-based void fill is not acceptable for buyers with zero-plastic or recyclable packaging goals
Technical Features
- Desktop machine with 110 / 220V, 50-60Hz power supply and 120W consumption
- Operates at 10 m/min to match standard packing line speeds
- Creates bubbles with 12 mm diameter and 5 mm height for consistent cushioning
- Supports fanfold or roll paper with width up to 30 cm and weight from 80 to 160 g
- Standard paper weight is 80 g, 300 m per roll, suitable for continuous production
- Compact dimensions: 45 x 26 x 27 cm, fits on bench or in small packing stations
Published Data for Paper Bubble Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Paper bubble machine |
|---|---|
| Power Supply | 110 / 220V, 50-60Hz |
| Power Consumption | 120W |
| Speed | 10 m/min |
| Bubble Diameter | 12 mm |
| Bubble Height | 5 mm |
| Paper Width | 30 cm |
| Paper Weight Range | 80 - 160 g |
| Standard Paper Weight | 80 g |
| Paper Roll Length | 300 m per roll |
| Machine Dimensions | 45 x 26 x 27 cm |
| Net Weight | 25 kg |
| Gross Weight | 26 kg |
| Packaging Size | 60.5 x 36 x 37.5 cm |
Materials
- Fanfold or roll paper with 80 g standard weight, 300 m per roll
- Paper with 80 to 160 g weight range, suitable for different cushioning needs
- No plastic components in the final pad; all material is paper-based
How It Is Made
Paper fed from fanfold or roll into the machine
Machine forms concave and convex surfaces to create bubble pattern
Heat and pressure seal the paper to form sealed, air-filled bubbles
Continuous roll output at 10 m/min for on-demand production
Finished paper pads stored flat or used directly in packing
How It Is Checked
Incoming paper checked for correct weight and roll length before feeding
Seal integrity tested during production to ensure bubbles do not leak
Bubble size and height verified during initial run and at intervals
Machine speed and power draw monitored to maintain consistent output
Final machine inspected before packaging to confirm all components are present
Customisation Options
- Adjustable bubble pattern for different cushioning needs
- Support for paper rolls or fanfold paper of various weights
- Custom paper width available on request, up to 30 cm
- Machine can be configured for different paper roll diameters
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Manual paper folding | Machine produces consistent pads at 10 m/min, eliminating variation and labour cost |
|---|---|
| Plastic air pillows | Paper pads are fully recyclable and meet zero-plastic packaging requirements |
| Foam inserts | No tooling or inventory required; pads made on demand with no waste |
| Pre-formed paper pads | No storage space needed for finished pads; production happens at the point of use |
How to Use It
Place the paper roll or fanfold paper into the machine feed slot
Press the one-button start to begin production
Adjust the machine to match the paper width and weight for optimal bubble formation
Collect the finished paper pad roll and use it immediately for packing
Store unused paper rolls flat and away from moisture or direct heat

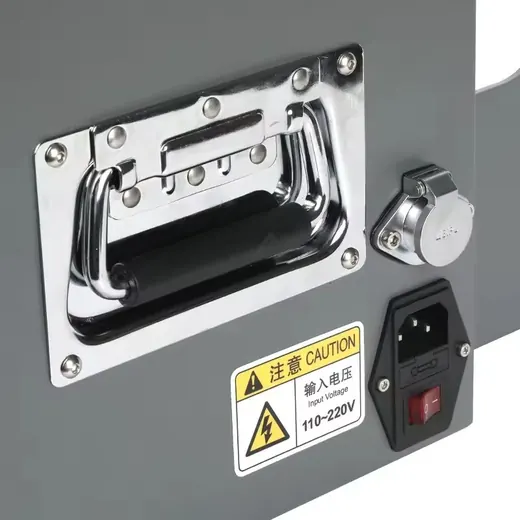

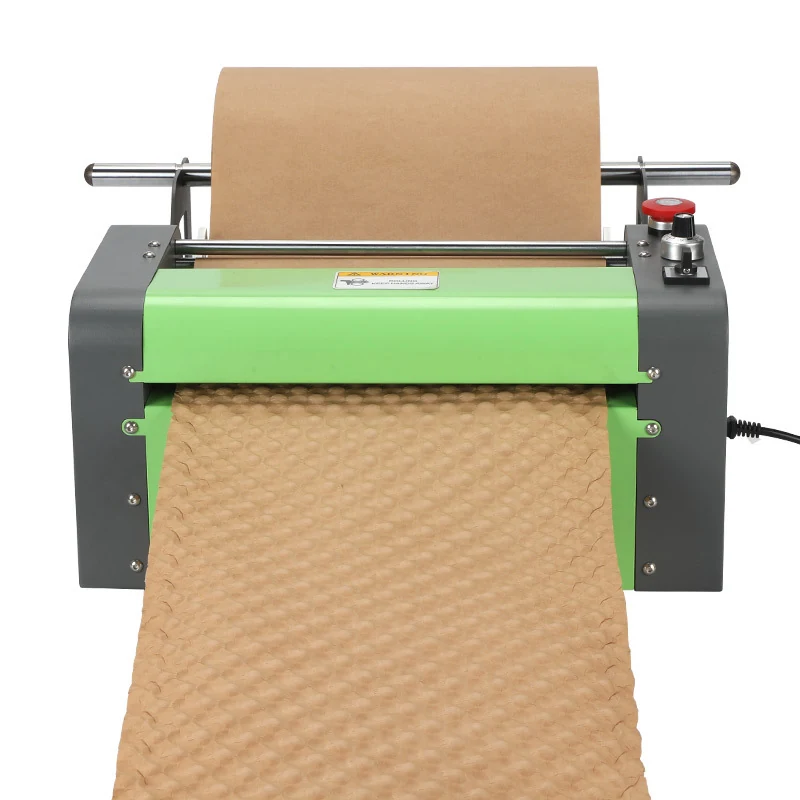

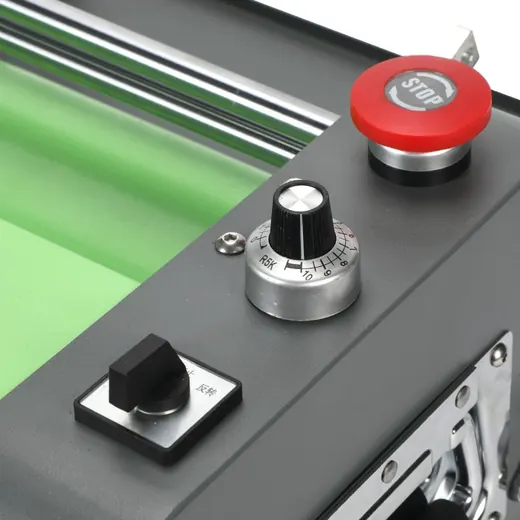

Paper Bubble Machine in Detail
Photographs of the actual product as supplied, not renders.
Paper Bubble Machine Questions
What is the minimum order quantity for the paper bubble machine
The machine is sold as a single unit. No minimum order quantity applies.
What paper types can this machine use
The machine accepts fanfold or roll paper with width up to 30 cm and weight between 80 and 160 g. Standard is 80 g, 300 m per roll.
Can I use thicker paper for stronger cushioning
Yes, paper up to 160 g is supported. Thicker paper increases cushioning but may affect machine speed.
How much space does the machine need
The machine measures 45 x 26 x 27 cm, so it fits on a standard bench or packing station.
