Kraft Paper Cushion Machine

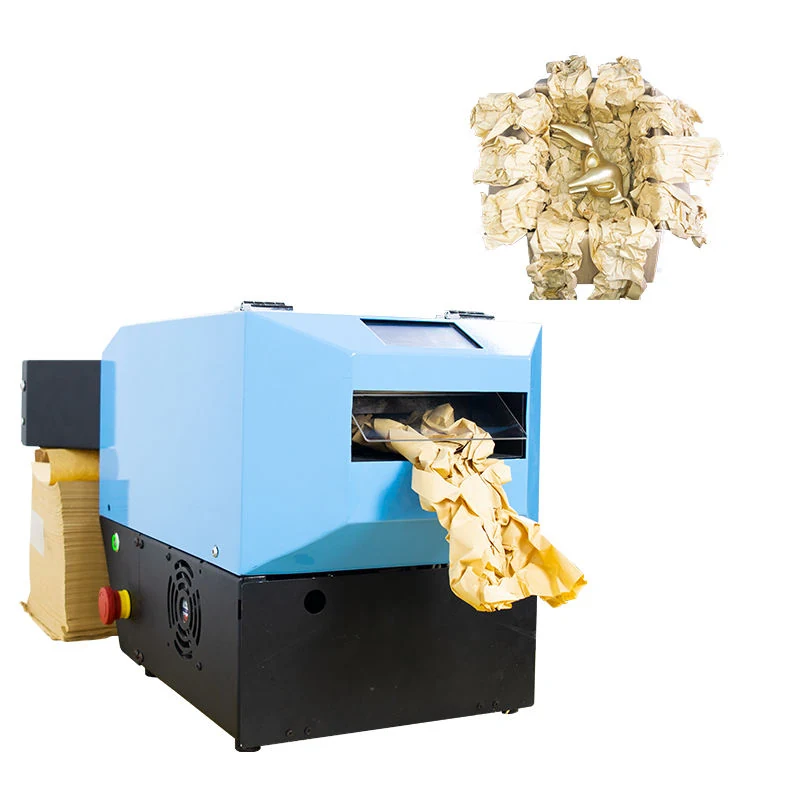

Kraft paper cushion machine is a desktop or mobile unit that forms crumpled paper cushions on demand from fanfold paper. One machine replaces manual folding and cutting, so packers create custom void fill in seconds without pre-storing bulky inserts. The machine heats and crumples paper into a soft, protective layer that conforms to irregular shapes and stays in place during transit.
- Forms paper cushions on demand so no pre-made inserts need to be stored
- One-touch start with touch screen interface reduces training time and operator error
- Cushions are formed in seconds and match the exact void size in the carton
- Uses both recycled and virgin kraft paper to meet different sustainability targets
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Forms paper cushions on demand so no pre-made inserts need to be stored
- One-touch start with touch screen interface reduces training time and operator error
- Cushions are formed in seconds and match the exact void size in the carton
- Uses both recycled and virgin kraft paper to meet different sustainability targets
- Compact size fits on a packing bench or moves between workstations
- 12 m/min speed keeps up with manual packing lines without slowing down
Where It Is Used
- Creating custom paper cushions for electronics shipped in small to medium cartons
- Protecting glass bottles and jars in e-commerce fulfilment with on-demand fill
- Filling irregular voids around ceramic or homeware items in export cartons
- Producing cushion layers between stacked items in mixed SKUs for third-party logistics
- Replacing loose paper or foam inserts in contract packing lines
Who It Is For
- E-commerce fulfilment centres that pack mixed SKUs into standard cartons
- Third-party logistics warehouses needing flexible void fill without floor space for inserts
- Exporters shipping fragile goods in FCL and LCL containers
- Contract packers replacing hand-cut paper or foam on manual lines
- Manufacturers of cosmetics, food, and pharmaceuticals requiring paper-based protection
Problems It Solves
- Pre-formed paper inserts take up warehouse space that could hold saleable stock
- Hand-cut paper or foam varies in size and shape, leading to inconsistent protection
- Loose paper or foam migrates in transit and leaves products exposed
- Manual folding slows down packing lines and increases labour time
- Lack of on-demand cushioning forces buyers to overstock inserts or run out mid-shift
Technical Features
- Desktop or mobile design with touch screen interface for easy setup
- 12 m/min production speed with fast preheating and consistent forming
- Supports fanfold paper with width 38 cm and weight 50/70 g per square metre
- Adjustable length and meter settings to match carton size and product needs
- Compact footprint of 63 x 40 x 37 cm fits on standard packing benches
- Operates on 110 / 220 V, 50–60 Hz with 120 W power consumption
Published Data for Kraft Paper Cushion Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Kraft paper cushion machine |
|---|---|
| Power Supply | 110 / 220 V, 50–60 Hz |
| Power Consumption | 120 W |
| Speed | 12 m/min |
| Paper Width | 38 cm |
| Paper Weight | 50 / 70 g per square metre |
| Machine Dimensions | 63 x 40 x 37 cm |
| Net Weight | 40 kg |
| Gross Weight | 50 kg |
| Packaging Size | 71 x 45 x 42 cm |
Materials
- Fanfold kraft paper with 50/70 g per square metre weight
- Both virgin and recycled kraft paper can be used
- No plastic components in the cushion formation process
How It Is Made
Fanfold paper loaded into the machine hopper
Touch screen set to desired length and number of meters
Machine preheats and feeds paper through the crumpling rollers
Paper is heated and crumpled into a soft, cushioned form
Finished cushion exits the machine ready for placement in the carton
How It Is Checked
Incoming fanfold paper checked for correct width and weight before use
Machine preheat and crumpling function tested before delivery
Sample cushions formed and inspected for consistent crumple pattern
Speed and length settings verified during test runs
Final unit checked at container loading against packing list
Customisation Options
- Adjustable length and meter settings to match carton size and product
- Support for both virgin and recycled kraft paper based on buyer preference
- Optional custom touch screen interface layout on request
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Hand-cut paper inserts | Machine forms cushions in seconds with consistent size and shape, reducing labour and variation |
|---|---|
| Pre-formed paper cushions | No need to store inventory of inserts; cushions made on demand to match each carton |
| Plastic air pillows | Paper cushions are better for buyers needing plastic-free packaging or lower environmental impact |
| Manual folding | One-touch start and automated crumpling eliminate the need for skilled folding |
How to Use It
Place the machine on a stable bench and connect to 110 / 220 V power
Load fanfold paper into the hopper with the fold side facing the rollers
Set the desired length and number of meters on the touch screen
Place the formed cushion into the carton and repeat for each void
Store unused paper flat and away from moisture and direct heat
Kraft Paper Cushion Machine Questions
What paper weight can the machine handle
The machine works with fanfold paper at 50 / 70 g per square metre.
Can I use recycled paper with this machine
Yes, both virgin and recycled kraft paper can be used.
What is the maximum paper width the machine accepts
The machine accepts paper with a width of 38 cm.
How fast does the machine produce cushions
The machine runs at 12 m/min, which is suitable for manual packing lines.
Is the touch screen interface easy to use
Yes, the interface is simple and allows free setting of length and number of meters.
How is the machine packed for export
The machine ships in a carton measuring 71 x 45 x 42 cm with a gross weight of 50 kg.
