Paper Pad Machine
Paper pad machine produces compact kraft paper pads on demand from fanfold paper, replacing loose fill and pre-formed void fill that occupy warehouse space. The machine forms single or double-layer pads with adjustable length and width, sealing them at the point of use to prevent migration during transit. It runs at 12 m/min, reducing packing time and enabling consistent cushioning for fragile or high-value goods.
- Produces kraft paper pads on demand so void fill does not take up warehouse space
- Adjustable pad length and layer count to match carton size and product weight
- Single or double-layer pads made in one pass for flexible protection levels
- Compact pads stay in place during transit, preventing product movement and damage
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Produces kraft paper pads on demand so void fill does not take up warehouse space
- Adjustable pad length and layer count to match carton size and product weight
- Single or double-layer pads made in one pass for flexible protection levels
- Compact pads stay in place during transit, preventing product movement and damage
- 12 m/min speed reduces packing time on manual or semi-automated lines
- Supports both virgin and recycled kraft paper to meet material sourcing requirements
Where It Is Used
- Creating custom-sized paper pads for electronics shipped in export cartons
- Protecting glass bottles and jars during e-commerce fulfilment
- Filling voids in cartons of ceramics or homeware before container loading
- Securing pharmaceuticals and cosmetics in stacked cartons during transit
- Replacing loose paper or foam inserts in third-party logistics warehouses
Who It Is For
- E-commerce fulfilment centres needing on-demand void fill without storage overhead
- Third-party logistics warehouses that manage mixed SKUs and variable carton sizes
- Exporters shipping fragile goods in FCL and LCL containers using paper-based solutions
- Contract packers replacing hand-cut paper or foam on manual packing lines
Problems It Solves
- Pre-formed void fill takes up floor space that could hold saleable inventory
- Loose paper or foam shifts during transit, leaving products unprotected
- Manual cutting of paper pads creates inconsistent cushioning and slows packing
- Over-packed cartons attract dimensional freight charges on courier and air shipments
- Lack of adjustable pad size leads to overuse of material or insufficient protection
Technical Features
- Single or double-layer kraft paper pad formation with adjustable length and width
- Fanfold paper input with width of 38 cm and weight of 50/70 gsm
- Operating speed of 12 m/min for fast throughput on packing lines
- User-friendly interface for setting pad length, number of meters, and layer count
- Compact design allows desktop or portable use, easy to move between locations
- Compatible with both virgin and recycled kraft paper as input material
Published Data for Paper Pad Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Machine Type | Paper pad machine |
|---|---|
| Input Paper | Fanfold kraft paper, 38 cm width, 50/70 gsm |
| Layer Options | Single or double-layer pad |
| Operating Speed | 12 m/min |
| Voltage | 110 / 220 V, 50-60 Hz |
| Power | 120 W |
| Machine Dimensions | 75 x 44 x 118 cm |
| Packaging Size 1 | 71 x 45 x 42 cm |
| Packaging Size 2 | 80 x 47 x 16 cm |
| Net Weight | 55 kg |
| Gross Weight | 67 kg |
Materials
- Compatible with both virgin and recycled kraft paper
- No plastic components in the pad output
How It Is Made
Fanfold kraft paper fed into the machine at the designated width
Machine selects single or double-layer configuration based on user input
Paper is cut and folded to the set length and sealed at the edges
Pads are formed and ejected from the machine in a compact, ready-to-use format
Output pads are ready for immediate placement in cartons
How It Is Checked
Incoming kraft paper checked for correct width and grammage before feeding
Seal integrity tested on sample pads to ensure no separation during transit
Speed and cut accuracy verified during initial run to match set parameters
Final pad length and layer count confirmed against user settings
Machine inspected at container loading against packing list
Customisation Options
- Adjustable pad length and number of meters per batch
- Choice between single or double-layer pads based on product needs
- Support for both virgin and recycled kraft paper input
- Machine can be moved between locations for flexible deployment
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Loose fill paper | Pads are formed on demand and stay in place, preventing migration during transit |
|---|---|
| Pre-formed paper void fill | No storage space required for inventory, pads made only when needed |
| Cut foam inserts | No tooling or SKU-specific inserts, though foam offers higher compression resistance |
| Manual paper folding | Machine ensures consistent pad size and reduces packing time per unit |
How to Use It
Place fanfold kraft paper into the machine feed slot, ensuring correct width and orientation
Set the desired pad length and layer count using the user-friendly interface
Start the machine and run a short test pad to confirm seal and size
Place the formed pad in the carton base, around the product, and top off the void
Store unused fanfold paper flat and away from moisture or direct heat

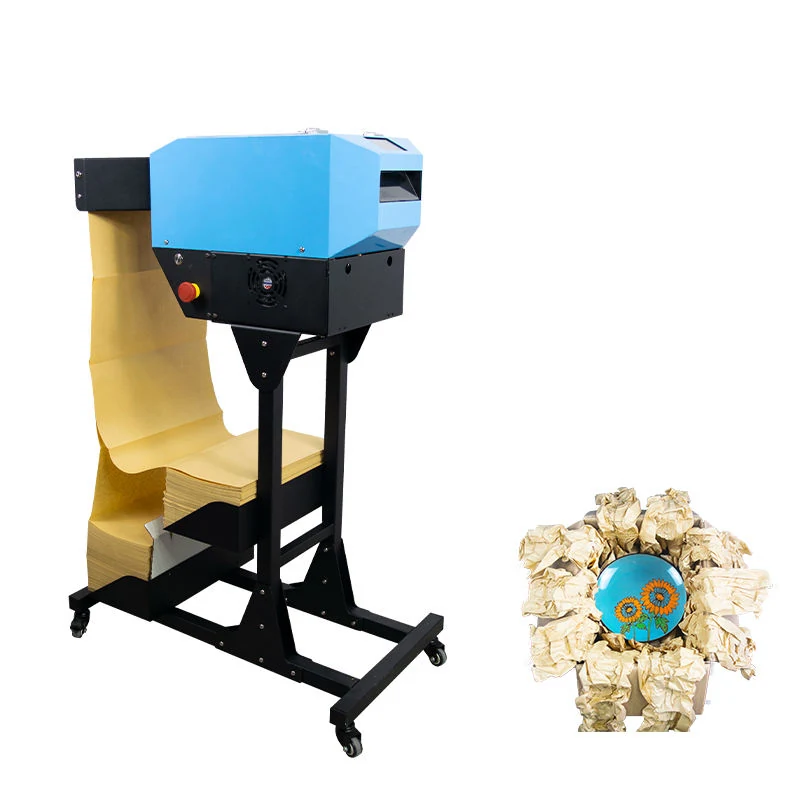

Paper Pad Machine in Detail
Photographs of the actual product as supplied, not renders.
Paper Pad Machine Questions
What is the minimum order quantity for the paper pad machine
The machine is sold as a single unit. No minimum order quantity applies.
Can I use recycled kraft paper in the machine
Yes, the machine accepts both virgin and recycled kraft paper as input.
How fast does the machine run
The machine operates at an average speed of 12 m/min.
Can I adjust the pad length and layer count
Yes, the user-friendly interface allows free adjustment of pad length and layer count.
What power supply does the machine require
The machine runs on 110 / 220 V, 50-60 Hz, with a power consumption of 120 W.
