Electric Honeycomb Paper Machine

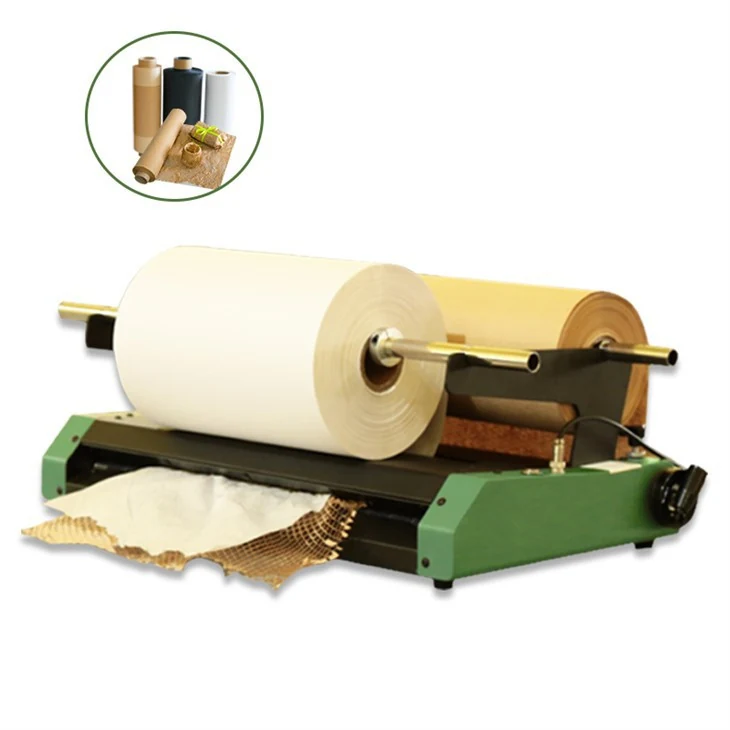

Electric honeycomb paper machine produces continuous rolls of hexagonal honeycomb paper on demand, using a single layer of white liner paper and a core of corrugated paper. The machine automatically feeds, stretches and cuts the paper into a rigid, interlocking structure that provides cushioning protection for fragile items during transport. It operates in two modes—automatic or pedal—so packers can choose the speed and control level that fits their workflow. The machine weighs only 12 kg and is designed for easy movement and setup in small or medium-sized packing areas.
- Produces honeycomb paper on demand, so no pre-made cushion stock needs to be stored
- Interlocking hexagonal structure provides consistent, elastic protection across the surface
- Two operation modes—automatic and pedal—allow flexible control for different packing speeds
- Lightweight at 12 kg, so it can be moved easily between packing stations or storage areas
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Produces honeycomb paper on demand, so no pre-made cushion stock needs to be stored
- Interlocking hexagonal structure provides consistent, elastic protection across the surface
- Two operation modes—automatic and pedal—allow flexible control for different packing speeds
- Lightweight at 12 kg, so it can be moved easily between packing stations or storage areas
- Uses only 250 m of honeycomb paper and 840 m of white liner paper per roll, reducing material waste
- Built-in tension control adjusts the stretch of the honeycomb paper for consistent shape and performance
Where It Is Used
- Creating custom-sized cushioning inserts for electronics and small appliances before shipping
- Protecting glassware and ceramics during e-commerce fulfilment and export
- Filling voids in cartons with lightweight, rigid honeycomb paper that resists compression
- Producing protective layers between stacked boxes or fragile components in a pallet load
- Replacing loose foam or paper inserts in manual packing lines where speed and consistency are needed
Who It Is For
- E-commerce fulfilment centres that pack mixed SKUs with variable void sizes
- Third-party logistics warehouses needing on-demand cushioning without pre-cut stock
- Exporters shipping fragile goods in FCL and LCL containers who want to reduce packing time
- Contract packers replacing hand-cut paper or foam inserts with automated, consistent output
- Manufacturers of electronics, cosmetics, and glass products that need lightweight, reliable protection
Problems It Solves
- Pre-formed paper cushions take up warehouse space and require inventory management
- Hand-cut or manually folded paper inserts vary in shape and protection level between packers
- Over-packaging with loose fill increases carton weight and dimensional freight charges
- Inconsistent cushioning leads to product damage during transit due to weak or collapsed inserts
- Manual paper folding slows down packing lines and increases labour time per carton
Technical Features
- Two operation modes: automatic mode and pedal mode for flexible control
- Automatic feeding and stretching of honeycomb paper with adjustable tension
- Built-in cutter for precise, consistent roll lengths after activation
- Operates on 110 / 220 V, 50–60 Hz, with 25 W power consumption
- Speed of 18 cm per second, suitable for steady, controlled production
- Compact size of 70 x 36 x 25 cm with carton dimensions of 72 x 45 x 26 cm for shipping
Published Data for Electric Honeycomb Paper Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Electric honeycomb paper machine |
|---|---|
| Operation Modes | Automatic mode and pedal mode |
| Voltage | 110 / 220 V |
| Frequency | 50–60 Hz |
| Power | 25 W |
| Speed | 18 cm per second |
| Paper Load | 250 m honeycomb paper + 840 m white liner paper |
| Machine Size | 70 x 36 x 25 cm |
| Carton Size | 72 x 45 x 26 cm |
| Net Weight | 12 kg |
| Gross Weight | 14 kg |
Materials
- White liner paper used as the outer layer for the honeycomb structure
- Corrugated paper used as the core material for the hexagonal honeycomb formation
- All paper components are standard industrial grades suitable for packaging use
How It Is Made
Paper feeding via adjustable knob to ensure smooth entry into the machine
Honeycomb paper stretched and formed into hexagonal structure using internal rollers
Tension adjusted via tightness button to control the shape and rigidity of the output
Automatic or pedal-activated cutting at the end of each roll
Final output rolled and ready for use or storage
How It Is Checked
Incoming paper rolls inspected for consistent width and absence of tears or defects
Tension control tested during setup to ensure even stretching across the full width
Cutting mechanism verified to produce clean, straight edges without fraying
Final output checked for consistent hexagonal structure and no misalignment
Carton packing verified against the packing list before shipment
Customisation Options
- Adjustable tension settings to match different paper thicknesses and desired cushion stiffness
- Custom roll length possible based on packaging needs and machine settings
- No branding or logo printing available on the machine itself
- No material change options beyond standard white liner and corrugated paper
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Pre-formed honeycomb paper inserts | No inventory needed; machine produces only what is used, reducing waste and storage space |
|---|---|
| Hand-cut paper or foam inserts | Consistent shape and cushioning performance across all units, no variation between packers |
| Manual folding of paper | Faster output and less labour per carton, with no risk of folding errors |
| Air cushion machines | Uses paper instead of plastic, better for buyers with plastic-free packaging goals |
How to Use It
Place the machine on a stable, flat surface near the packing bench
Turn on the power and adjust the paper feeding knob to guide the liner and honeycomb paper into the machine
Set the tension control to achieve the desired stretch and shape of the honeycomb structure
Choose automatic mode for continuous output or pedal mode for step-by-step operation
After each roll, press the cutter button or use the pedal to cut the finished honeycomb paper
Store unused paper rolls flat and away from moisture or direct sunlight
Electric Honeycomb Paper Machine Questions
What is the minimum order quantity for the electric honeycomb paper machine
The minimum order quantity is one unit. Send your request via WhatsApp and we will confirm availability and delivery time.
Can I use different paper types in this machine
The machine is designed for standard white liner paper and corrugated honeycomb paper. Other paper types may not feed properly or form correctly.
What is the power requirement for the machine
The machine operates on 110 / 220 V, 50–60 Hz. It uses 25 W of power.
How fast does the machine produce honeycomb paper
The machine runs at 18 cm per second, which is suitable for steady, controlled production.
Is the machine easy to move and install
Yes, it weighs only 12 kg and has a compact footprint. It can be moved easily and set up in minutes.
How much paper does one roll feed
One full feed uses 250 m of honeycomb paper and 840 m of white liner paper.
