Manual Paper Filling Dispenser
Manual paper filling dispenser is a desktop device that converts fanfold kraft paper into folded, compressed paper pads on demand. The unit mounts on a bench and adjusts in height to fit the packing station. When a packer pulls paper from the roll, it automatically folds and compresses into a cushioning pad that fills the void in a carton. No electricity or maintenance is required. The pad provides impact protection and is made from 100% environmentally friendly kraft paper.
- No electricity or power source needed, so it operates anywhere with no setup or running cost
- Adjustable height allows use at any bench or workstation without repositioning
- Paper pads are formed instantly on demand, so no pre-cut stock is stored
- Tearable by hand without scissors, reducing tooling and waste at the packing line
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- No electricity or power source needed, so it operates anywhere with no setup or running cost
- Adjustable height allows use at any bench or workstation without repositioning
- Paper pads are formed instantly on demand, so no pre-cut stock is stored
- Tearable by hand without scissors, reducing tooling and waste at the packing line
- Uses both virgin and recycled kraft paper, so material choice matches your sustainability goals
- Folds and compresses paper into a stable pad that stays in place during transit
Where It Is Used
- Filling void space around electronics in small to medium cartons during e-commerce packing
- Protecting glass bottles and jars in food and cosmetics packaging before shipment
- Cushioning fragile ceramics or homeware items in export cartons without pre-formed inserts
- Providing impact protection for pharmaceuticals and medical devices in standard cartons
- Supporting manual packing lines where speed and simplicity are more important than automation
Who It Is For
- E-commerce fulfilment centres with manual packing stations
- Third-party logistics warehouses that need low-cost, low-maintenance void fill
- Exporters shipping fragile goods in FCL and LCL containers using manual packing
- Contract packers replacing loose fill or hand-cut paper on bench lines
- Manufacturers of ceramics, cosmetics, food, pharmaceuticals, and electronics who pack at scale
Problems It Solves
- Pre-formed paper pads take up storage space that could hold saleable goods
- Loose paper or cut foam migrates in transit and leaves the product exposed
- Manual folding and cutting of paper slows the packing line and varies by worker
- Electric or automated dispensers require power, maintenance, and floor space
- Over-packaging with excess paper increases freight cost and waste
Technical Features
- Desktop manual dispenser with adjustable height for ergonomic use
- Fanfold kraft paper input with 38 cm width and 50 to 70 g/m² weight
- Automatic folding and compression of paper into a cushioning pad
- Tearable by hand without scissors, so no tools needed at the bench
- No moving parts or electrical components, so no maintenance or downtime
- Compact footprint of 60 x 55 x 18 cm fits on any standard packing bench
Published Data for Manual Paper Filling Dispenser
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Product | Manual paper filling dispenser |
|---|---|
| Paper Width | 38 cm |
| Paper Weight | 50 to 70 g/m² |
| Dispenser Size | 60 x 55 x 18 cm |
| Net Weight | 3.5 kg |
| Gross Weight | 5.5 kg |
| Power Source | Manual, no electricity required |
| Material | Metal and plastic frame with paper contact surfaces |
Materials
- Kraft paper input in 50 to 70 g/m² grade, available in virgin or recycled
- Frame made from durable metal and plastic components for long-term use
- No adhesives or chemicals used in the folding and compression process
How It Is Made
Fanfold kraft paper loaded into the dispenser from the top
Paper pulled manually through the folding channel
Folding mechanism compresses the paper into a stable pad shape
Final pad exits the unit ready for placement in the carton
No external power or maintenance required during operation
How It Is Checked
Incoming kraft paper checked for weight and consistency before loading
Folding mechanism tested for smooth operation and consistent pad formation
Sample pads inspected for compression and structural integrity
Dispenser assembled and tested before packing
Final unit checked against packing list before container loading
Customisation Options
- Available in standard 38 cm width, but custom widths can be discussed
- Frame colour options available on request
- Can be supplied with or without a paper roll holder depending on site setup
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Manual paper cutting and folding | The dispenser forms pads instantly and consistently, reducing packing time and variation between packers |
|---|---|
| Electric paper pad machines | No power, no maintenance, no floor space needed, and lower upfront cost |
| Pre-formed paper pads | No inventory of pads to store; pads made only when needed, reducing waste and space use |
| Foam or plastic void fill | 100% biodegradable and recyclable, with no plastic waste at end of life |
How to Use It
Mount the dispenser on a stable desktop or bench at a comfortable height
Load fanfold kraft paper into the top feed, ensuring the fold is aligned
Pull the paper by hand through the device to form a pad; no tools needed
Place the folded pad in the carton to fill the void around the product
Store unused paper rolls flat and away from moisture or direct heat

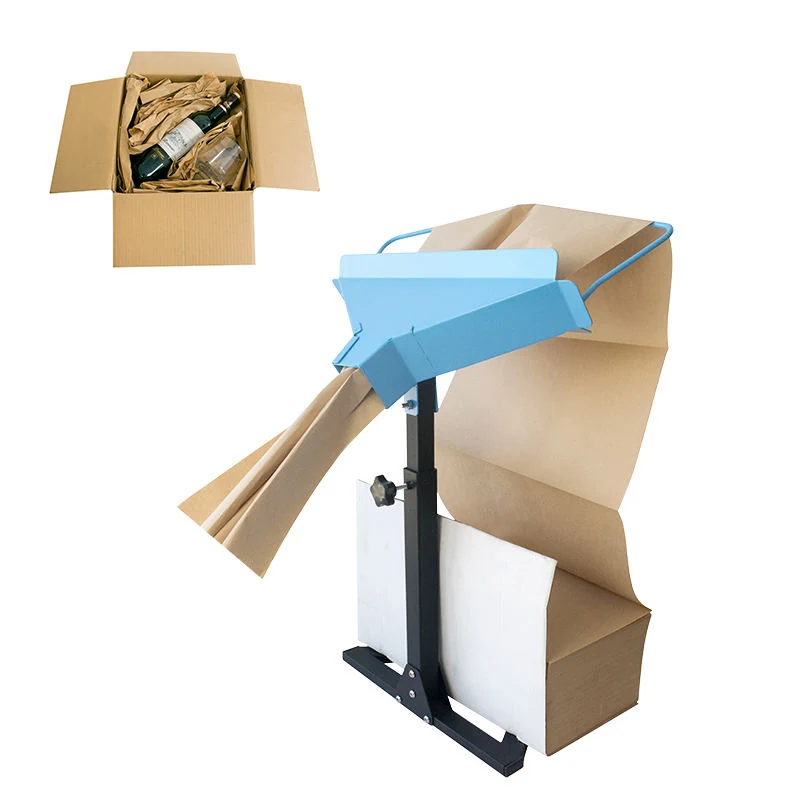

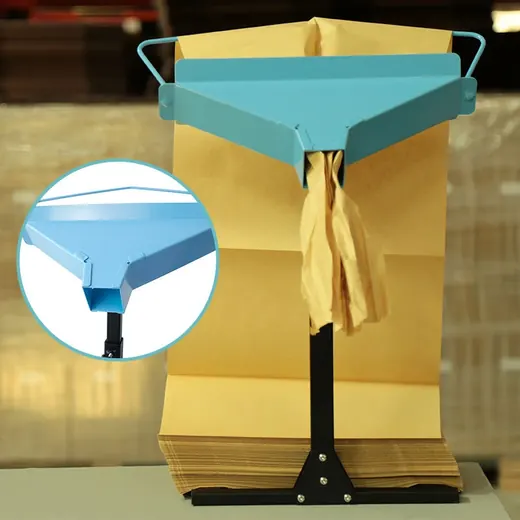

Manual Paper Filling Dispenser in Detail
Photographs of the actual product as supplied, not renders.
Manual Paper Filling Dispenser Questions
What paper weight can this dispenser use
It works with kraft paper from 50 to 70 g/m². Both virgin and recycled grades are compatible.
Can I use recycled paper in this dispenser
Yes, recycled kraft paper is fully compatible with the folding and compression mechanism.
Is electricity required to operate this dispenser
No. It is entirely manual, requiring no power source or maintenance.
What is the paper width this dispenser accepts
It is designed for 38 cm wide fanfold kraft paper. Custom widths are available on request.
How much does the dispenser weigh
The net weight is 3.5 kg and gross weight is 5.5 kg per unit.
Can I get a different frame colour
Yes, frame colour options are available on request. Please contact us via WhatsApp or email.
