Air Dunnage Bag: Fill the Gap Between Pallets Before the Container Moves
Inflatable kraft paper and PP woven bags that fill the void between pallets or cases inside a container or trailer. Inflated in place, they brace the load against the walls so cargo cannot shift, tip or collapse in transit.
Every Air Dunnage Bag Product We Make
All 15 items in this line, with the specification tables on each page taken from our published data.
Air bag dunnage inflation valve is a fast-acting, spring-loaded valve designed for large dunnage bags used in container and pallet loading. It enables rapid…
View Product
Air dunnage bag valve is a high-speed inflation and deflation valve designed for large air dunnage bags used in container and pallet loading. The valve enables…
View Product
The dunnage bag air valve enables rapid inflation and deflation of air dunnage bags during loading and unloading. Its large size and spring-loaded mechanism allow…
View Product
Fast filling dunnage bag valve is a large-diameter, spring-loaded valve designed for rapid inflation and deflation of air dunnage bags. It enables quick sealing of…
View Product
The valve for air dunnage bag is a high-speed inflation and deflation valve designed for large dunnage bags used in container and pallet load securing. It enables…
View Product
Dunnage air bag inflator is a handheld tool that inflates multi-layer kraft paper and PE film air bags used to secure cargo in containers, trucks, and trailers. It…
View Product
Kraft inflate air bag for container is a multi-layered dunnage bag made from kraft paper and PE film, designed to secure cargo in road transport and overseas…
View Product

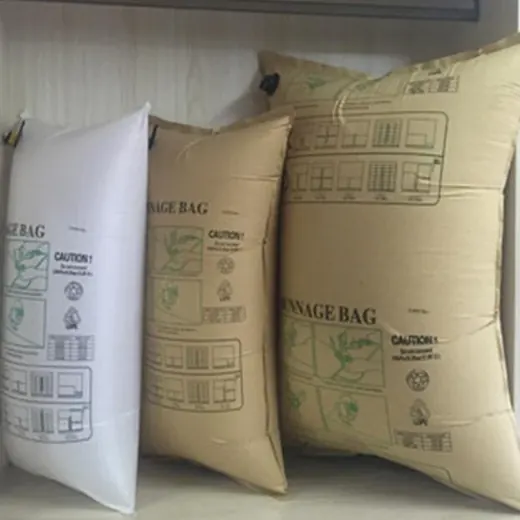

Dunnage air bags for container cargo protection are multi-layered inflatable bags made from kraft paper and PE film, designed to secure goods during long-haul…
View Product
PP woven dunnage air bag is a reusable, multi-layered bag made from kraft paper and PE film with an inner PA film layer, designed to secure cargo in trucks…
View Product
Inflatable cargo air bags are multi-layered dunnage bags made from kraft paper and sealed with PE and PA films. They inflate on site to fill voids in containers and…
View Product
Air dunnage bag is a multi-layered inflatable bag made from kraft paper and PE film, designed to secure cargo in trucks, trailers, and overseas containers. It…
View Product
Air dunnage bags are multi-layered, reusable bags made from kraft paper and PE film that inflate on site to secure cargo in trucks, trailers, and overseas…
View Product
Cargo air dunnage bags are multi-layered, reusable bags made from kraft paper and PE film that inflate on site to secure cargo in trucks, trailers, and overseas…
View Product

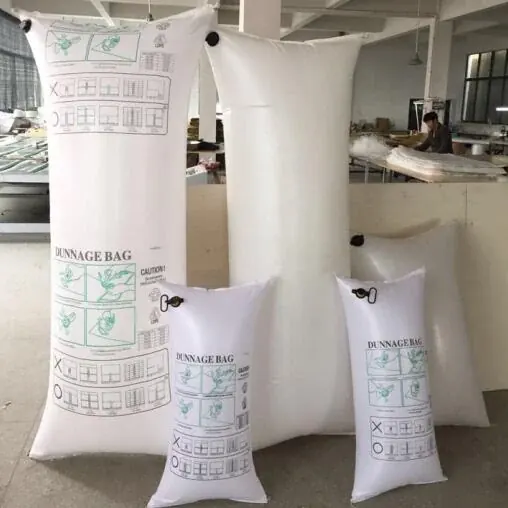

PP woven dunnage bag is a reusable, multi-layered air bag made from kraft paper and PE film with an inner PA film layer, designed to secure cargo in trucks…
View Product
Kraft paper air dunnage bag is a multi-layered, reusable bag made from kraft paper and PE film with an inner PA film layer, designed to secure cargo in containers…
View ProductWhat This Line Fixes in Your Packing Process
- Cargo shifts in the void between pallets and arrives crushed or tipped
- Timber bracing and cardboard fillers are slow to fit and have to be disposed of at destination
- Loads secured only by strapping still move when the container is handled at the port
- Choosing the wrong bag size leaves either a gap or a bag that cannot be inflated correctly
Model range AW-0510 to AW-1224, bag weight 0.3 kg to 1.49 kg, bearing strength 2.5 T to 7 T, void fill 100 mm to 600 mm, cargo height 900 mm to 2300 mm.
Who Buys This Line
- Exporters loading FCL and LCL containers with palletised goods
- Road freight operators securing loads in trucks and trailers
- Manufacturers shipping cased goods that must not move in transit
- Any industry that exports goods and pays for transit damage claims
Why This Format Rather Than the Alternatives
- Rated for use with loads up to 20 tons
- Fills a maximum void of 60 cm between pallets or cases
- Working pressure does not exceed 0.2 Bar, 20 kPa or 2.8 PSI, which keeps inflation simple and safe
- Multi-layer construction of kraft paper with PE film outside and PA film inside holds pressure
- A multi-use valve lets the same bag be deflated and used again
- Twenty stock sizes from 500*1000 mm to 1200*2400 mm cover most container void patterns
Where It Is Used
- Bracing palletised cargo in a 20 ft or 40 ft ocean container
- Filling the centre gap on a two-pallet-wide trailer load
- Stopping drum and case loads from tipping in road transport
- Protecting stacked cartons from load collapse during handling
Where This Fits Next
Air Dunnage Bag Questions
How big a gap can a dunnage bag fill
Up to 60 cm. Void fill capability by model runs from 100 mm to 600 mm, so choose the model that matches the gap you actually have.
What load can the bags handle
The bags are used with loads up to 20 tons. Bearing strength runs from 2.5 T to 7 T depending on the model.
How much should I inflate the bag
Working pressure must not exceed 0.2 Bar, which is 20 kPa or 2.8 PSI. An inflator with a pressure setting keeps this consistent across a container.
Are the bags reusable
Yes. The multi-use valve lets you deflate and reuse the bag, and both the kraft paper and PP woven versions are recyclable.
Which material should I choose, kraft paper or PP woven
Kraft paper is the common choice for ocean containers and recycles with paper waste. PP woven suits repeated use and rougher handling.
Do you supply valves and inflators separately
Yes. Dunnage bag valves and inflators are stocked as separate items, so you can replace a valve or add an inflator without buying new bags.
Get Air Dunnage Bag Sized to Your Cartons
Send the carton dimensions, the product you are packing and the monthly volume. We will confirm the format and what fits in a container.
