Paper Filling Machine

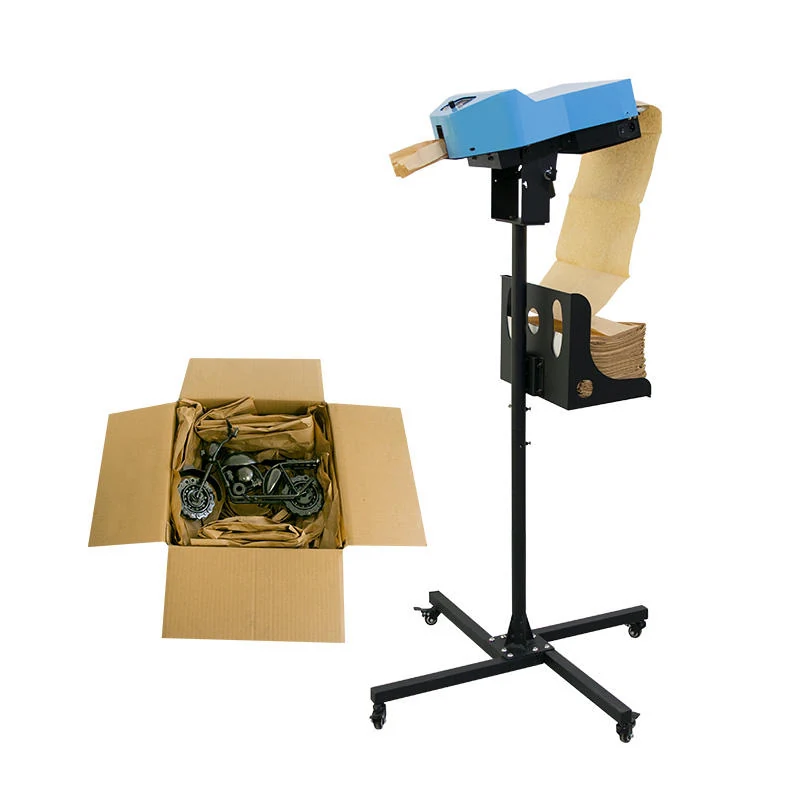

Paper filling machine converts fanfold paper into continuous paper cushion material on demand. The machine runs at 70 m/min and produces a consistent, custom-fit fill that reduces void space in cartons without using plastic. It operates in three modes—single, automatic, and pedal—so the packer can adjust speed and control based on workload. The output angle and height are adjustable to match the packing station layout, and the built-in cutter ensures clean, safe sheet separation.
- Produces paper cushion fill on demand so pre-formed void fill does not occupy warehouse space
- Uses 100% paper material so packaging is recyclable and meets environmental targets
- Three operating modes allow flexible control for different packing speeds and volumes
- Adjustable outlet angle and height fit the machine to any packing bench layout
Include the carton size and the monthly volume and the reply will contain a format recommendation, not just a price.
Key Benefits
- Produces paper cushion fill on demand so pre-formed void fill does not occupy warehouse space
- Uses 100% paper material so packaging is recyclable and meets environmental targets
- Three operating modes allow flexible control for different packing speeds and volumes
- Adjustable outlet angle and height fit the machine to any packing bench layout
- Built-in cutter ensures clean, consistent sheet lengths without manual cutting
- Runs at 70 m/min so one machine can support a medium-volume packing line
Where It Is Used
- Creating custom paper cushion layers for electronics shipped in export cartons
- Filling voids around glass bottles and jars in e-commerce fulfilment
- Protecting ceramics and homeware during long-distance shipping
- Providing a plastic-free cushioning solution for food and pharmaceutical goods
- Supporting sustainable packaging goals in retail and logistics operations
Who It Is For
- E-commerce fulfilment centres that need plastic-free void fill for customer delivery
- Third-party logistics warehouses replacing plastic void fill with paper-based alternatives
- Exporters shipping fragile goods in FCL and LCL containers who require recyclable packaging
- Manufacturers of cosmetics, food, and pharmaceuticals seeking to reduce plastic use
- Contract packers aiming to eliminate plastic inserts while maintaining product protection
Problems It Solves
- Pre-formed plastic void fill takes up floor space and adds unnecessary weight to shipments
- Plastic fill is not recyclable and increases environmental impact at end of life
- Manual cutting of paper or foam slows packing lines and creates inconsistent cushioning
- Over-packed cartons attract dimensional freight charges on courier and air shipments
- Lack of on-demand cushioning leads to over-ordering of pre-formed materials
Technical Features
- Three operating modes: single, automatic, and pedal for flexible control
- Adjustable outlet angle and height to match packing station setup
- Built-in cutter for safe, consistent sheet separation
- Runs at 70 m/min to support medium-volume packing operations
- Uses fanfold paper with width 38 cm and weight 50–70 gsm
- Power supply: 110 / 220 V, 50–60 Hz, 120 W
- Machine dimensions: 94 x 94 x 162 cm
- Net weight: 26 kg, gross weight: 29 kg
- Packaging size: 80 x 60 x 40 cm
Published Data for Paper Filling Machine
Only values published on our own datasheets appear here. If a figure you need is missing, ask for it and we will confirm it in writing.
| Model | Paper Filling Machine |
|---|---|
| Operating Modes | Single, automatic, pedal |
| Speed | 70 m/min |
| Power Supply | 110 / 220 V, 50–60 Hz |
| Power Consumption | 120 W |
| Paper Input | Fanfold paper, 38 cm width, 50–70 gsm |
| Output Adjustment | Adjustable angle and height of outlet |
| Built-in Feature | Integrated cutter |
| Machine Dimensions | 94 x 94 x 162 cm |
| Net Weight | 26 kg |
| Gross Weight | 29 kg |
| Packaging Size | 80 x 60 x 40 cm |
Materials
- 100% paper material used—no plastic or synthetic additives in the output
How It Is Made
Fanfold paper loaded into the machine feed tray
Paper fed through the machine at 70 m/min with controlled tension
Machine folds and shapes the paper into a continuous cushion structure
Built-in cutter separates the cushion at the desired length
Finished paper cushion delivered to the packing bench
How It Is Checked
Incoming fanfold paper checked for correct width and weight before use
Machine speed and folding consistency tested during initial run
Cutter alignment verified to ensure clean separation without tearing
Final output inspected for consistent fold depth and sheet length
Machine checked at container loading against packing list
Customisation Options
- Adjustable outlet angle and height to fit different packing station layouts
- Optional integration with existing packaging lines on request
How It Compares With the Alternatives
Where another material is the better answer we say so, because a returned shipment costs more than a lost order.
| Plastic air cushion film | Paper cushion is fully recyclable and avoids plastic waste, though it offers less compression resistance than inflated plastic |
|---|---|
| Manual paper folding | Machine produces consistent cushions faster and with less operator fatigue |
| Pre-formed paper inserts | On-demand production avoids over-ordering and storage of unused inserts |
| Moulded plastic inserts | No tooling cost or SKU-specific dies, but less precise fit for heavy or irregular items |
How to Use It
Place the fanfold paper roll into the feed tray with the folded edge facing forward
Adjust the outlet angle and height to match the packing bench position
Select operating mode: single for one sheet, automatic for continuous output, pedal for hands-free control
Start the machine and run a test length to confirm fold and cut accuracy
Place the paper cushion into the carton around the product and repeat for full void fill
Paper Filling Machine in Detail

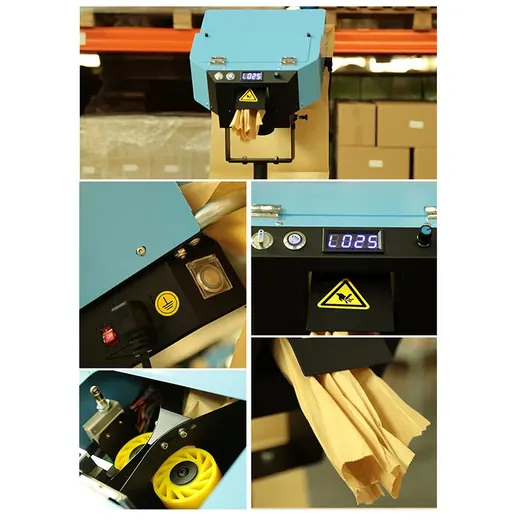

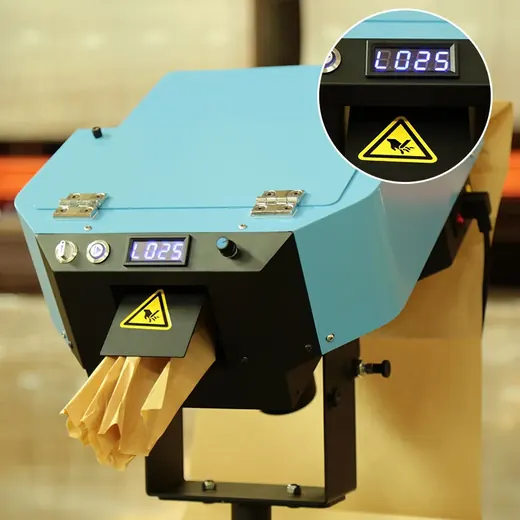

Photographs of the actual product as supplied, not renders.
Paper Filling Machine Questions
What is the operating speed of the machine
The machine runs at 70 m/min, which supports medium-volume packing lines.
How do I adjust the outlet height and angle
The outlet can be freely adjusted to match your packing station layout for ergonomic use.
What is the net and gross weight of the machine
Net weight is 26 kg, gross weight is 29 kg. Packaging size is 80 x 60 x 40 cm.
