14k 18k And 22k Gold Jewelry Electropolishing Machine
Batch electropolishing for rings bracelets pendants and earrings with a touch screen control system
- FunctionElectropolishing of various K gold jewelry
- ApplicationRings, bracelets, pendants, earrings
- Capacity80 pcs processed per hour
- DimensionLength 0.4M x Width 0.6M x Height 0.86M
- Weight50KG
What This Machine Does
This machine electropolishes K gold jewelry such as rings, bracelets, pendants and earrings, replacing traditional manual polishing.
Polishing works by electrolysis with a special polishing electrolyte, so every surface of the piece is reached at once.
Throughput is 80 pieces per hour on the base configuration, with models from a 4 litre bench unit to a 75 litre production tank.
What You Get
- One machine replaces the traditional mould holding and polishing process, which saves cost and improves delivery.
- No stone damage, no stone drop, no nail damage, no dead corner and no concave gap, with full coverage on wax set jewelry.
- One machine can replace several workers, raising processing efficiency and quality at the same time.
- Casting marks and frosted marks are removed effectively and the surface comes out flat and bright.
- Loss recovery rate on K gold reaches more than 96%.
Who Buys It
- K gold jewelry manufacturers running batch finishing
- Wax set jewelry producers where hand polishing risks stone loss
- Jewelry factories trying to cut polishing labour
- Workshops processing rings, earrings, pendants, bracelets and necklaces together
What It Fixes
- Hand polishing cannot reach dead corners, concave gaps or the area under set stones.
- Manual polishing loses gold and risks knocking stones out or damaging prongs.
- One polisher can only finish so many pieces per shift, which caps delivery.
- Casting marks and frosted marks slow the whole finishing line down.
How It Is Built
- Touch screen electronic control system with independently developed automatic control
- Current and voltage display, conversion and adjustment
- Running time timing and display functions
- Motor speed adjustment and forward and reverse time setting
- Timing alarm with adjustable alarm time
- Phase loss, output short circuit, overload and over-temperature automatic protection
- Machine failure automatic protection alarm
- Operating system language selectable, touch screen and physical buttons control the machine together
Technical Data
Every figure below is taken from the machine documentation. Where a value is not published it is left out rather than estimated.
| Model | Machine Dimension | Number Of Hooks | Liquid Capacity | Abrasive Dosage |
|---|---|---|---|---|
| AC-R1 | L810 x W1010 x H700 mm | 120 pcs | 75L | 25Kg |
| AC-R2 | L810 x W600 x H700 mm | 60 pcs | 40L | 15Kg |
| AC-R3 | L465 x W335 x H410 mm | 20 pcs | 5L | 3Kg |
| AC-F1 | L1100 x W1050 x H1300 mm | 138 pcs | 75L | 25Kg |
| AC-F3 | L420 x W310 x H360 mm | 20 pcs | 4L | 2Kg |
| AC-F3-1 | L480 x W580 x H440 mm | 20 pcs | 4L x 3 | 2Kg |
| AC-F3-2 | L670 x W480 x H470 mm | 40 pcs | 6L x 1 and 4L x 1 | 4Kg |
| AC-F3L | L420 x W370 x H400 mm | 20 pcs | 4L | 2Kg |
| Function | Electropolishing of various K gold jewelry |
|---|---|
| Application | Rings, bracelets, pendants, earrings |
| Capacity | 80 pcs processed per hour |
| Dimension | Length 0.4M x Width 0.6M x Height 0.86M |
| Weight | 50KG |
| Material | PVC |
| Voltage | AC220V |
| Power | 150A |

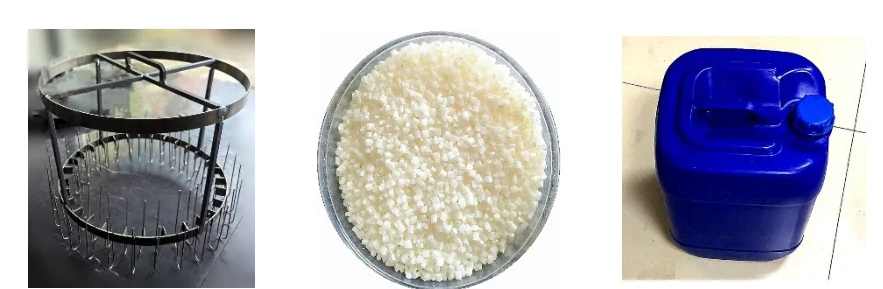

| Matching accessories | Electropolishing hanger, abrasive, electrolyte solution |
| Loss recovery rate | More than 96% |
| Site required | 4 square metres for a single machine |
Where It Is Used
- Electropolishing of 14K, 20K, K red, K white and K yellow gold jewelry
- Finishing rings, earrings, pendants, bracelets and necklaces in one batch
- Removing casting marks and frosted marks from cast jewelry
- Full coverage finishing of wax set jewelry without disturbing the stones
How It Compares With The Alternatives
| Manual polishing | Cannot reach dead corners or concave gaps, risks stone loss and nail damage, and is limited by operator hours |
|---|---|
| Silver and copper electropolishing machine | Stainless steel 304 body at 300A, 400 pcs per hour for silver and copper jewelry |
| This machine | PVC body at 150A for K gold, 80 pcs per hour, with a loss recovery rate over 96% |
Running The Machine
Step
Load the jewelry onto the electropolishing hangers according to the hook count of your model.
Step
Fill the tank with the polishing electrolyte solution and add the abrasive at the dosage given for the model.
Step
Set the current, voltage and running time from the touch screen.
Step
Set motor speed and the forward and reverse time so every surface is reached.
Step
Run the cycle; the timing alarm signals the end of the process.
Step
Note that electropolishing is a stage in finishing rather than the final step on its own.
Questions About The 14k 18k 22k Gold Jewelry Electropolishing Machine
What master alloy should be used to achieve the effect you show?
Heraeus brand master alloy is recommended: 18K white model H145, 18K red model H853SL and 18K yellow model 177B. Master alloy can also be purchased from us, in which case the result is guaranteed.
What materials can the machine process?
Karat gold, silver and copper.
Can I buy the chemicals from another company?
If you have already purchased our machine, please use the chemical liquid supplied by us in order to achieve the intended result.
Will electropolishing make my product as bright and flat as a finished piece?
Electropolishing is not the final step on its own; it is a stage in the finishing process.
How many pieces can be processed per hour?
80 pieces per hour on the base machine. Hook capacity runs from 20 pieces on the AC-F3 up to 138 pieces on the AC-F1.
How much space and power does it need?
A single machine needs about 4 square metres and runs on AC220V.
