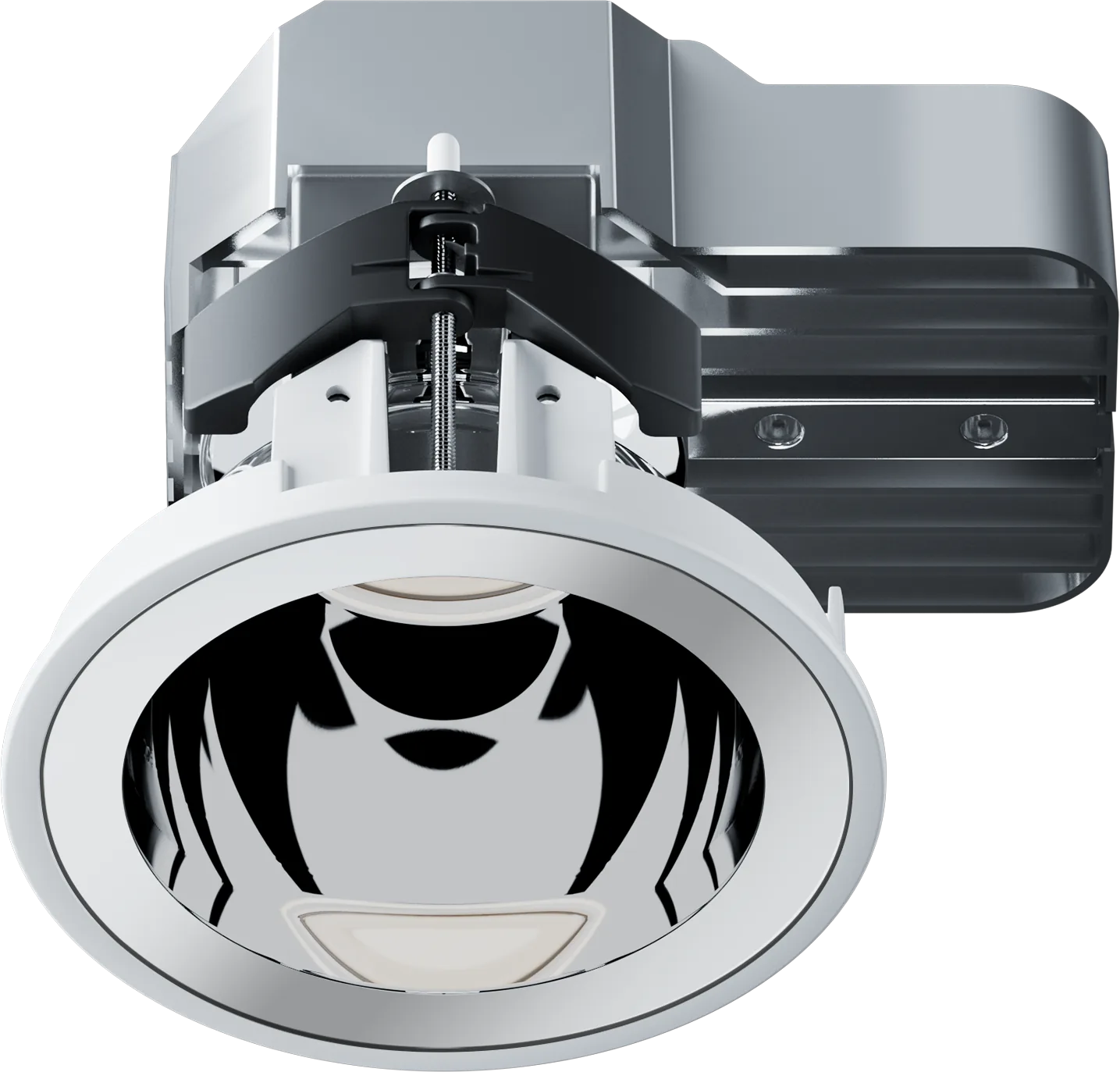

TD-170/TD-190/TD-218 Commercial LED Downlight 40 W/60 W/80 W
Specified at 40 W/60 W/80 W, the TD-170/TD-190/TD-218 is the LED Down Light model for projects that have settled on a Ø155 / Ø175 / Ø205 mm aperture. Beam angles of 50° are available, which is what lets one aperture size serve several lighting jobs. Like the rest of the range it uses a die-cast aluminium body for passive cooling, with no fan to fail.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The TD-170/TD-190/TD-218
- 1 beam option on one body: 50°
- Fixed Ø155 / Ø175 / Ø205 mm ceiling cutout shared with other models in the range
- 40 W/60 W/80 W rating suited to high ceilings in malls, supermarkets and atria
- COB light engine matched to the housing
- Aluminum body for passive heat management
- Overall size Ø170 x 139H / Ø190 x 152H / Ø218 x 168H mm
What It Fixes On Site
- Glare complaints in offices with reflective screens
- Mixed aperture sizes across one building
- Corridors and open-plan floors that need even light without hot spots
- High ceilings where small downlights simply do not reach
Published Figures For The TD-170/TD-190/TD-218
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 40 W/60 W/80 W |
|---|---|
| Beam Angle | 50° |
| Dimensions (mm) | Ø170 x 139H / Ø190 x 152H / Ø218 x 168H |
| Ceiling Cutout (mm) | Ø155 / Ø175 / Ø205 |
| LED Chip Platform | COB |
| Body Material | Aluminum |
| Mounting | Recessed |
| Model Reference | TD-170/TD-190/TD-218 |
How It Is Built
- Light engine platform COB
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 50°
- Passive cooling, no fan
Where The TD-170/TD-190/TD-218 Is Used
Hospital and school corridors
Hotel guest rooms
Open-plan offices
Supermarket aisles
Who Buys This Model
- Hospitals and schools needing comfortable ambient light
- Distributors stocking a general lighting line
- Office and commercial building contractors
- Supermarket and mall projects with high ceilings
Specifying and Installing It
- Cut the ceiling to Ø155 / Ø175 / Ø205 mm and check the void clears the Ø170 x 139H mm body plus the wiring.
- Confirm the beam angle before the order is placed. 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The TD-170/TD-190/TD-218 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
| Compared With | Difference |
|---|---|
| DL630T-DL631T-DL632T | A Ø155 / Ø175 / Ø205 mm opening against Ø75 / Ø95 / Ø115 mm on the DL630T-DL631T-DL632T; 40 W/60 W/80 W here against 12 W/18 W/25 W; beam angles only this model offers: 50°; the DL630T-DL631T-DL632T adds 15°, 24°, 36°, 60°. |
| DL830-DL831-DL832 | A Ø155 / Ø175 / Ø205 mm opening against Ø75 / Ø90 / Ø120 mm on the DL830-DL831-DL832; 40 W/60 W/80 W here against 12 W/15 W/20 W; beam angles only this model offers: 50°; the DL830-DL831-DL832 adds 60°. |
Related Models In The LED Down Light
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
TD-170/TD-190/TD-218 Questions
What ceiling cutout does the TD-170/TD-190/TD-218 need?
Ø155 / Ø175 / Ø205 mm. The body measures Ø170 x 139H / Ø190 x 152H / Ø218 x 168H mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the TD-170/TD-190/TD-218?
50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A COB platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the TD-170/TD-190/TD-218 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the TD-170/TD-190/TD-218?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
