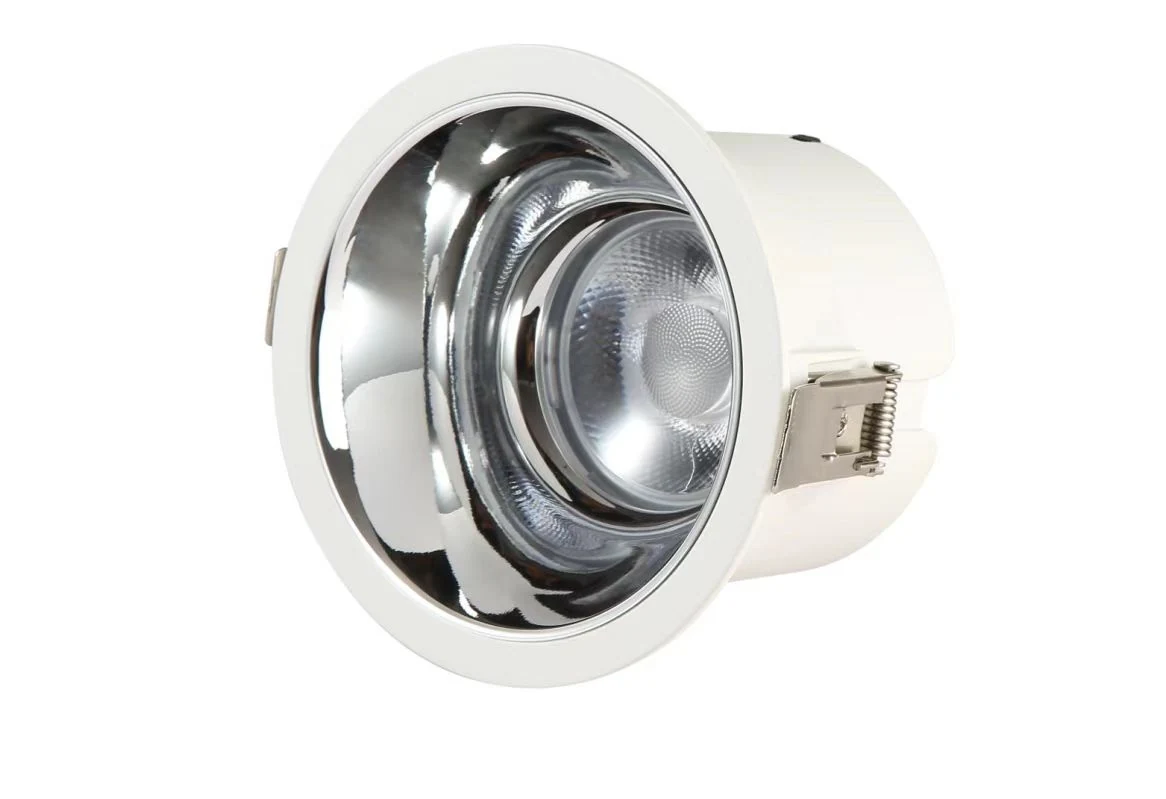

DL630T-DL631T-DL632T Commercial LED Downlight 12 W/18 W/25 W
DL630T-DL631T-DL632T covers the 12 W/18 W/25 W step in the LED Down Light. The body measures Ø86 x 69H / Ø110 x 76H / Ø130 x 92H mm and seats behind a Ø75 / Ø95 / Ø115 mm opening, with 15°, 24°, 36° and 60° beam options selected per order line. The housing is die-cast aluminium from our own workshop, so wall thickness and heat-sink geometry repeat between batches.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The DL630T-DL631T-DL632T
- 4 beam options on one body: 15°, 24°, 36° and 60°
- Fixed Ø75 / Ø95 / Ø115 mm ceiling cutout shared with other models in the range
- 12 W/18 W/25 W rating suited to display lighting and taller retail ceilings
- COB light engine matched to the housing
- Aluminum body for passive heat management
- Overall size Ø86 x 69H / Ø110 x 76H / Ø130 x 92H mm
What It Fixes On Site
- High ceilings where small downlights simply do not reach
- Glare complaints in offices with reflective screens
- Mixed aperture sizes across one building
- Corridors and open-plan floors that need even light without hot spots
Published Figures For The DL630T-DL631T-DL632T
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 12 W/18 W/25 W |
|---|---|
| Beam Angle | 15°, 24°, 36° and 60° |
| Dimensions (mm) | Ø86 x 69H / Ø110 x 76H / Ø130 x 92H |
| Ceiling Cutout (mm) | Ø75 / Ø95 / Ø115 |
| LED Chip Platform | COB |
| Body Material | Aluminum |
| Mounting | Recessed |
| Model Reference | DL630T-DL631T-DL632T |
How It Is Built
- Light engine platform COB
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24°, 36° and 60°
- Passive cooling, no fan
Where The DL630T-DL631T-DL632T Is Used
Supermarket aisles
Hospital and school corridors
Hotel guest rooms
Open-plan offices
Who Buys This Model
- Supermarket and mall projects with high ceilings
- Hospitals and schools needing comfortable ambient light
- Distributors stocking a general lighting line
- Office and commercial building contractors
Specifying and Installing It
- Cut the ceiling to Ø75 / Ø95 / Ø115 mm and check the void clears the Ø86 x 69H mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 60° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The DL630T-DL631T-DL632T Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
| Compared With | Difference |
|---|---|
| DL830-DL831-DL832 | A Ø75 / Ø95 / Ø115 mm opening against Ø75 / Ø90 / Ø120 mm on the DL830-DL831-DL832; 12 W/18 W/25 W here against 12 W/15 W/20 W; beam angles only this model offers: 15°, 24°, 36°. |
| TD-170/TD-190/TD-218 | A Ø75 / Ø95 / Ø115 mm opening against Ø155 / Ø175 / Ø205 mm on the TD-170/TD-190/TD-218; 12 W/18 W/25 W here against 40 W/60 W/80 W; beam angles only this model offers: 15°, 24°, 36°, 60°; the TD-170/TD-190/TD-218 adds 50°. |
Related Models In The LED Down Light
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
DL630T-DL631T-DL632T Questions
What ceiling cutout does the DL630T-DL631T-DL632T need?
Ø75 / Ø95 / Ø115 mm. The body measures Ø86 x 69H / Ø110 x 76H / Ø130 x 92H mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the DL630T-DL631T-DL632T?
15°, 24°, 36° and 60°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A COB platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the DL630T-DL631T-DL632T be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the DL630T-DL631T-DL632T?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The DL630T-DL631T-DL632T
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
