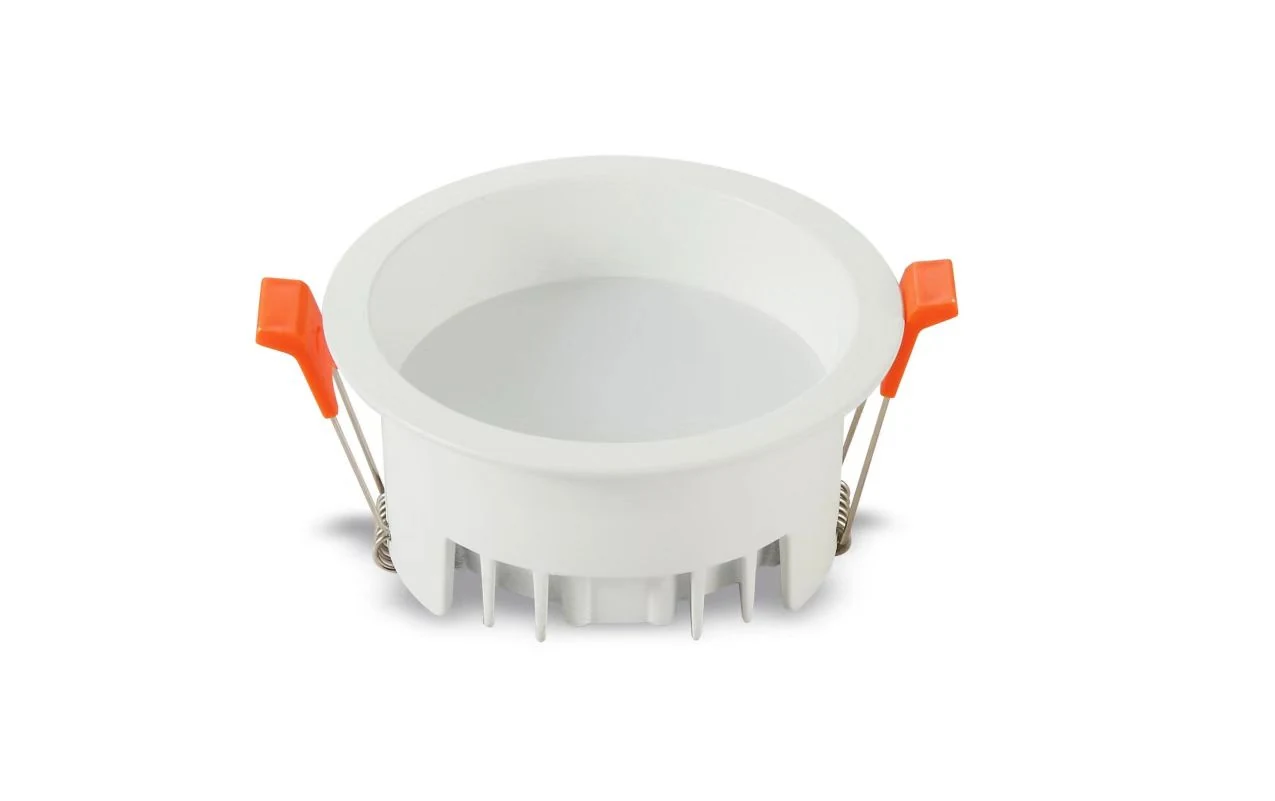

DL830-DL831-DL832 Commercial LED Downlight 12 W/15 W/20 W
The DL830-DL831-DL832 is a recessed downlight rated at 12 W/15 W/20 W. It drops into a Ø75 / Ø90 / Ø120 mm opening and is supplied with a choice of 60° optics, so the same ceiling position can be set up for accent light or for general cover. Heat is carried away passively through the die-cast aluminium housing, which is produced in our own casting workshop in Jiangmen.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The DL830-DL831-DL832
- 1 beam option on one body: 60°
- Fixed Ø75 / Ø90 / Ø120 mm ceiling cutout shared with other models in the range
- 12 W/15 W/20 W rating suited to display lighting and taller retail ceilings
- SMD2835 light engine matched to the housing
- Aluminum body for passive heat management
- Overall size Ø84 x 47H / Ø105 x 50H / Ø130 x 58H mm
What It Fixes On Site
- Corridors and open-plan floors that need even light without hot spots
- High ceilings where small downlights simply do not reach
- Glare complaints in offices with reflective screens
- Mixed aperture sizes across one building
Published Figures For The DL830-DL831-DL832
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 12 W/15 W/20 W |
|---|---|
| Beam Angle | 60° |
| Dimensions (mm) | Ø84 x 47H / Ø105 x 50H / Ø130 x 58H |
| Ceiling Cutout (mm) | Ø75 / Ø90 / Ø120 |
| LED Chip Platform | SMD2835 |
| Body Material | Aluminum |
| Mounting | Recessed |
| Model Reference | DL830-DL831-DL832 |
How It Is Built
- Light engine platform SMD2835
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 60°
- Passive cooling, no fan
Where The DL830-DL831-DL832 Is Used
Open-plan offices
Supermarket aisles
Hospital and school corridors
Hotel guest rooms
Who Buys This Model
- Office and commercial building contractors
- Supermarket and mall projects with high ceilings
- Hospitals and schools needing comfortable ambient light
- Distributors stocking a general lighting line
Specifying and Installing It
- Cut the ceiling to Ø75 / Ø90 / Ø120 mm and check the void clears the Ø84 x 47H mm body plus the wiring.
- Confirm the beam angle before the order is placed. 60° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The DL830-DL831-DL832 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
| Compared With | Difference |
|---|---|
| DL630T-DL631T-DL632T | A Ø75 / Ø90 / Ø120 mm opening against Ø75 / Ø95 / Ø115 mm on the DL630T-DL631T-DL632T; 12 W/15 W/20 W here against 12 W/18 W/25 W; the DL630T-DL631T-DL632T adds 15°, 24°, 36°. |
| TD-170/TD-190/TD-218 | A Ø75 / Ø90 / Ø120 mm opening against Ø155 / Ø175 / Ø205 mm on the TD-170/TD-190/TD-218; 12 W/15 W/20 W here against 40 W/60 W/80 W; beam angles only this model offers: 60°; the TD-170/TD-190/TD-218 adds 50°. |
Related Models In The LED Down Light
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
DL830-DL831-DL832 Questions
What ceiling cutout does the DL830-DL831-DL832 need?
Ø75 / Ø90 / Ø120 mm. The body measures Ø84 x 47H / Ø105 x 50H / Ø130 x 58H mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the DL830-DL831-DL832?
60°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A SMD2835 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the DL830-DL831-DL832 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the DL830-DL831-DL832?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The DL830-DL831-DL832
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
