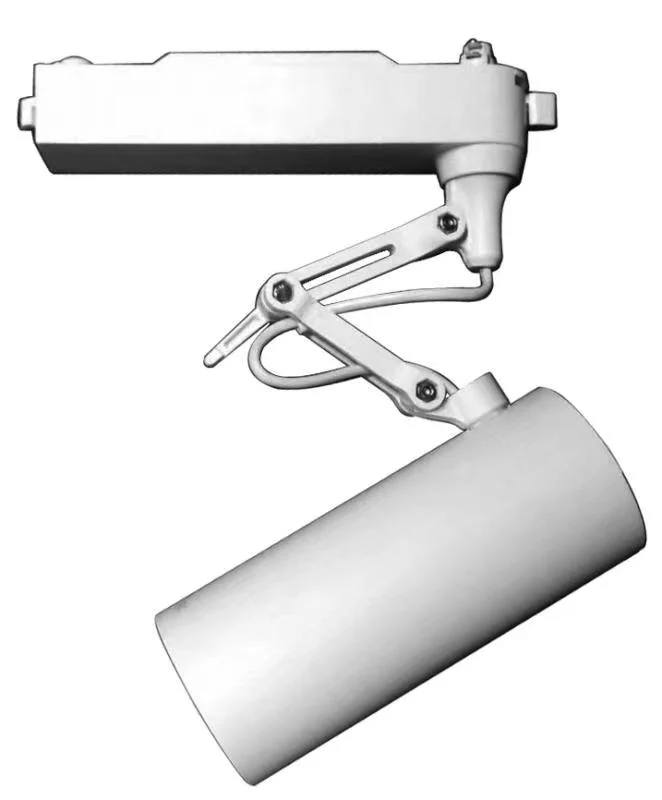

GL156 LED Track Spotlight 30 W
Rated at 30 W, the GL156 is the track head for projects that re-aim their lighting as displays change. The housing measures Ø66 x 155 mm and beam options run 15°, 24°, 36° and 50°. Like the rest of the range it uses a die-cast aluminium body for passive cooling, with no fan to fail.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The GL156
- 4 beam options on one body: 15°, 24°, 36° and 50°
- No ceiling cutting required, the head mounts onto surface track
- 30 W rating suited to display lighting and taller retail ceilings
- COB light engine matched to the housing
- Aluminum body for passive heat management
- Overall size Ø66 x 155 mm
What It Fixes On Site
- Accent light that needs to reach across a wide aisle
- Retrofit projects in listed or concrete ceilings
- Fixed downlights that no longer line up after a store reset
- Ceilings that cannot be cut for recessed fittings
Published Figures For The GL156
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 30 W |
|---|---|
| Beam Angle | 15°, 24°, 36° and 50° |
| Dimensions (mm) | Ø66 x 155 |
| Ceiling Cutout (mm) | Not required, track mounted |
| LED Chip Platform | COB |
| Body Material | Aluminum |
| Mounting | Surface track-mounted |
| Model Reference | GL156 |
How It Is Built
- Light engine platform COB
- Die-cast aluminium housing produced in our own casting workshop
- Surface track-mounted installation
- Beam angle fixed per order line from 15°, 24°, 36° and 50°
- Passive cooling, no fan
Where The GL156 Is Used
Showroom vehicle and furniture lighting
Pop-up and seasonal retail
Fashion floor displays
Gallery and museum walls
Who Buys This Model
- Projects with concrete or exposed service ceilings
- Distributors serving shopfitters
- Retail chains that reset displays through the year
- Galleries, showrooms and exhibition spaces
Specifying and Installing It
- Fix the track run first, then clip the head on and slide it to position. No ceiling cutting is involved.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The GL156 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
| Compared With | Difference |
|---|---|
| GL130 | Both clip onto surface track instead of a ceiling cutout; beam angles only this model offers: 50°; the GL130 adds 60°. |
| GL135 | Both clip onto surface track instead of a ceiling cutout; 30 W here against 35 W; beam angles only this model offers: 24°, 36°, 50°; the GL135 adds 40°. |
Related Models In The LED Track Light
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
GL156 Questions
Does the GL156 need a ceiling cutout?
No. It is a surface track-mounted head, so it fits onto a rail without cutting the ceiling. The housing measures Ø66 x 155 mm.
Which beam angles can I order on the GL156?
15°, 24°, 36° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A COB platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the GL156 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the GL156?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The GL156
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
