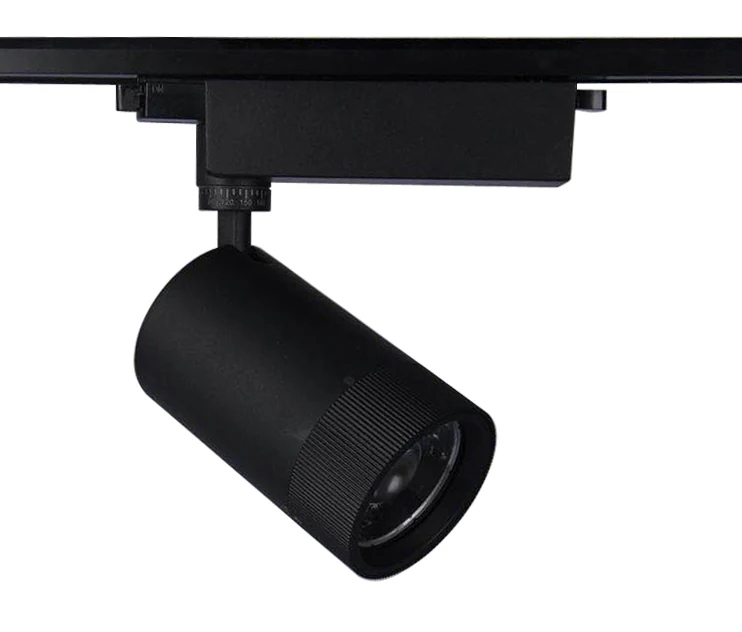

GL135 LED Track Spotlight 35 W
The GL135 is a surface track-mounted spotlight rated at 35 W, built on a COB light engine in a Ø90 x 148 mm aluminium housing. Beam angles of 15° and 40° are chosen per order line, so a single track run can carry several distributions. The aluminium body doubles as the heat path, which is why it is cast in house rather than bought in.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The GL135
- 2 beam options on one body: 15° and 40°
- No ceiling cutting required, the head mounts onto surface track
- 35 W rating suited to high ceilings in malls, supermarkets and atria
- COB light engine matched to the housing
- Aluminum body for passive heat management
- Overall size Ø90 x 148 mm
What It Fixes On Site
- Retrofit projects in listed or concrete ceilings
- Fixed downlights that no longer line up after a store reset
- Ceilings that cannot be cut for recessed fittings
- Accent light that needs to reach across a wide aisle
Published Figures For The GL135
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 35 W |
|---|---|
| Beam Angle | 15° and 40° |
| Dimensions (mm) | Ø90 x 148 |
| Ceiling Cutout (mm) | Not required, track mounted |
| LED Chip Platform | COB |
| Body Material | Aluminum |
| Mounting | Surface track-mounted |
| Model Reference | GL135 |
How It Is Built
- Light engine platform COB
- Die-cast aluminium housing produced in our own casting workshop
- Surface track-mounted installation
- Beam angle fixed per order line from 15° and 40°
- Passive cooling, no fan
Where The GL135 Is Used
Pop-up and seasonal retail
Fashion floor displays
Gallery and museum walls
Showroom vehicle and furniture lighting
Who Buys This Model
- Distributors serving shopfitters
- Retail chains that reset displays through the year
- Galleries, showrooms and exhibition spaces
- Projects with concrete or exposed service ceilings
Specifying and Installing It
- Fix the track run first, then clip the head on and slide it to position. No ceiling cutting is involved.
- Confirm the beam angle before the order is placed. 15° and 40° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The GL135 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The LED Track Light
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
GL135 Questions
Does the GL135 need a ceiling cutout?
No. It is a surface track-mounted head, so it fits onto a rail without cutting the ceiling. The housing measures Ø90 x 148 mm.
Which beam angles can I order on the GL135?
15° and 40°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A COB platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the GL135 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the GL135?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The GL135
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
