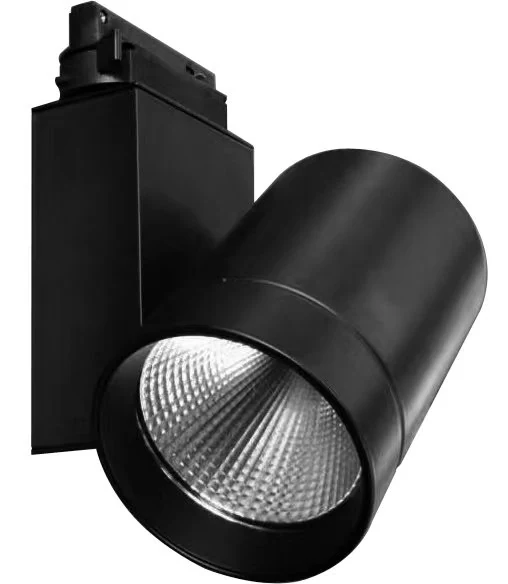

GL138 LED Track Spotlight 35 W
GL138 covers the 35 W step in the track range. The Ø94 x 140 mm aluminium body clips onto the rail without any ceiling cutting, and the optic is selected from 15°, 24°, 36° and 60°. Cooling is passive through the cast aluminium body, a design our own die-casting workshop produces to the same geometry each run.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The GL138
- 4 beam options on one body: 15°, 24°, 36° and 60°
- No ceiling cutting required, the head mounts onto surface track
- 35 W rating suited to high ceilings in malls, supermarkets and atria
- COB light engine matched to the housing
- Aluminum body for passive heat management
- Overall size Ø94 x 140 mm
What It Fixes On Site
- Fixed downlights that no longer line up after a store reset
- Ceilings that cannot be cut for recessed fittings
- Accent light that needs to reach across a wide aisle
- Retrofit projects in listed or concrete ceilings
Published Figures For The GL138
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 35 W |
|---|---|
| Beam Angle | 15°, 24°, 36° and 60° |
| Dimensions (mm) | Ø94 x 140 |
| Ceiling Cutout (mm) | Not required, track mounted |
| LED Chip Platform | COB |
| Body Material | Aluminum |
| Mounting | Surface track-mounted |
| Model Reference | GL138 |
How It Is Built
- Light engine platform COB
- Die-cast aluminium housing produced in our own casting workshop
- Surface track-mounted installation
- Beam angle fixed per order line from 15°, 24°, 36° and 60°
- Passive cooling, no fan
Where The GL138 Is Used
Fashion floor displays
Gallery and museum walls
Showroom vehicle and furniture lighting
Pop-up and seasonal retail
Who Buys This Model
- Retail chains that reset displays through the year
- Galleries, showrooms and exhibition spaces
- Projects with concrete or exposed service ceilings
- Distributors serving shopfitters
Specifying and Installing It
- Fix the track run first, then clip the head on and slide it to position. No ceiling cutting is involved.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 60° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The GL138 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The LED Track Light
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
GL138 Questions
Does the GL138 need a ceiling cutout?
No. It is a surface track-mounted head, so it fits onto a rail without cutting the ceiling. The housing measures Ø94 x 140 mm.
Which beam angles can I order on the GL138?
15°, 24°, 36° and 60°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A COB platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the GL138 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the GL138?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The GL138
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
