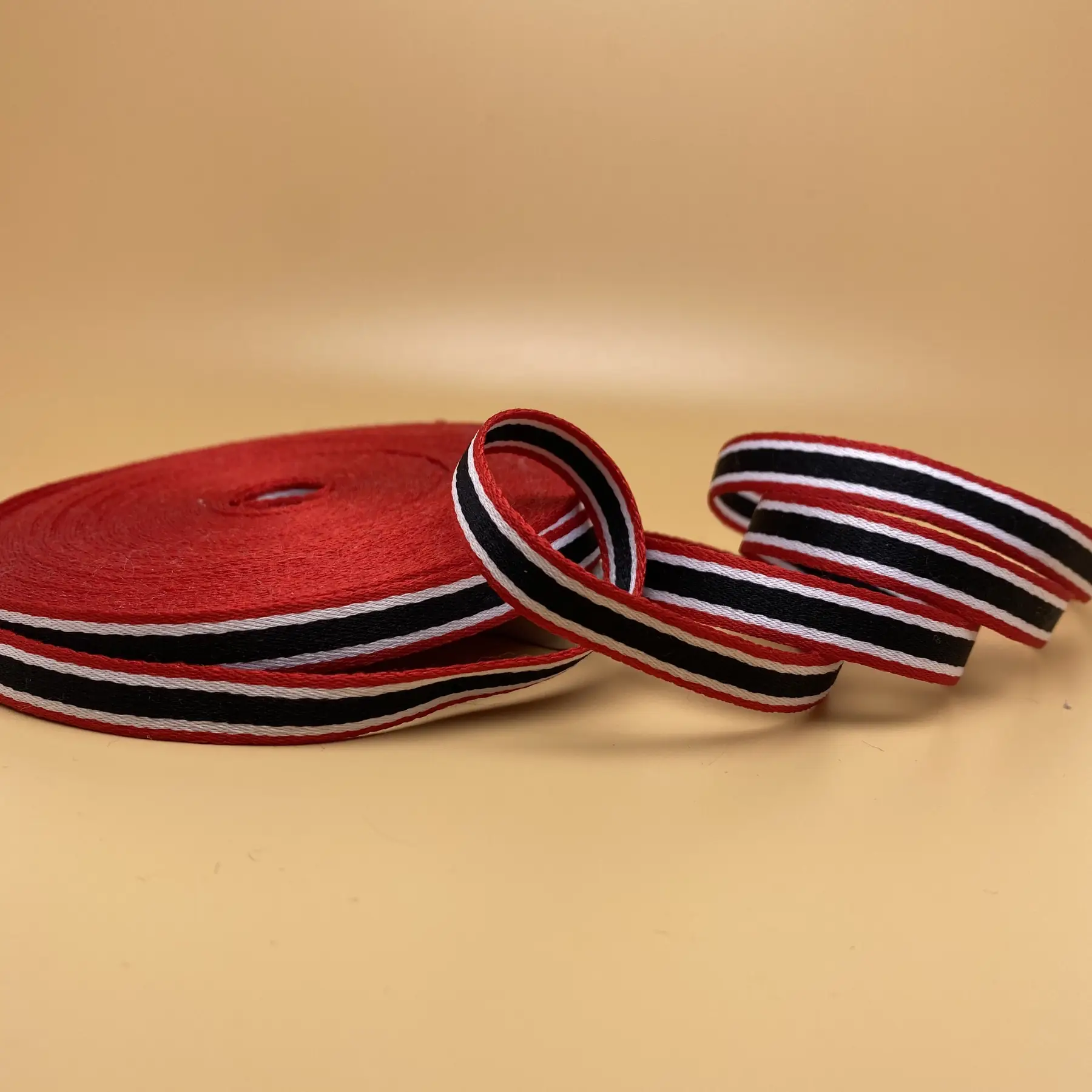

Polyester Webbing Tape No 9
Dimensionally stable polyester tape for straps that must hold their shape, their colour and their rated load outdoors.
What This Item Is
Polyester Webbing Tape No 9 comes off the same narrow fabric looms that have been running here since 1996. Any width, and a thickness from 0.65 mm up to 2.5 mm unless you need something outside that. Shade is agreed on a woven sample before the bulk lot runs, and that lot covers the entire order. Samples take 3 to 7 days and production 7 to 15 days once the sample is approved.
Key Benefits
- Smooth near-round filament cross section for a clean even face
- Pantone matched dyeing with the reference agreed before weaving starts
- Thickness woven from 0.65 mm to 2.5 mm against your own drawing
- Woven to your width and to a thickness anywhere from 0.65 mm to 2.5 mm
- Pantone colour matching against a number or against a swatch you send us
Problems It Solves
- Width variation that stops hardware sliding cleanly on the finished strap
- Repeat orders that no longer match the original because nothing was archived
- Branding that wears off a component long before the product does
Who It Is For
- Outdoor brands whose product sits in sunlight on a retail rack
- Factories that buy narrow fabric to a drawing rather than from a catalogue
- Buyers who need the second order to match the first exactly
Application Scenarios
- Pet collars and leads that get washed regularly
- Automotive interior pulls and retention loops
- Furniture and upholstery support webbing
- Backpack shoulder straps and sternum straps
Technical Features
- SGS testing available before despatch
- Sample lead time of 3 to 7 days
- Production lead time of 7 to 15 days
- Moisture regain of roughly 0.4 per cent, so wet strength loss stays small
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Polyester Webbing |
|---|---|
| Catalogue Reference | polyester-webbing-7 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polyester filament yarn, dyed to a Pantone reference or to your swatch
- Optional matt finish using a titanium dioxide matting agent added before spinning
- Optional bright white achieved with a whitening agent rather than surface bleach
Quality Control
- Dye lot reserved for the full order so inter-batch variation is avoided
- Shade checked at the start, middle and end of each roll against the approved swatch
- Width and thickness measured across the tape, not only at the selvedge
- SGS testing arranged on request before shipment
What You Can Change
- Pantone colour matching or matching to a physical sample you post to us
- Computer jacquard logo woven into the tape
- Silk screen printing applied after weaving
- Roll length and carton count to suit your cutting line
How This Item Is Made
- Yarn selection and lot reservation
- Colour matching and dye batch approval
- Warping and weaving
- Heat setting
- Width and thickness inspection
- Rolling, measuring and packing
How It Compares
Polyester holds its length and colour far better outdoors. Polypropylene is lighter and cheaper but its melting point is only 165 to 173 degrees Celsius and it ages faster in light.
Polyester is stronger wet than dry cotton and does not mildew. Cotton wins on hand feel and on anything that will be dyed or printed by the customer later.
Nylon takes up around 4 per cent moisture against polyester's 0.4 per cent, so nylon straps go heavy and stretch in the wet while polyester holds.
Use Guide
- Specify roll length to match your cutting table so you waste less tail
- Send the width, thickness and a colour reference; a Pantone number is faster than a description
- Ask for the sample roll before the bulk dye lot is committed
- Keep finished rolls out of direct light during storage to avoid yellowing
Other Polyester Tape References
Related Products
Questions Buyers Ask About Polyester Webbing Tape No 9
What is the minimum order for polyester webbing
1000 metres per colour and width for standard production. Sample lengths are available in 3 to 7 days so you can test before committing.
Does polyester webbing stretch under load
Far less than nylon or polypropylene. Polyester's low moisture regain of about 0.4 per cent means it behaves almost the same wet as dry, so a strap tensioned in the rain does not lengthen the way a nylon one will.
Can you supply a test report
SGS testing is arranged on request before shipment. Tell us at quotation stage which properties need to be reported.
Will a repeat order match this one
Yes, provided you quote the same order reference. The colour reference and any jacquard plate stay on file here for exactly that reason.
Do you weave to a drawing
That is the normal case. Width and thickness come from your specification rather than from a standard size list.
Ask About Polyester Webbing Tape No 9
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
