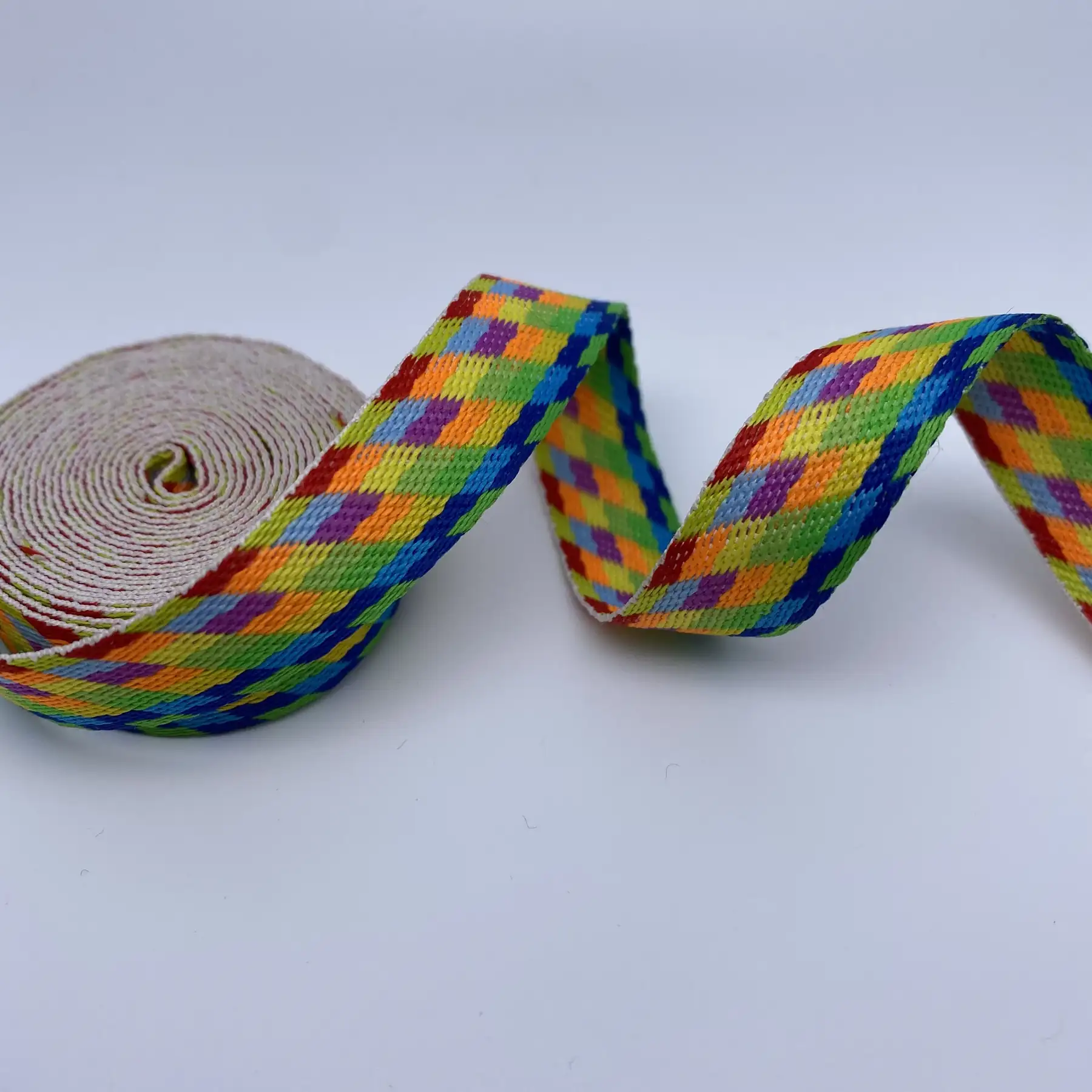

Jacquard Webbing Tape No 26
Your logo woven into the strap itself on computer jacquard looms, so the branding cannot peel, crack or wash off.
What This Item Is
Jacquard Webbing Tape No 26 is produced to a customer drawing, not to a catalogue size. Width is made to request and thickness sits anywhere between 0.65 mm and 2.5 mm. We match colour to Pantone or to your physical sample, then hold one dye lot across the full quantity. First samples are with you inside a week, with production following in 7 to 15 days.
Key Benefits
- Woven to your width and to a thickness anywhere from 0.65 mm to 2.5 mm
- Pantone colour matching against a number or against a swatch you send us
- One dye lot reserved for the whole order so shade does not drift mid-run
- Computer jacquard logo weaving available on the same tape
- Screen printing available after weaving when tooling cannot be justified
Problems It Solves
- Width variation that stops hardware sliding cleanly on the finished strap
- Repeat orders that no longer match the original because nothing was archived
- Branding that wears off a component long before the product does
Who It Is For
- Brands running their own label through a contract assembler
- Production planners who need a delivery date quoted with the price
- Brands that want identification built into the component, not stuck on it
Application Scenarios
- Branded bag handles and shoulder straps
- Mobile phone slings and camera straps
- Lanyards for events and corporate identity
- Pet collars and leads carrying a brand name
Technical Features
- Thickness woven from 0.65 mm to 2.5 mm, or to your own figure
- Width made to your request rather than to a fixed catalogue range
- Pantone matched colour, or matched to a physical swatch
- Computer jacquard logo weaving on the same construction
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Jacquard Webbing |
|---|---|
| Catalogue Reference | polyester-webbing-24 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polyester filament ground for crisp pattern edges and colour hold
- Cotton ground where a matt natural face is wanted
- Polypropylene ground for the lightest branded strap
- Network intermingled yarns that resist fraying during weaving
Quality Control
- Woven strike-off approved in writing before the production run opens
- Pattern pitch measured along the roll, not only at the leading end
- Ground shade and pattern shade checked against separate approved swatches
- Plate archived under your order reference for future repeats
What You Can Change
- Your artwork converted to a jacquard plate at the width you need
- Up to several pattern colours against a dyed ground
- Combination of woven pattern and screen printed detail on one tape
- Pattern repeat pitch set to your cutting length so the logo lands centred
How This Item Is Made
- Artwork review and pattern pitch setting
- Jacquard plate making
- Threading and loom adjustment
- Sample weaving and approval
- Production weaving
- Inspection, rolling and packing
How It Compares
Printing is cheaper and faster for text and flat shapes, and for many jobs it is the sensible answer. Jacquard costs more up front because of the plate but the mark is structural, so it survives washing and abrasion.
A label has to be attached, which adds an operation and an edge that can catch or fray. Jacquard puts the same information into the strap you were already using.
Embroidery adds thickness and stitch holes. Jacquard keeps the tape at one thickness across its width, which matters where the strap passes through a buckle.
Use Guide
- Allow extra days on a first order for plate making, threading and loom setting
- Quote the same plate reference on repeat orders and the pattern will match
- Send vector artwork; a low resolution image cannot be converted cleanly to a plate
- Tell us the finished cut length so we can centre the repeat on every piece
Other Jacquard Tape References
Related Products
Questions Buyers Ask About Jacquard Webbing Tape No 26
How fine can the woven detail be
It depends on the tape width and the yarn count. Fine serif text on a narrow tape will thicken as it weaves. Send the artwork and the intended width together and we will tell you before you pay for a plate.
Will my second order look the same as the first
Yes, provided you quote the same plate reference and we reserve the dye lot for the ground. We keep the plate on file for exactly this reason.
Can you supply a test report
SGS testing is arranged on request before shipment. Tell us at quotation stage which properties need to be reported.
Will a repeat order match this one
Yes, provided you quote the same order reference. The colour reference and any jacquard plate stay on file here for exactly that reason.
Do you weave to a drawing
That is the normal case. Width and thickness come from your specification rather than from a standard size list.
Ask About Jacquard Webbing Tape No 26
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
