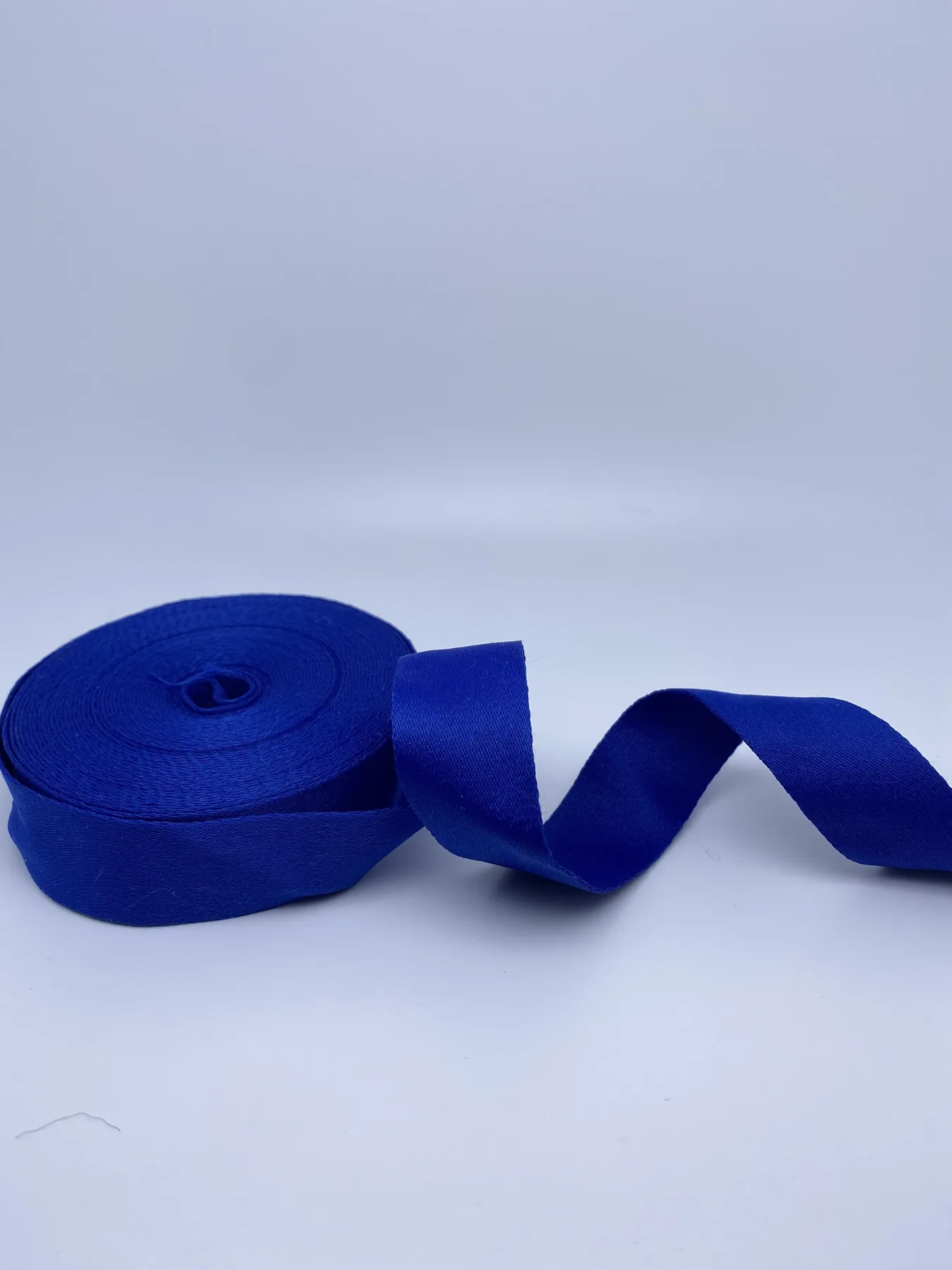

Polyester Webbing Tape No 25
Dimensionally stable polyester tape for straps that must hold their shape, their colour and their rated load outdoors.
What This Item Is
Polyester Webbing Tape No 25 is woven to order at the width and thickness you specify rather than picked from a stock range. Thickness runs from 0.65 mm to 2.5 mm, or to your own figure, and width is set by your drawing. Pantone matching is standard, and reserving a single dye lot is what keeps the shade steady from first roll to last. Samples take 3 to 7 days and production 7 to 15 days once the sample is approved.
Key Benefits
- Smooth near-round filament cross section for a clean even face
- Pantone matched dyeing with the reference agreed before weaving starts
- Thickness woven from 0.65 mm to 2.5 mm against your own drawing
- Woven to your width and to a thickness anywhere from 0.65 mm to 2.5 mm
- Pantone colour matching against a number or against a swatch you send us
Problems It Solves
- Shade drift between the sample roll and the production run
- Shade that drifts between the approved sample and the delivered rolls
- Suppliers who quote a price without committing to a date
Who It Is For
- Outdoor brands whose product sits in sunlight on a retail rack
- Factories that buy narrow fabric to a drawing rather than from a catalogue
- Buyers who need the second order to match the first exactly
Application Scenarios
- Pet collars and leads that get washed regularly
- Automotive interior pulls and retention loops
- Furniture and upholstery support webbing
- Backpack shoulder straps and sternum straps
Technical Features
- Smooth near-round filament cross section for a clean even face
- Pantone matched dyeing with the reference agreed before weaving starts
- Thickness woven from 0.65 mm to 2.5 mm against your own drawing
- Thickness woven from 0.65 mm to 2.5 mm, or to your own figure
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Polyester Webbing |
|---|---|
| Catalogue Reference | polyester-webbing-22 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polyester filament yarn, dyed to a Pantone reference or to your swatch
- Optional matt finish using a titanium dioxide matting agent added before spinning
- Optional bright white achieved with a whitening agent rather than surface bleach
Quality Control
- Dye lot reserved for the full order so inter-batch variation is avoided
- Shade checked at the start, middle and end of each roll against the approved swatch
- Width and thickness measured across the tape, not only at the selvedge
- SGS testing arranged on request before shipment
What You Can Change
- Computer jacquard logo woven into the tape
- Silk screen printing applied after weaving
- Roll length and carton count to suit your cutting line
- Any width and any thickness between 0.65 mm and 2.5 mm
How This Item Is Made
- Yarn selection and lot reservation
- Colour matching and dye batch approval
- Warping and weaving
- Heat setting
- Width and thickness inspection
- Rolling, measuring and packing
How It Compares
Polyester holds its length and colour far better outdoors. Polypropylene is lighter and cheaper but its melting point is only 165 to 173 degrees Celsius and it ages faster in light.
Polyester is stronger wet than dry cotton and does not mildew. Cotton wins on hand feel and on anything that will be dyed or printed by the customer later.
Nylon takes up around 4 per cent moisture against polyester's 0.4 per cent, so nylon straps go heavy and stretch in the wet while polyester holds.
Use Guide
- Specify roll length to match your cutting table so you waste less tail
- Send the width, thickness and a colour reference; a Pantone number is faster than a description
- Ask for the sample roll before the bulk dye lot is committed
- Keep finished rolls out of direct light during storage to avoid yellowing
Other Polyester Tape References
Related Products
Questions Buyers Ask About Polyester Webbing Tape No 25
What is the minimum order for polyester webbing
1000 metres per colour and width for standard production. Sample lengths are available in 3 to 7 days so you can test before committing.
Does polyester webbing stretch under load
Far less than nylon or polypropylene. Polyester's low moisture regain of about 0.4 per cent means it behaves almost the same wet as dry, so a strap tensioned in the rain does not lengthen the way a nylon one will.
Can our logo be added to this tape
Either woven in with a computer jacquard plate, which survives washing and abrasion, or screen printed after weaving, which costs less to set up on short runs.
How is this item packed for export
50 yards per roll and 30 rolls per carton as standard, with some items on 500 yard rolls. We pack to your own list when you have one.
Which shipping and payment terms do you work on
EXW, FOB or CIF for shipping. Payment by T/T, Western Union or PayPal.
Ask About Polyester Webbing Tape No 25
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
