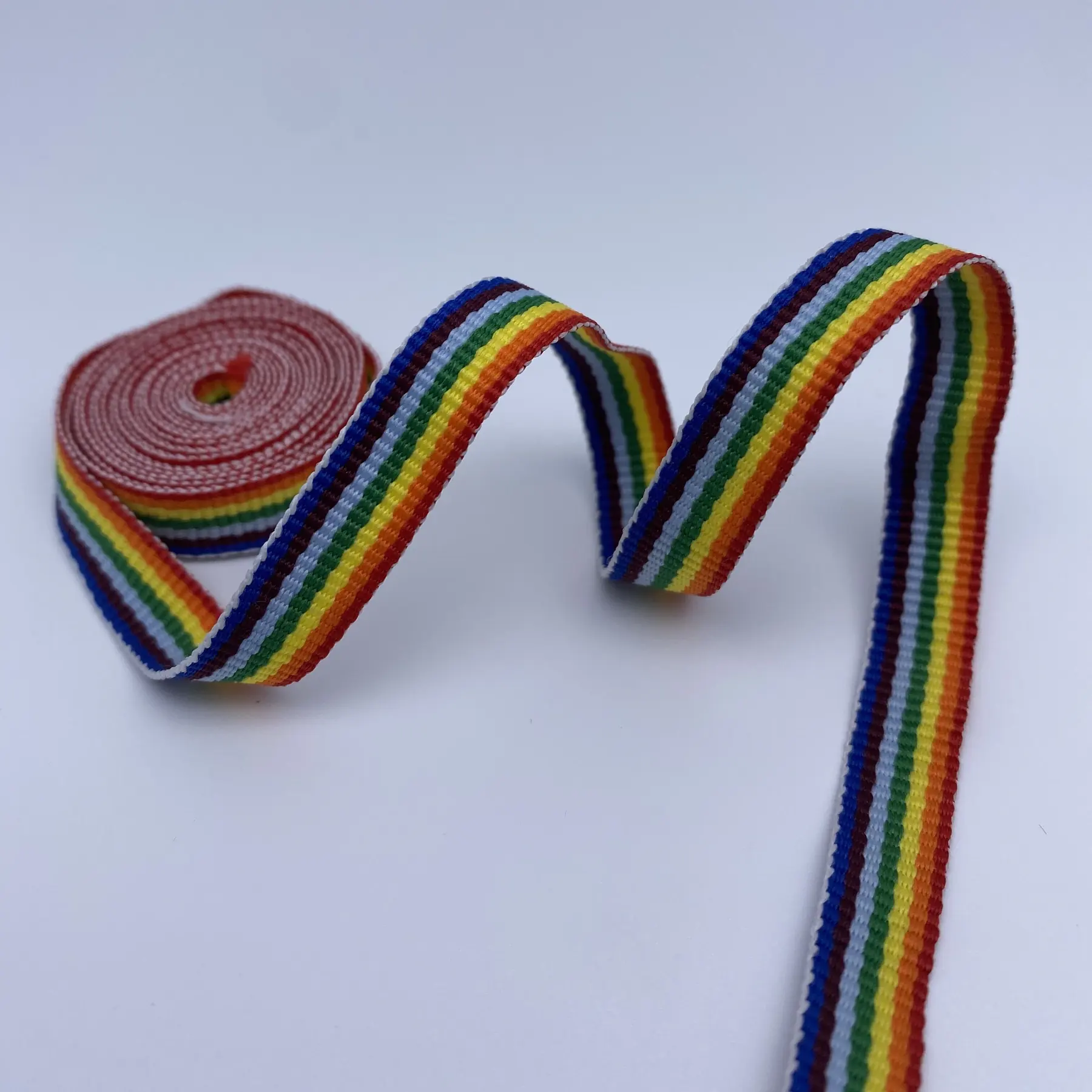

Polyester Webbing Tape No 18
Dimensionally stable polyester tape for straps that must hold their shape, their colour and their rated load outdoors.
What This Item Is
Polyester Webbing Tape No 18 is woven to order at the width and thickness you specify rather than picked from a stock range. Width is made to request and thickness sits anywhere between 0.65 mm and 2.5 mm. We match colour to Pantone or to your physical sample, then hold one dye lot across the full quantity. Sampling runs 3 to 7 days; the production window is 7 to 15 days from approval.
Key Benefits
- Computer jacquard logo weaving available on the same tape
- Screen printing available after weaving when tooling cannot be justified
- SGS testing arranged on request before shipment
- Samples in 3 to 7 days and production in 7 to 15 days
- Packed 50 yards per roll and 30 rolls per carton, or to your own packing list
Problems It Solves
- Width variation that stops hardware sliding cleanly on the finished strap
- Repeat orders that no longer match the original because nothing was archived
- Branding that wears off a component long before the product does
Who It Is For
- Harness and lanyard assemblers who need repeatable width and thickness
- Automotive interior suppliers fitting trim, pulls and retention straps
- Outdoor brands whose product sits in sunlight on a retail rack
Application Scenarios
- Pet collars and leads that get washed regularly
- Automotive interior pulls and retention loops
- Furniture and upholstery support webbing
- Backpack shoulder straps and sternum straps
Technical Features
- Thickness woven from 0.65 mm to 2.5 mm, or to your own figure
- Width made to your request rather than to a fixed catalogue range
- Pantone matched colour, or matched to a physical swatch
- Computer jacquard logo weaving on the same construction
What Is On The Specification Sheet
Everything below comes from our own specification table for this item. Width is made to your request, so it is quoted rather than listed.
| Product Type | Polyester Webbing |
|---|---|
| Catalogue Reference | polyester-webbing-16 |
| Material | PP, cotton, polyester, nylon; eco-friendly and non-toxic yarns |
| Colour | Pantone matched or to your own reference |
| Thickness | 0.65 mm to 2.5 mm or custom |
| Width | Made to your request |
| Logo Method | Computer jacquard |
| Testing | SGS |
| OEM | Welcome |
| Payment Terms | T/T, Western Union, PayPal |
| Shipping Terms | EXW, FOB, CIF |
| Sample Time | 3 to 7 days |
| Production Time | 7 to 15 days |
| Packing | 50 yards for one roll 30 rolls for one carton or by your request |
| Minimum Order | 1000 metres |
Materials
- Polyester filament yarn, dyed to a Pantone reference or to your swatch
- Optional matt finish using a titanium dioxide matting agent added before spinning
- Optional bright white achieved with a whitening agent rather than surface bleach
Quality Control
- Dye lot reserved for the full order so inter-batch variation is avoided
- Shade checked at the start, middle and end of each roll against the approved swatch
- Width and thickness measured across the tape, not only at the selvedge
- SGS testing arranged on request before shipment
What You Can Change
- Any width and any thickness between 0.65 mm and 2.5 mm
- Pantone colour matching or matching to a physical sample you post to us
- Computer jacquard logo woven into the tape
- Silk screen printing applied after weaving
How This Item Is Made
- Yarn selection and lot reservation
- Colour matching and dye batch approval
- Warping and weaving
- Heat setting
- Width and thickness inspection
- Rolling, measuring and packing
How It Compares
Polyester holds its length and colour far better outdoors. Polypropylene is lighter and cheaper but its melting point is only 165 to 173 degrees Celsius and it ages faster in light.
Polyester is stronger wet than dry cotton and does not mildew. Cotton wins on hand feel and on anything that will be dyed or printed by the customer later.
Nylon takes up around 4 per cent moisture against polyester's 0.4 per cent, so nylon straps go heavy and stretch in the wet while polyester holds.
Use Guide
- Ask for the sample roll before the bulk dye lot is committed
- Keep finished rolls out of direct light during storage to avoid yellowing
- Specify roll length to match your cutting table so you waste less tail
- Send the width, thickness and a colour reference; a Pantone number is faster than a description
Other Polyester Tape References
Related Products
Questions Buyers Ask About Polyester Webbing Tape No 18
Will the colour fade in sunlight
Polyester has light resistance second only to acrylic among common fibres. After 600 hours of sun exposure the strength loss is around 60 per cent, comparable to cotton, and shade holds better than on most dyed synthetics.
Can you match a Pantone number exactly
We match to Pantone or to a physical swatch you post to us, and we send a woven sample for written approval before the bulk dye lot runs. Approving the woven sample rather than a screen image is what removes most colour disputes.
Can you supply a test report
SGS testing is arranged on request before shipment. Tell us at quotation stage which properties need to be reported.
Will a repeat order match this one
Yes, provided you quote the same order reference. The colour reference and any jacquard plate stay on file here for exactly that reason.
Do you weave to a drawing
That is the normal case. Width and thickness come from your specification rather than from a standard size list.
Ask About Polyester Webbing Tape No 18
Quote the catalogue reference with your width, thickness and colour and we will come back with price, minimum quantity and a delivery date.
