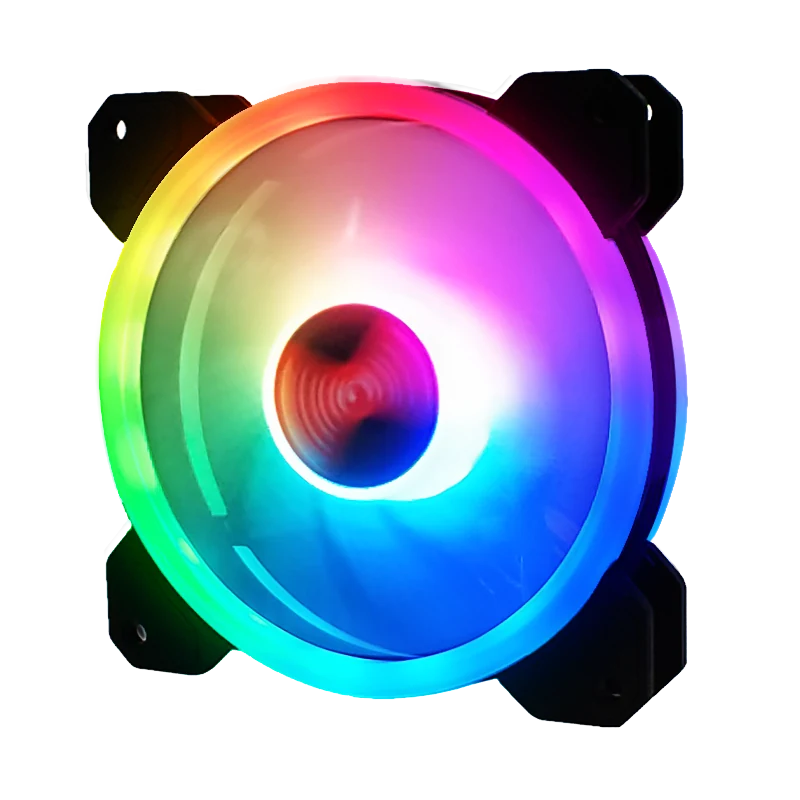

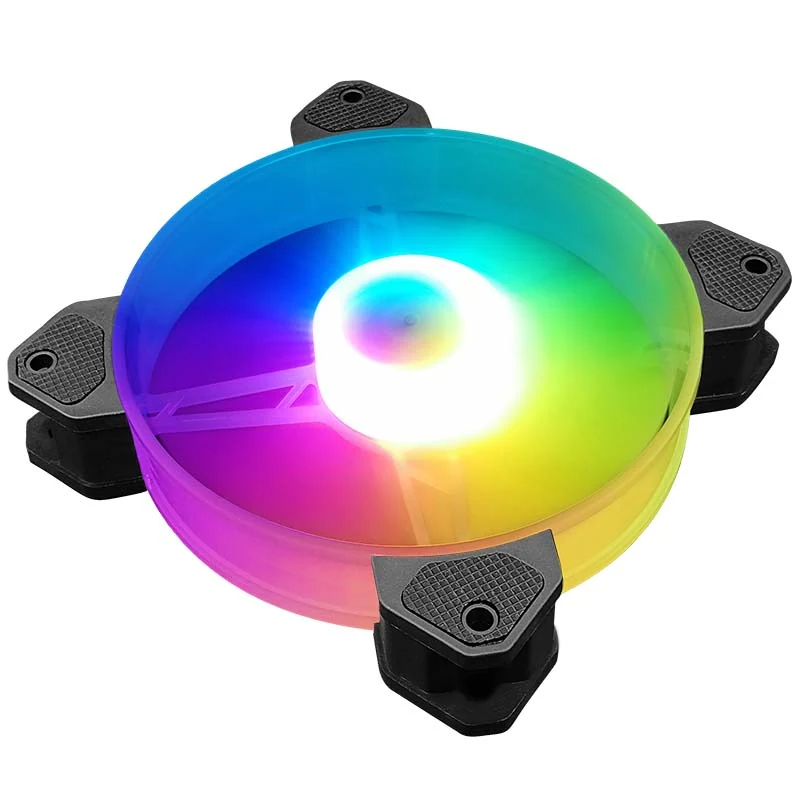

Model F1 120mm RGB Case Fan
Model F1 120mm RGB Case Fan is a 120*120*25mm case fan on a hydraulic bearing, rated DC 12V and turning at 1100±10%RPM.
- Dimension120*120*25mm
- Speed1100±10%RPM
- Max Air Flow35.85CFM(ft/min)
What This Model Is and What It Takes
Model F1 120mm RGB Case Fan is a 120*120*25mm case fan on a hydraulic bearing, rated DC 12V and turning at 1100±10%RPM. It moves 35.85CFM(ft/min) at 1.26mm-HO static pressure with an average noise level of AVG <=23.5dB(A). The – Big 4P L=430mm lead connects to a standard header.
Technical Features
- Bearing Type: Hydraulic
- Rated Voltage: DC 12V
- Operating Voltage: DC 5V-13.8V
- Start-up Voltage: DC 5V
- Input Current: 0.18±20%A
- Input Power: 2.4W
The Figures That Decide Whether This Model Fits Your Build
- Airflow of 35.85CFM(ft/min) and static pressure of 1.26mm-HO are published, not estimated
- Average acoustic noise is stated at AVG <=23.5dB(A) so a quiet-build specification can be held
- Hydraulic bearing construction is declared, which is what determines service life
- Wide operating voltage of DC 5V-13.8V tolerates header variation between motherboards
- Carton data (for 96pcs) 460*295*385mm supports direct freight calculation
Buyers This Model Is Specified By
- Chassis buyers who want the fans loaded in the same container
- Retailers selling RGB fans as an add-on SKU
- Repair shops replacing noisy or failed case fans
- Assemblers finishing a lit build to a fixed fan count
- Lighting that does not match the rest of the chassis because it came from another supplier
- Bearing type left unspecified, so service life cannot be estimated
- Cable length that does not reach the header in a full tower
- Fans that are louder in the finished build than the datasheet suggested
Where This Model Is Used
Rear exhaust on an office tower that runs warm
Retail add-on packs sold beside the chassis
Service replacement for a failed original fan
Front intake positions in a mesh or glass gaming tower
Full Factory Specification Table
Reproduced from the factory specification sheet for this model. Figures the factory does not publish are left out rather than estimated.
| Model No | RGB F1 |
|---|---|
| Model Name | RGB single strip RGB fan |
| Dimension | 120*120*25mm |
| Bearing Type | Hydraulic |
| Rated Voltage | DC 12V |
| Operating Voltage | DC 5V-13.8V |
| Start-up Voltage | DC 5V |
| Input Current | 0.18±20%A |
| Input Power | 2.4W |
| Speed | 1100±10%RPM |
| Max Air Flow | 35.85CFM(ft/min) |
| Max Air Pressure | 1.26mm-HO |
| Acoustic Noise | AVG <=23.5dB(A) |
| Lead Wire | – Big 4P L=430mm |
| Operating Temperature | 10°C~70°C/66%(RH) |
| Colour Box Size | 122*26*140mm |
| Outer Carton Size | (for 96pcs) 460*295*385mm |
Materials
- Bearing: Hydraulic
- Frame size: 120*120*25mm
- Lead: – Big 4P L=430mm
Certifications
- Produced in ISO 9001:2000 and ISO 14001:2004 certified joint venture plants
How This Model Is Made
- Step 01
Frame and impeller moulded
Frame and impeller moulded
- Step 02
Motor and bearing assembled
Motor and bearing assembled
- Step 03
LED ring fitted and wired
LED ring fitted and wired
- Step 04
Speed, airflow and noise checked again...
Speed, airflow and noise checked against the rated figures
- Step 05
Packed into a 122*26*140mm box
Packed into a 122*26*140mm box
- Step 06
Cartoned as (for 96pcs) 460*295*385mm
Cartoned as (for 96pcs) 460*295*385mm
What Is Checked and When
- Incoming steel and plastic checked against the recorded grade before production
- In-process checks on stamping, welding and surface finish at the line
- Assembled unit function checked before packing
- Packed carton verified against the recorded packing specification and carton size
- QC officers carry out inspection before shipment as stated by the factory
What Can Be Changed on This Model
- Lighting mode and colour specified at order stage
- Lead length and connector type specified per order
- Retail colour box printed with your own artwork
- Bulk packing for assembly lines rather than retail
How This Compares With the Alternatives
| An unspecified RGB fan | Rated speed 1100±10%RPM, airflow 35.85CFM(ft/min) and noise AVG <=23.5dB(A) are published rather than described. |
|---|---|
| Fans sourced from a separate supplier | Loading the fans in the same container as the chassis keeps the build kit complete and the lighting consistent across a fleet. |
Checks to Run Before You Place the Order
- Populate intake positions first, then exhaust, before adding decorative positions
- Check the lead type – Big 4P L=430mm against your motherboard header or fan hub
- Treat the published AVG <=23.5dB(A) as a single-fan figure when planning a multi-fan build
- Use (for 96pcs) 460*295*385mm for freight calculation
Model F1 120mm RGB Case Fan Questions
How loud is this fan in a finished build?
Average acoustic noise is published at AVG <=23.5dB(A) at 1100±10%RPM. That is a single-fan figure, so a six-fan build will measure higher.
What connector does it use?
The lead is – Big 4P L=430mm. Confirm the header type on your motherboard or hub before ordering in volume.
What airflow does it move?
Maximum air flow is 35.85CFM(ft/min) at 1.26mm-HO, at DC 12V.
How many pieces per carton?
Outer carton data is (for 96pcs) 460*295*385mm, and the colour box is 122*26*140mm.
Can these ship together with a chassis order?
Yes. Fans are loaded in the same container as the cases on one packing list, which is the main reason buyers take both from one supplier.
