80cm Rotary Tiller 1WG4Q-80 Gasoline or Diesel
The 1WG4Q-80 is a walk behind rotary tiller with an 80cm working width, built for home growers, smallholders and rental fleets who have to break and turn soil on a plot too large for hand tools and too small to justify a tractor. It is offered with either a 170F gasoline or a 178 diesel engine, rated 4.0/4.6kW with a maximum output of 7HP or 8HP, so a distributor can match the fuel that their market already services. The front type layout works to a depth of 20 to 30cm and the gearbox offers rotary tillage, travel gear, park and reverse, which means the machine drives itself between beds instead of being wrestled. Because it is engine powered rather than electric, it works anywhere on the plot without a cable back to an outlet.
- 80cm working width covers a home plot or market garden bed in far fewer passes than a compact hand held tiller
- 20 to 30cm working depth reaches below the compacted layer rather than only stirring the surface
- Choice of 170F gasoline or 178 diesel engine, so importers can stock the fuel type their service network already supports
- Travel gear and reverse in the shift pattern let the operator reposition the machine without lifting it
- Park position holds the machine safely at the headland while the operator adjusts depth or clears trash
- Petrol or diesel power means no cable and no outlet, so the far corner of the plot is worked the same as the near one
Product Gallery
Specifications
| Model No | 1WG4Q-80 |
|---|---|

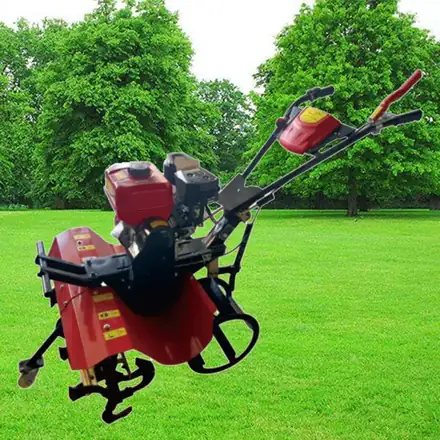

| Engine Type | 170F Gasoline / 178 diesel engine |
| Structure | Front type |
| Engine Configuration | Air-cooled, four-stroke, single-cylinder |
| Start Mode | Manual start |
| Rated Power | 4.0/4.6kW |
| Max Output | 7HP/8HP |

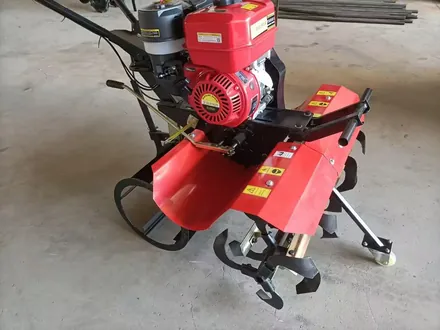

| Shift | Rotary tillage / travel gear / park / reverse |
| Working Width | 80cm |
| Working Depth | 20-30cm |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Home growers preparing vegetable beds at the start of the season
- Market gardeners turning over plots between crop rotations
- Smallholdings where a tractor mounted implement cannot turn in the available headland
- Equipment rental fleets hiring tillers by the day through the spring rush
- Landscaping crews breaking ground before turf or planting work
Who It Is For
- Importers and distributors stocking walk behind tillers for the spring season
- Garden machinery and agricultural dealers
- Equipment hire and rental companies
- Retail chains carrying a garden power equipment range
- Landscaping and groundworks contractors
Problems It Solves
- Hand digging a plot of this size takes days of labour that a grower or contractor cannot recover in price
- Electric and manual tillers lack the power for firm or previously uncultivated ground
- Corded machines are limited by cable reach, which rules out the far end of most plots
- A tiller without a travel gear has to be dragged between beds, which tires the operator before the work starts
- Markets split between petrol and diesel service networks force distributors to choose, and a dual engine option removes that risk
Technical Features
- Front type rotary tiller layout
- 170F gasoline or 178 diesel engine option
- Air-cooled, four-stroke, single-cylinder engine
- Rated power 4.0/4.6kW with maximum output of 7HP/8HP
- Shift pattern covering rotary tillage, travel gear, park and reverse
- Manual start
- 80cm working width at 20 to 30cm working depth
Quality Control
- Incoming inspection on engines, gearboxes and steel before they reach the line
- In process checks during assembly of the rotor and transmission
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Gasoline or diesel engine specified per order
- Buyer branding, colour and decal set
- Manual and packaging artwork in the destination market language
- Retail colour box or bulk carton packing to suit the sales channel
How It Compares
Against Electric or manual cultivator
This machine runs on its own engine, so there is no cable limiting reach, and it has the power for ground that an electric unit only scratches.
Against Mini cultivator with a narrow rotor
An 80cm width covers a bed in a single pass where a narrow machine needs two or three, which shortens the job on every plot.
Against Tractor mounted rotary tiller
A walk behind machine turns inside a small headland and works between existing beds, where a tractor implement cannot be manoeuvred at all.
Use Guide
- Check engine oil and fuel level before the first start of the season
- Select park when stopping at the headland so the machine cannot creep
- Start shallow on firm or uncultivated ground and increase depth on a second pass rather than forcing the first
- Use travel gear to move between beds instead of dragging the machine with the rotor engaged
- Stop the engine before clearing trash or roots from the rotor, and never use a hand
- Clean the rotor, grease the shaft and drain or stabilise fuel before seasonal storage
Rotary tiller for home Buyer Questions
What is the minimum order quantity?
One 20ft container is our standard MOQ. A one piece sample order is also acceptable if you want to test the machine before committing.
How long is the lead time?
25 to 35 days for one 40HQ container. A sample order ships in 1 to 7 days.
Can I choose between the gasoline and diesel engine?
Yes. This model is offered with a 170F gasoline engine or a 178 diesel engine, rated 4.0/4.6kW with a maximum output of 7HP/8HP.
How deep and how wide does it work?
The working width is 80cm and the working depth is 20 to 30cm.
Can the machine be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
How are spare parts handled after delivery?
Within the warranty period, parts needed because of a quality problem are supplied free of charge. Outside the warranty period, spare parts are sold at cost price.
Which port do you ship from and what payment terms apply?
Ningbo or Shanghai, with payment by Western Union, PayPal or T/T depending on the order quantity.
