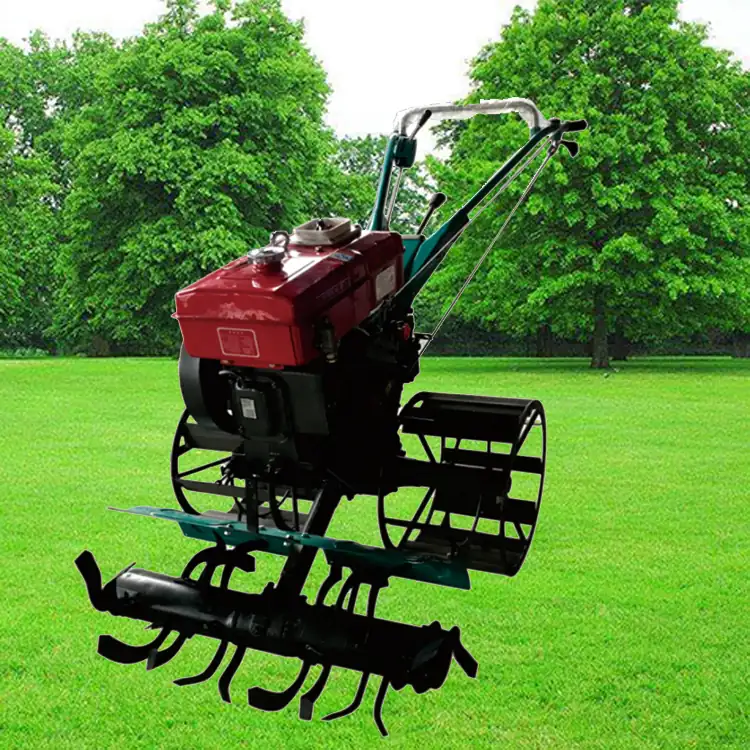

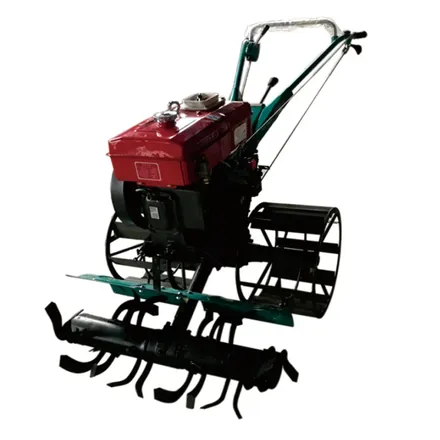

1WG6 4×4 Mini Farm Tractor 6.47kW Diesel With 820mm Working Width
The 1WG6 is a 4×4 mini farm tractor for smallholders, cooperatives and dealers whose customers need diesel torque and a gear drive but have no room or budget for a full size tractor. An R185 single cylinder forced air cooled four stroke diesel engine produces 6.47kW at 2200r/min and drives through a gear transmission with three forward gears, neutral and reverse. It cultivates 820mm wide at a working depth of 50 to 150mm, and at 240kg net it carries enough weight to hold that depth instead of riding up out of hard ground. Forced air cooling removes the radiator and coolant that fail first in dusty field conditions, and an 8.5L tank with a fuel consumption of 10 to 20g/kw.h keeps refuelling stops out of the working day.
- Diesel torque at 2200r/min pulls through heavy ground where a high revving petrol unit loses depth
- 240kg net weight holds the 50 to 150mm working depth instead of skipping across hard ground
- 820mm working width covers a bed or a row in a single pass
- Forced air cooling means no radiator, hoses or coolant to fail in dust and heat
- Gear transmission with a reverse gear lets the operator back out of a headland instead of manhandling 240kg
- 8.5L fuel tank with 10-20g/kw.h consumption keeps the machine working through a shift
Product Gallery
Specifications
| Model No | 1WG6 |
|---|---|
| Engine Type | R185, 1-cylinder forced air-cooling, 4-stroke, diesel motor |
| Transmission Mode | Gear |
| Gear Position | -1, 0, 1, 2, 3 |
| Fuel Consumption | 10-20 g/kw.h |
| Start Model | Manual start |
| Fuel Tank Capacity | 8.5L |
| Working Width | 820mm |
| Working Depth | 50-150mm |
| Product Size | 1950*1110*1200mm |
| Maximum Power | 6.47kw at 2200r/min |
| Net Weight | 240kg |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Smallholder farms preparing seedbeds for row crops
- Orchard and plantation rows too narrow for a full size tractor
- Dusty or hot climates where liquid cooling systems cause downtime
- Cooperatives sharing one machine across several member plots
- Dealers supplying farmers who are moving up from a walk behind petrol cultivator
Who It Is For
- Importers and distributors stocking compact diesel agricultural machinery
- Agricultural machinery dealers and farm supply chains
- Smallholder farms and farming cooperatives
- Plantation and orchard operators
- Agricultural equipment rental and contract cultivation businesses
Problems It Solves
- Petrol cultivators run out of torque in heavy soil and force shallow repeat passes
- Light machines ride up out of hard ground and never reach the depth the crop needs
- Radiators and coolant hoses are the first failure in dusty field work; air cooling removes them
- A full size tractor cannot turn in orchard rows or small plots and costs many times as much
- Machines without reverse have to be dragged out of a corner by hand, which is impractical at 240kg
Technical Features
- R185 single cylinder forced air cooled four stroke diesel engine
- Maximum power 6.47kw at 2200r/min
- Gear transmission with gear positions -1, 0, 1, 2, 3
- Manual start
- Working width 820mm at a working depth of 50-150mm
- 8.5L fuel tank capacity with fuel consumption of 10-20g/kw.h
- Overall size 1950*1110*1200mm at 240kg net weight
Quality Control
- Incoming inspection on diesel engines, gearboxes and steel before they reach the line
- In process checks during frame welding and gear transmission assembly
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Implement configuration discussed at quotation stage
- Manual and packaging artwork in the destination market language
How It Compares
Against Petrol walk behind tiller
A petrol tiller is lighter and cheaper to ship. This diesel machine makes 6.47kW at 2200r/min and weighs 240kg, which is what holds a 150mm working depth in heavy ground.
Against Full size farm tractor
A full size tractor covers more ground but needs headland room and far more capital. At 1950*1110*1200mm this unit works plots and orchard rows a big tractor cannot enter.
Against Liquid cooled compact tractor
Forced air cooling removes the radiator, hoses and coolant, which are the parts that strand a machine in dusty or remote field conditions.
Use Guide
- Check engine oil and clean the air cooling fins and filter before each working day, especially in dust
- Fill with clean diesel from the 8.5L tank and keep the fuel free of water and grit
- Select a low gear for the first pass on hard ground and work up through gears 1, 2 and 3
- Set working depth within the 50 to 150mm range rather than forcing the implement deeper in one go
- Use the reverse gear to back out of headlands instead of manhandling the 240kg machine
- Clean soil off the implement after use and store the tractor under cover
4×4 Mini farm tractor Buyer Questions
What is the minimum order quantity?
One 20ft container. Sample orders are accepted and a single piece sample order is acceptable.
How long is the lead time?
25 to 35 days for one 40HQ container. A sample order ships in 1 to 7 days.
Is the engine diesel or petrol?
Diesel. It is an R185 single cylinder forced air cooled four stroke diesel motor producing 6.47kw at 2200r/min.
Can the tractor be supplied with our own branding?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
Does this model have CE certification?
No CE certificate is claimed for this model. Tell us the destination market and we will confirm what can be arranged before the order is placed.
How are spare parts supplied after delivery?
Within warranty, parts needed because of a quality problem are replaced free of charge. Outside warranty, spare parts are sold at cost price.
What payment terms and shipping port apply?
Western Union, PayPal or T/T depending on order quantity, shipping from Ningbo or Shanghai.
