3TGT-4 Double Shaft Garden Tiller With 800mm Working Width

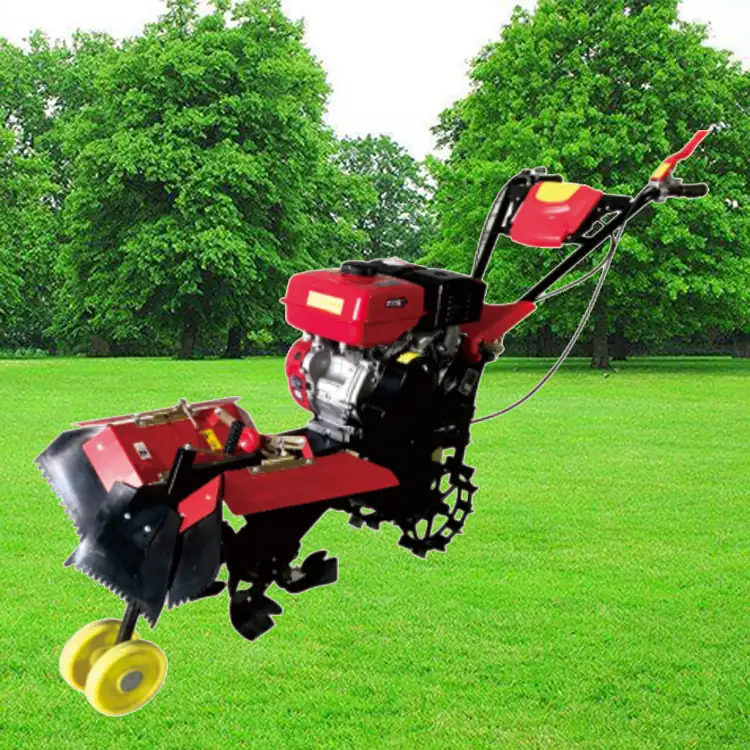

The 3TGT-4 is a walk behind garden tiller for market gardeners, orchard operators and equipment dealers who need one machine to weed, ditch and hill soil rather than three. A 170/177 gasoline engine rated at 4.0/5.4kW drives a double shaft wheel type chassis through a belt drive, working a maximum width of 800mm with the knife disc weeding device. Changing the matching device drops the working width to 240mm for trenching or 280mm for soil cultivation, so the same power unit covers seedbed preparation, drainage cuts and ridging. Armrest height and swing are both adjustable, which lets an operator stand out of the tilled line instead of walking in it. SONJUN builds it to order with OEM branding and ships from Ningbo or Shanghai.
- 800mm maximum weeding width covers a standard vegetable bed in one pass instead of two
- One power unit takes weeding, ditching and soil cultivation devices, so a grower buys one machine rather than three
- 240mm trenching width cuts drainage and irrigation furrows without a separate ditcher
- Double shaft wheel type chassis carries its own weight, so the operator steers rather than supports the machine
- Armrest adjusts both up and down and side to side, letting the operator walk clear of the freshly worked strip
- Belt drive with a tension type main clutch is cheap to service in the field with locally available belts
Product Gallery
Specifications
| Model No | 3TGT-4 |
|---|---|
| Engine Type | 170/177 Gasoline engine |
| Structural Type | Double shaft / wheel type |
| Dimensions | 1880*770*980mm / 1950*750*900mm |
| Armrest Level Adjustment | Yes |
| Armrest Adjustment Up and Down | Yes |
| Engine Output Transmission Mode | Belt drive |
| Main Clutch Type | Belt tension |
| Main Clutch Status | Normally open |
| Rated Power | 4.0/5.4kW |
| Rated Speed | 3600r/min |
| Matching Weeding Device Type | Knife disc type |
| Maximum Working Width of Weeding Device | 800mm |
| Matching Ditching Device Type | Cutter disc type |
| Maximum Working Width of Trenching Device | 240mm |
| Supporting Soil Cultivation Device Type | Knife disc type |
| Maximum Working Width of Soil Cultivation Device | 280mm |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Vegetable growers preparing and weeding raised beds between plantings
- Orchard and vineyard rows where a full size tractor cannot turn
- Smallholdings cutting drainage furrows before a wet season
- Hilling and ridging potato and root crop rows with the soil cultivation device
- Equipment dealers supplying a mid power tiller to part time and smallholder farmers
Who It Is For
- Importers and distributors stocking walk behind tillers for smallholder agriculture
- Agricultural machinery dealers and farm supply stores
- Vegetable and horticultural growers running bed based production
- Orchard, vineyard and greenhouse operators
- Machinery rental fleets serving small farms
Problems It Solves
- Hand hoeing a bed is labour the grower cannot hire; an 800mm powered width replaces several people
- Buying a separate ditcher and ridger ties up capital that a smallholding does not have
- Small single shaft cultivators bounce out of hard ground; the double shaft wheel type chassis holds depth
- A fixed handlebar forces the operator to walk in the tilled strip and lose footing
- Gearbox driven machines are expensive to repair remotely; a belt drive is replaced with a common belt
Technical Features
- 170/177 gasoline engine rated 4.0/5.4kW at 3600r/min
- Double shaft, wheel type structural layout
- Belt drive engine output with a belt tension main clutch, normally open
- Knife disc weeding device working up to 800mm
- Cutter disc ditching device working up to 240mm
- Knife disc soil cultivation device working up to 280mm
- Armrest adjustable for level and for height
Quality Control
- Incoming inspection on engines, belts and steel before they reach the line
- In process checks during frame welding and transmission assembly
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Choice of weeding, ditching or soil cultivation device supplied with the machine
- Manual and packaging artwork in the destination market language
How It Compares
Against Single shaft mini tiller
A single shaft machine is lighter to ship but works a narrower strip. The double shaft wheel type layout here carries its own weight and takes an 800mm weeding device.
Against Tractor mounted rotary tiller
A tractor implement needs a tractor and headland room to turn. This walk behind unit works inside orchard and greenhouse rows where a tractor cannot.
Against Buying separate ditcher and ridger
The same 4.0/5.4kW power unit accepts the 240mm ditching device and the 280mm soil cultivation device, so one purchase covers three jobs.
Use Guide
- Check engine oil and belt tension before the first start of each working day
- Fit the device that matches the job: knife disc for weeding, cutter disc for trenching, knife disc for hilling
- Set armrest height and swing so the operator walks beside the worked strip, not in it
- Start shallow on hard or dry ground and take a second pass rather than forcing full depth
- Release the belt tension clutch before changing a working device and stop the engine first
- Clean soil off the shafts and devices after use and store the machine dry
Garden tiller Buyer Questions
What is the minimum order quantity?
One 20ft container. Sample orders are also accepted, and a single piece sample order is acceptable if you want to test the machine first.
How long is the lead time?
25 to 35 days for one 40HQ container. A sample order ships in 1 to 7 days.
Can we order it under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
Is this machine CE certified?
No CE certificate is claimed for this model. Please confirm the certification you need for your market with us before ordering so it can be discussed at the quotation stage.
Which working devices come with the machine?
The machine takes a knife disc weeding device up to 800mm, a cutter disc ditching device up to 240mm and a knife disc soil cultivation device up to 280mm. Tell us which configuration you want quoted.
How do we get spare parts after delivery?
Within the warranty period, spare parts needed because of a quality problem are replaced free of charge. Outside warranty, spare parts are sold at cost price.
What payment terms and shipping port do you use?
Western Union, PayPal or T/T depending on order quantity. Goods ship from Ningbo or Shanghai.
