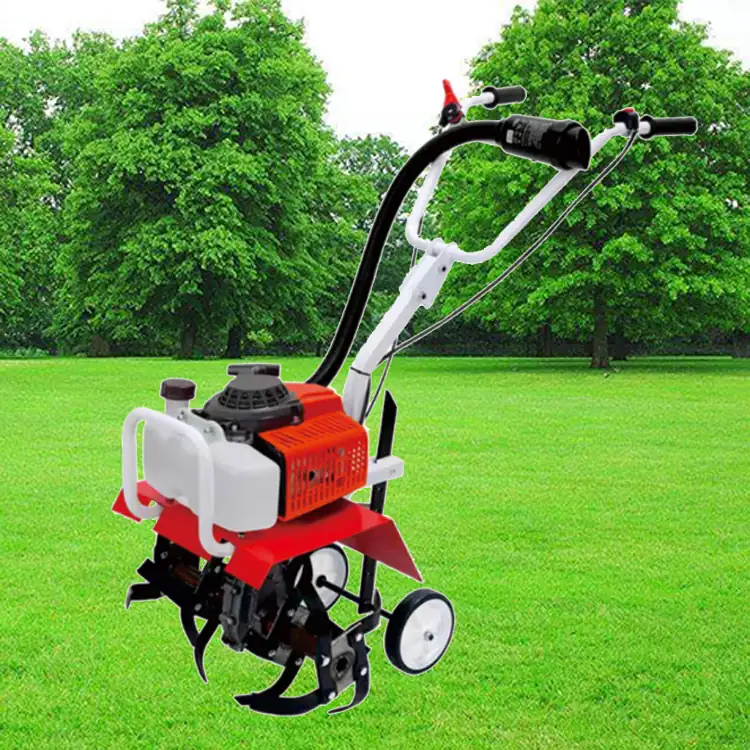

3TGQ-4AC Mini Petrol Tiller 188cc With 41cm Working Width
The 3TGQ-4AC is a compact petrol tiller for garden retailers, hire outlets and growers working beds and borders rather than fields. It cultivates a 41cm strip and can be set to three working depths of 15cm, 30cm and 40cm, so the same machine handles a light surface pass and a full depth bed turn. Drive is through a two-stage gear transmission, and CDI contactless ignition removes the points that cause hard starting on a machine left standing between seasons. At 515*505*600mm it is small enough to carry in a car boot and to pack densely for freight, and the tool handle takes 12 to 16 tines so the working set can be matched to the soil.
- Three set working depths of 15cm, 30cm and 40cm cover surface weeding and full bed turning on one machine
- 41cm working width fits beds, borders and tunnel rows without cutting into planted crops
- CDI contactless ignition avoids the hard starting that points cause after a machine has stood all winter
- Two-stage gear transmission passes drive without a belt for the end user to replace
- 515*505*600mm size fits a car boot, which is what makes it viable as a hire and retail line
- Tool handle takes 12 to 16 tines so the working set can be thinned for hard soil or filled for loose beds
Product Gallery
Specifications
| Model No | 3TGQ-4AC |
|---|---|
| Power | 8.8kW |
| Displacement | 188cc |
| Working Width | 41cm |
| Speed | 13800r/min |
| Working Depth | 15cm, 30cm, 40cm |
| Fuel Tank Capacity | 1200ml |
| Ignition Method | CDI contactless |
| Total Installed Tool Handle | 12-16 |
| Start Mode | Manual start |
| Transmission Mode | Two-stage gear transmission |
| Fuel Ratio | Pure gasoline |
| Product Size | 515*505*600mm |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Garden beds and borders being turned over between plantings
- Greenhouse and tunnel rows where a wide machine cannot pass
- Surface weeding at 15cm depth in planted crops
- Tool hire counters renting to domestic and light commercial customers
- Retail seasonal ranges in garden centres and hardware chains
Who It Is For
- Importers and distributors stocking compact petrol cultivation equipment
- Garden centres, hardware chains and DIY retailers
- Tool and equipment hire outlets
- Landscapers and grounds maintenance teams
- Smallholders and serious home growers
Problems It Solves
- One fixed depth setting means either a bed is under worked or the machine stalls; three settings solve both
- Wide tillers damage planted rows; a 41cm pass keeps clear of the crop
- Seasonal machines with points ignition will not start in spring and come back as warranty claims
- Belt driven cultivators need a belt in stock for every unit in a hire fleet
- Bulky cultivators cost too much in freight and storage to hit a retail price point
Technical Features
- 188cc displacement with a stated power of 8.8kW
- Working width 41cm with selectable working depths of 15cm, 30cm and 40cm
- Speed 13800r/min
- CDI contactless ignition
- Two-stage gear transmission
- Manual start with a 1200ml fuel tank running pure gasoline
- Total installed tool handle of 12-16 tines
- Compact 515*505*600mm product size
Quality Control
- Incoming inspection on engines, ignition units and steel before they reach the line
- In process checks during gear transmission and frame assembly
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Tine count supplied within the 12 to 16 range to suit local soil conditions
- Retail colour box or bulk carton packing with artwork in the destination language
How It Compares
Against Larger walk behind garden tiller
An 800mm machine finishes open ground faster. At 41cm and 515*505*600mm, this one reaches beds, borders and tunnel rows a full size tiller cannot enter.
Against Electric cultivator
An electric cultivator is tethered to an outlet. This petrol unit runs anywhere on the plot from a 1200ml tank.
Against Belt driven mini tiller
The two-stage gear transmission removes the drive belt, which is the part a hire fleet otherwise has to stock and change each season.
Use Guide
- Fill with pure gasoline only, not a two stroke mix, and check the oil level before the first start
- Select the 15cm depth setting for surface weeding and step down to 30cm or 40cm for a full bed turn
- Fit the number of tines that suits the soil, within the 12 to 16 the tool handle accepts
- Let the machine pull itself forward rather than pushing it, and take a second pass on compacted ground
- Stop the engine before removing residue wrapped around the tine shaft
- Drain or stabilise fuel before long storage and clean the tines before putting the machine away
Mini petrol tiller Buyer Questions
What is the minimum order quantity?
One 20ft container. Sample orders are accepted and a single piece sample order is acceptable.
How long is the lead time?
25 to 35 days for one 40HQ container. A sample order ships in 1 to 7 days.
What fuel does it take?
Pure gasoline, not a two stroke mixture. The fuel tank holds 1200ml.
Can we order it under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
Is the tiller CE certified?
No CE certificate is claimed for this model. Tell us the destination market and we will confirm what can be arranged before you order.
How do we order replacement tines and spares?
Within warranty, parts needed because of a quality problem are replaced free of charge. Outside warranty, spare parts are sold at cost price. Quote the model number 3TGQ-4AC when ordering.
What payment terms and port of shipment apply?
Western Union, PayPal or T/T depending on order quantity, shipping from Ningbo or Shanghai.
