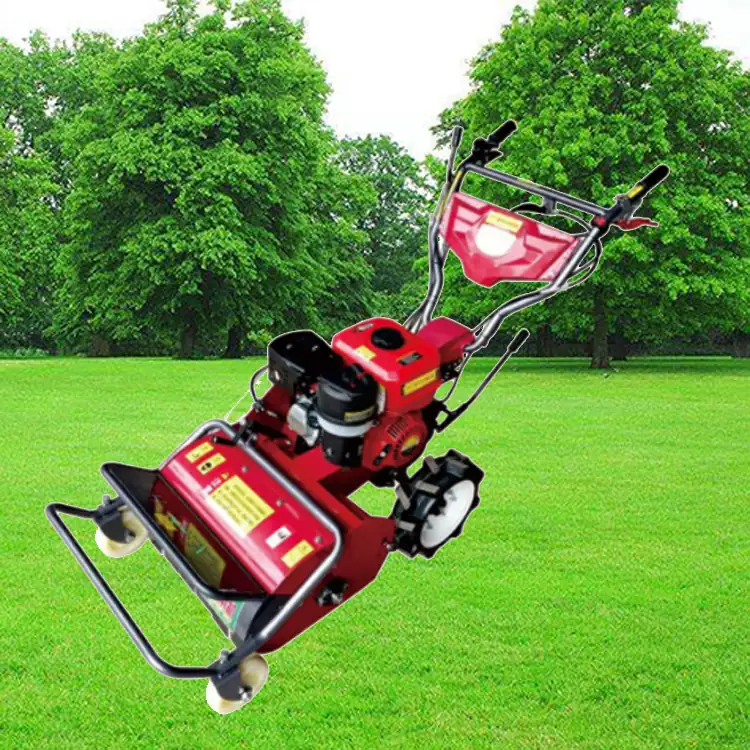

3TGQ-5.4BH walk behind weeder shown from the side with the handlebar raised

Tillers and Cultivators Machines

50cm Walk Behind Weeder and Lawn Mower 3TGQ-5.4BH

The 3TGQ-5.4BH is a walk behind weeder and lawn mower with a 50cm weeding width, aimed at groundscare contractors, orchards and municipal crews who have to cut grass and rough vegetation to an even height across areas that a ride on machine cannot reach. It runs a 170F or 177F engine and weighs 83 or 90kg depending on the engine fitted, which is enough mass to stay planted in tall growth without the deck riding up. The handlebar adjusts through 0 to 45 degrees, so the operator can offset their walking line from the cutting path when working along a bank, a fence line or under a row of trees. At 1980 by 620 by 480mm it is narrow enough to pass through a standard gate and between plantings.

50cm weeding width cuts a defined swathe that closes out an area in predictable passes
Handlebar adjustable through 0 to 45 degrees so the operator can walk off the cutting line along banks and fences
Choice of 170F or 177F engine, so a distributor can match the power and service parts their market already stocks
83 to 90kg working weight keeps the machine settled in tall rough growth instead of riding over it
620mm width passes through standard gateways and between plantings a ride on machine cannot enter
Walk behind format reaches ground around obstacles, kerbs and tree lines where a larger mower has to stop

Product Gallery

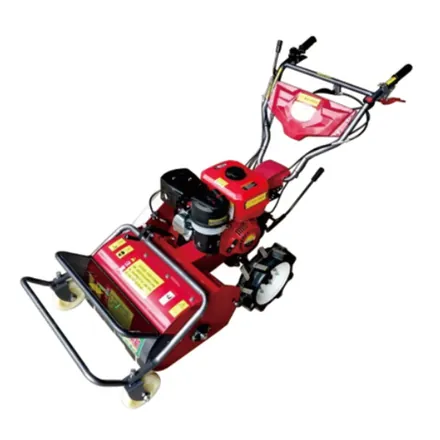

Walk behind weeder viewed from the front showing the engine and cutting deck

Field working shot of SONJUN garden machinery in operation

Garden machinery cutting rough vegetation

Finished machines packed and loaded for container shipment

Specifications

Model No	3TGQ-5.4BH Weeder
Engine Type	170F/177F
Weight	83/90kg
Product Size	1980620480mm
Weeding Width	50cm
Handlebar Adjustment Angle	0-45º

Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.

Application Scenarios

Municipal crews cutting verges, banks and amenity grass around street furniture
Orchards and vineyards mowing between rows and under tree lines
Groundscare contractors maintaining fixed routes across several sites
Facility teams keeping rough grass around perimeter fencing under control
Rental fleets hiring a weeder for seasonal clearance work

Who It Is For

Importers and distributors of walk behind groundscare machinery
Garden machinery and agricultural dealers
Municipal and highway maintenance departments
Grounds maintenance and landscaping contractors
Equipment hire and rental companies

Problems It Solves

Ride on mowers cannot reach banks, tree lines and areas behind narrow gates, leaving the work to strimming crews
Strimming a large area of rough growth by hand is slow and leaves an uneven finish
A fixed handlebar forces the operator to walk in the cut, which is awkward on a bank or against a fence
Light machines ride up over tall growth instead of cutting it, so the same area needs repeat passes
Distributors serving markets with different engine service networks need a model available in more than one engine

Technical Features

Walk behind weeder layout with a 50cm weeding width
170F or 177F engine option
Handlebar adjustment angle from 0 to 45 degrees
Working weight of 83 or 90kg according to the engine fitted
Overall size of 1980*620*480mm

Quality Control

Incoming inspection on engines and steel before they reach the line
In process checks during assembly of the deck and handlebar assembly
100% finished machine inspection before packing
Full order inspection before shipment with real time production status shared with the buyer

Customization Options

OEM and ODM production to buyer drawings and specification
170F or 177F engine specified per order
Buyer branding, colour and decal set
Manual and packaging artwork in the destination market language
Retail colour box or bulk carton packing to suit the sales channel

How It Compares

Against Ride on mower

At 620mm overall width this machine goes through gateways, along banks and between tree rows that a ride on simply cannot enter.

Against Handheld brushcutter

A 50cm cutting swathe covers area far faster than a strimmer and leaves a uniform height rather than a scalloped finish.

Against A lighter push mower

At 83 to 90kg the machine stays down in tall rough growth instead of riding over it, so the area is finished in one pass.

Use Guide

Check engine oil and fuel level before starting and inspect the cutting assembly for damage
Set the handlebar angle within the 0 to 45 degree range so you can walk clear of the cutting path on banks and fence lines
Clear stones, wire and debris from the area before cutting
Work across a slope rather than up and down it, and keep both hands on the handlebar
Stop the engine before clearing wrapped grass from the cutting assembly, and never use a hand
Clean the deck and store the machine dry at the end of the season

FAQ

Garden lawn mover Buyer Questions

What is the minimum order quantity?

One 20ft container is our standard MOQ, and a one piece sample order is acceptable if you want to test the machine first.

How long is the lead time?

25 to 35 days for one 40HQ container. A sample order ships in 1 to 7 days.

What engine is fitted and what does the machine weigh?

The machine takes a 170F or 177F engine, with a corresponding weight of 83 or 90kg.

How wide does it cut?

The weeding width is 50cm, and overall machine size is 1980*620*480mm.

Can the machine be supplied under our own brand?

Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.

How are spare parts handled after delivery?

Within the warranty period, parts needed because of a quality problem are supplied free of charge. Outside the warranty period, spare parts are sold at cost price.

Which port do you ship from and how can we pay?

Ningbo or Shanghai, with payment by Western Union, PayPal or T/T depending on the order quantity.
