212cc Garden Cultivator 1WG4Q.0-80A With 82 to 120cm Working Width

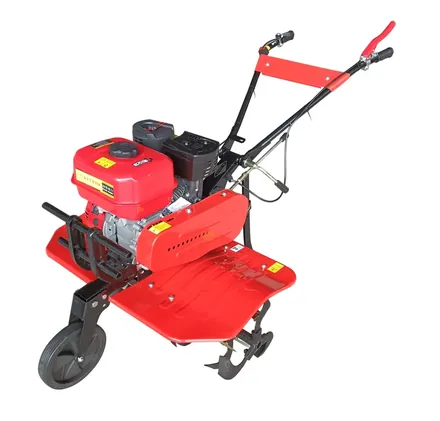

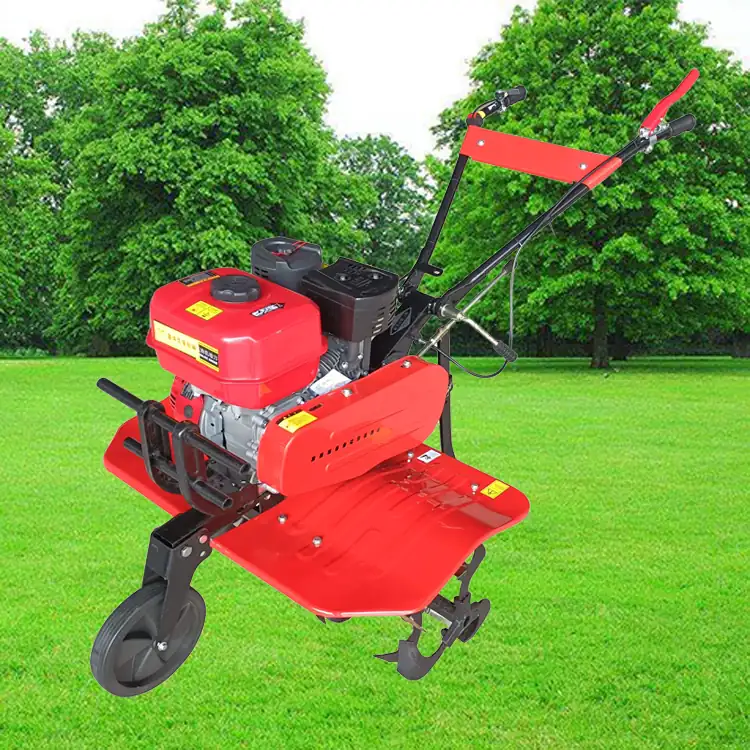

The 1WG4Q.0-80A is a walk behind garden cultivator with an adjustable 82 to 120cm working width, made for market gardeners, smallholders and rental fleets who need to cover ground faster than a compact tiller allows. A 212cc 170F engine producing 7HP at 3600r/min drives the rotor through a belt transmission, and the machine advances at 1.84 to 3.88 km/h, so the operator can match travel speed to how hard the ground is rather than fighting a fixed rate. Working depth is 15 to 25cm, which is the range that prepares a seed bed without bringing subsoil to the surface. At 1600 by 800 by 900mm it is a machine one person handles on a plot, and being petrol powered it works anywhere on the holding with no cable back to an outlet.
- Working width adjustable from 82 to 120cm, so the same machine suits both a narrow bed and an open plot
- 120cm at full width covers ground in a single pass that a narrow cultivator needs two or three passes to finish
- Travel speed of 1.84 to 3.88 km/h lets the operator slow down in hard ground instead of stalling the rotor
- 15 to 25cm working depth prepares a seed bed without dragging subsoil up into the tilth
- Belt drive transmission is simple to inspect and service in a field workshop
- Petrol power removes the cable limit of an electric machine, so the far end of the holding is worked the same as the near end
Product Gallery
Specifications
| Model No | 1WG4Q.0-80A |
|---|---|
| Engine Type | 170F, 4-cylinder, forced air-cooling |
| Displacement | 212cc |
| Max Power | 7HP/3600r/min |
| Drive Speed | 1.84-3.88 km/h for going ahead |
| Start Mode | Manual start |
| Driving Mode | Belt |
| Product Size | 1600*800*900mm |
| Working Width | 82-120cm |
| Working Depth | 15-25cm |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Market gardens turning over plots between crop rotations
- Smallholdings preparing seed beds across an open area each spring
- Nursery and polytunnel ground preparation where a tractor cannot manoeuvre
- Equipment rental fleets hiring cultivators through the spring season
- Landscaping crews breaking ground ahead of planting or turfing
Who It Is For
- Importers and distributors stocking walk behind cultivators for the spring season
- Garden machinery and agricultural machinery dealers
- Equipment hire and rental companies
- Retail chains carrying a garden power equipment range
- Landscaping and groundworks contractors
Problems It Solves
- A fixed narrow working width forces repeat passes and stretches a one day job across two
- Electric and manual cultivators run out of power on firm or previously uncultivated ground
- Corded machines cannot reach the far side of a holding, leaving the operator to move the work rather than the machine
- A single travel speed makes the machine either too slow in loose soil or too fast in hard ground
- Cultivating too deep brings subsoil into the seed bed, and a defined 15 to 25cm range keeps that under control
Technical Features
- 170F engine with forced air-cooling
- 212cc displacement with maximum power of 7HP at 3600r/min
- Belt driving mode between engine and rotor
- Drive speed 1.84 to 3.88 km/h going ahead
- Manual start
- Adjustable working width from 82 to 120cm
- Working depth 15 to 25cm
- Overall size 1600*800*900mm
Quality Control
- Incoming inspection on engines, transmission parts and steel before they reach the line
- In process checks during assembly of the rotor and belt drive
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Manual and packaging artwork in the destination market language
- Retail colour box or bulk carton packing to suit the sales channel
How It Compares
Against Mini cultivator with a 400mm rotor
At up to 120cm working width this machine clears roughly three times the ground per pass, which is the difference between a morning and a full day on the same plot.
Against Electric cultivator
A 212cc petrol engine keeps working in firm ground and is not limited by cable reach, which matters on any holding larger than a back garden.
Against Tractor mounted rotary tiller
A walk behind cultivator works between established beds and inside short headlands where a tractor implement simply cannot be turned.
Use Guide
- Check engine oil and fuel level before the first start of the season
- Set the working width to suit the bed before starting rather than adjusting under load
- Choose a lower travel speed in firm ground and increase it only once the rotor runs freely
- Work at the shallow end of the 15 to 25cm range first and deepen on a second pass
- Stop the engine before clearing roots or trash from the rotor, and never use a hand
- Check belt condition and tension at the start of each season and store the machine dry
Garden cultivator Buyer Questions
What is the minimum order quantity?
One 20ft container is our standard MOQ, and a one piece sample order is acceptable if you want to test the machine first.
How long is the lead time?
25 to 35 days for one 40HQ container. A sample order ships in 1 to 7 days.
What working width and depth does it achieve?
Working width is adjustable from 82 to 120cm and working depth is 15 to 25cm.
What engine is fitted?
A 170F forced air-cooled engine of 212cc displacement, with maximum power of 7HP at 3600r/min and manual start.
Can the machine be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
How are spare parts handled?
Within the warranty period, parts needed because of a quality problem are free of charge. Outside the warranty period, spare parts are sold at cost price.
Which port do you ship from and how can we pay?
Ningbo or Shanghai, with payment by Western Union, PayPal or T/T depending on the order quantity.
