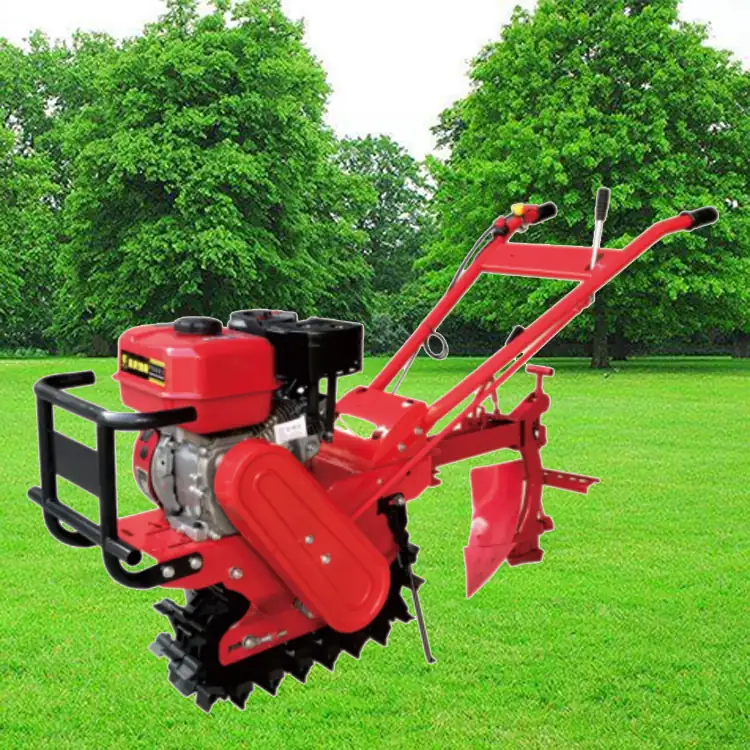

3TGQ-4B single rail rotary cultivator with swallow tail shovels fitted

Tillers and Cultivators Machines

3TGQ-4B Single Rail Rotary Cultivator 7HP Pastoral Management Machine

The 3TGQ-4B is a single rail rotary cultivator, sold as a pastoral management machine, for growers working narrow row spacings in rice fields, vegetable plots and orchards. The single chain rail frame keeps the machine slim enough to pass between crop rows where a wheeled double shaft cultivator would crush the plants either side. A 170 gasoline engine delivering 7HP at 3600rpm drives through V-belt transmission with a tensioner wheel main clutch, and three swallow tail shovel weeding devices lift and break the weed layer rather than chopping it into the soil. Gear positions 1, 2, N and R give a working speed, a transport speed, a true neutral and reverse, so the operator can back a 78kg machine out of a row instead of lifting it.

Single chain rail frame passes between narrow crop rows without damaging plants on either side
Three swallow tail shovels lift and break the weed layer instead of chopping weed pieces back into the bed
Reverse gear lets the operator back a 78kg machine out of a row rather than lifting it clear
A true neutral position means the machine can idle at the headland with the drive disengaged
78kg net weight is light enough for one person to load onto a pickup between plots
V-belt transmission with a tensioner clutch is serviced in the field with a common belt

Product Gallery

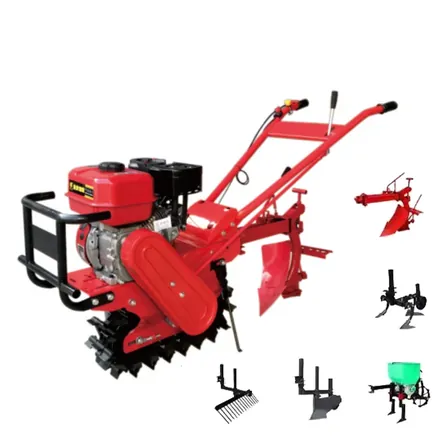

3TGQ-4B single rail cultivator side view showing V-belt cover and handlebar

3TGQ-4B pastoral management machine viewed from the rear

Operator running a walk behind machine across cultivated ground

Walk behind machine working soil in a field

Machine turning over soil during a field test

Machines packed and loaded into a shipping container

Specifications

Model No	3TGQ-4B
Product Name	Pastoral management machine (single chain rail)
Engine Model	170 Gasoline engine
Maximum Output Power	7HP / 3600rpm
Start Mode	Manual recoil start
Gear Position	1, 2, N, R
Net Weight	78kg
Handlebar Horizontal Adjustment Range	0º
Handlebar Up and Down Adjustment Range	15º, bolt-fixed and adjustable
Engine Output Transmission Mode	V-belt transmission
Main Clutch Type	Tensioner wheel type
Weeding Device Type	Swallow tail shovel type
Number of Weeding Devices	3

Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.

Application Scenarios

Inter-row weeding in rice fields, vegetable farms and orchards
Narrow or confined plots where a wheeled cultivator cannot fit between rows
Row cropping systems that need repeated weeding through the growing season
Growers moving one machine between several small plots in a pickup
Dealers supplying row crop farmers with a lighter alternative to a double shaft tiller

Who It Is For

Importers and distributors serving row crop and horticultural markets
Agricultural machinery dealers and farm supply stores
Vegetable, rice and orchard growers using row cropping
Smallholders and cooperatives working multiple scattered plots
Contract weeding and grounds maintenance operators

Problems It Solves

Wheeled cultivators are too wide for narrow rows and damage the crop on both sides
Rotary blades chop weeds into fragments that root again; swallow tail shovels lift them out
Machines without reverse have to be dragged backwards out of a row by hand
Heavy cultivators need two people or a ramp to move between plots
Gearbox repairs are impractical in remote areas; a V-belt and tensioner are replaced on the spot

Technical Features

Single chain rail structure, described as a pastoral management machine
170 gasoline engine with maximum output power of 7HP at 3600rpm
Manual recoil start
Gear positions 1, 2, N and R
V-belt engine output transmission with tensioner wheel main clutch
Three swallow tail shovel type weeding devices
Handlebar up and down adjustment range of 15º, bolt-fixed and adjustable
Net weight 78kg

Quality Control

Incoming inspection on engines, belts and steel before they reach the line
In process checks during rail frame welding and transmission assembly
100% finished machine inspection before packing
Full order inspection before shipment with real time production status shared with the buyer

Customization Options

OEM and ODM production to buyer drawings and specification
Buyer branding, colour and decal set
Weeding shovel configuration discussed at quotation stage
Manual and packaging artwork in the destination market language

How It Compares

Against Double shaft wheel type tiller

A wheeled double shaft machine covers open ground faster but is too wide for planted rows. The single chain rail frame is built to pass between them.

Against Rotary blade cultivator

Rotary blades chop weeds into fragments that can root again. The three swallow tail shovels lift and break the weed layer instead.

Against Machines without reverse

At 78kg, backing out of a row matters. Gear positions 1, 2, N and R include reverse and a true neutral for headland turns.

Use Guide

Check engine oil and V-belt tension before the first start of the working day
Set the handlebar within the 15º up and down range and tighten the fixing bolt before working
Use gear 1 for the working pass and gear 2 only for moving between rows
Select N at the headland so the drive is disengaged while the engine runs
Use R to back out of a row rather than lifting the machine
Clear soil and weed residue from the three shovels after use and store the machine dry

FAQ

Single rail rotary cultivator Buyer Questions

What is the minimum order quantity?

One 20ft container. Sample orders are accepted and a single piece sample order is acceptable.

How long is the lead time?

25 to 35 days for one 40HQ container. A sample order ships in 1 to 7 days.

Does the machine have reverse?

Yes. Gear positions are 1, 2, N and R, so there is a reverse gear and a neutral.

What type of weeding device is fitted?

Three swallow tail shovel type weeding devices.

Can it be supplied under our own brand?

Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.

Is the machine CE certified?

No CE certificate is claimed for this model. Tell us your destination market and we will confirm what can be arranged before you order.

How do we obtain spare shovels and belts?

Within warranty, parts needed because of a quality problem are replaced free of charge. Outside warranty, spare parts are sold at cost price. Quote model 3TGQ-4B when ordering.
