Product family

OBDII Cables

Cable assemblies built around our own connectors: extension leads, flat ribbon runs, shielded round cable, DB9 breakouts, cigarette-lighter power feeds and EV diagnostic leads. Crimped, overmoulded and electrically tested before packing.

Ask for this family Download the catalogue
What is in this family

39 OBDII Cable models you can quote today

Cable assemblies built around our own connectors: extension leads, flat ribbon runs, shielded round cable, DB9 breakouts, cigarette-lighter power feeds and EV diagnostic leads. Crimped, overmoulded and electrically tested before packing. Every model below is built on our own tooling, so housings, terminals and covers across the family are dimensionally consistent and can be mixed in one assembly.

Sub-ranges: New & Custom DesignsOBDII AdaptersAlloy OBDII RangeOBDII Case ConnectorsOBDII ConnectorsOBDII Kits & Accessories

  • Specifications taken from the production drawing, not a marketing sheet.
  • Terminal plating, housing material and pin count stated on every model page.
  • Delivery quoted against your order quantity — say the volume and we will say the date.
Power Supply OBD Cable to Black Red Wires with Fuse ST-SOC-251
Sub-ranges

Narrow it down

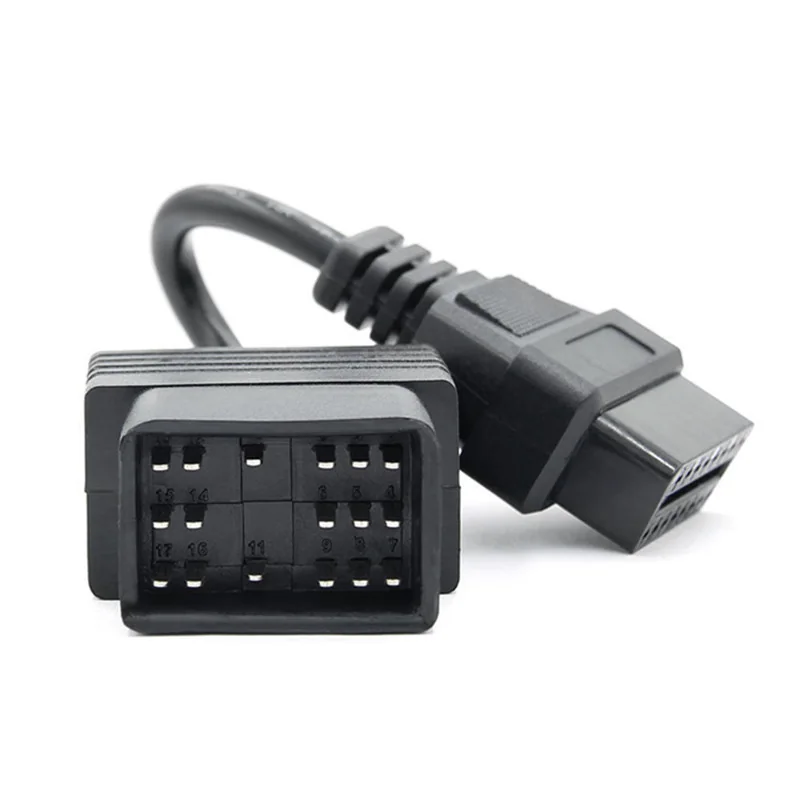

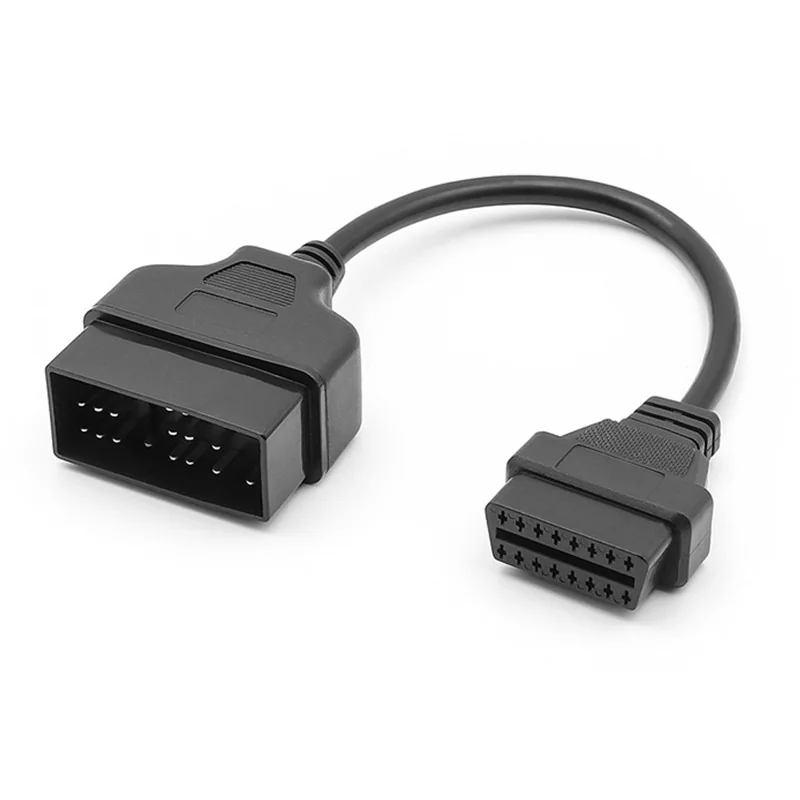

Vehicle-Specific Cables by Setolink

Vehicle-Specific Cables

2 parts · OBD2 cables built to a specific vehicle interface.

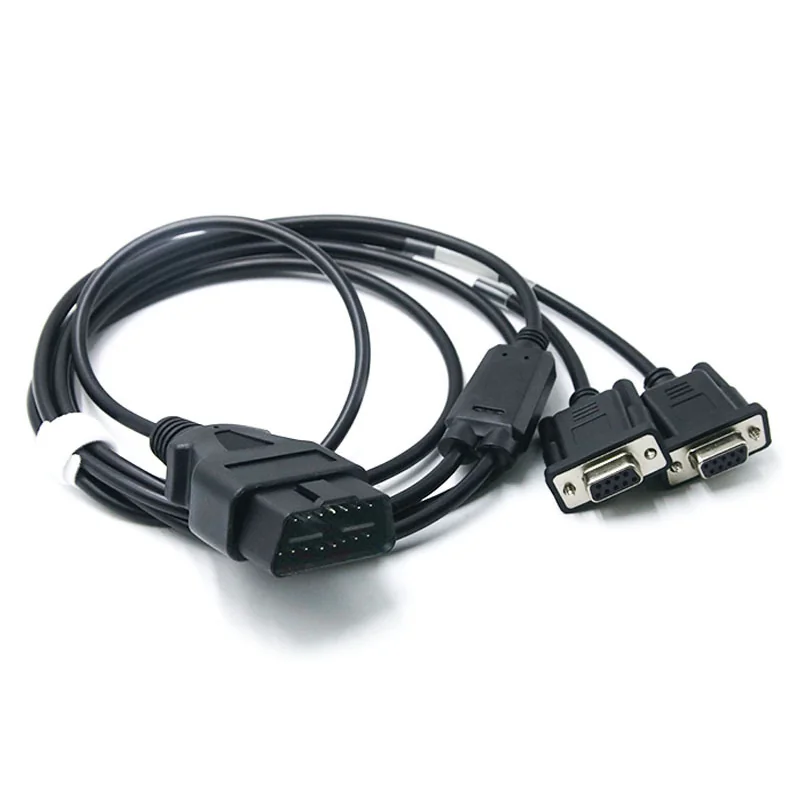

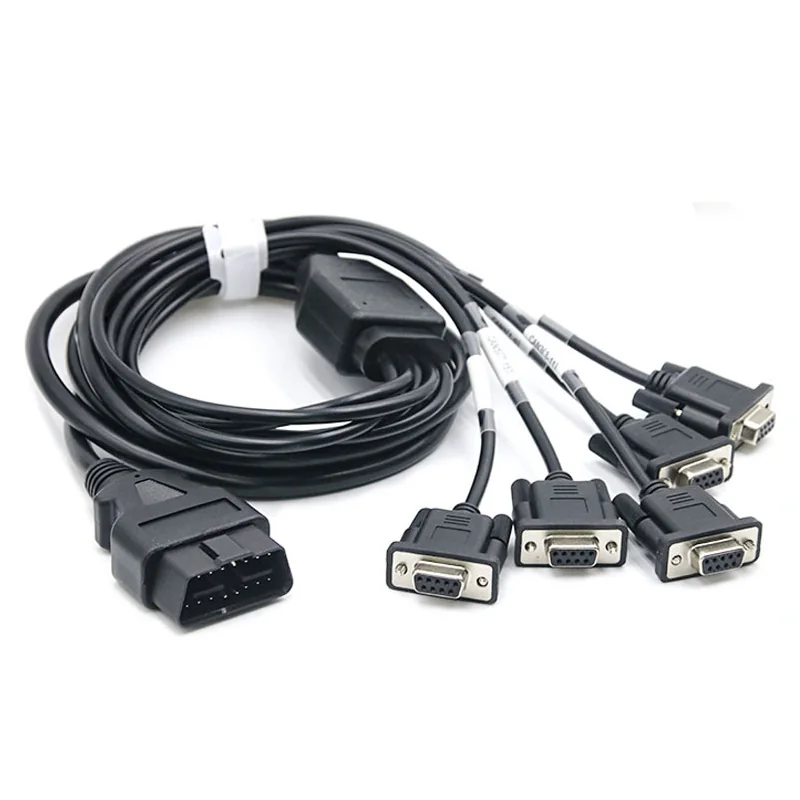

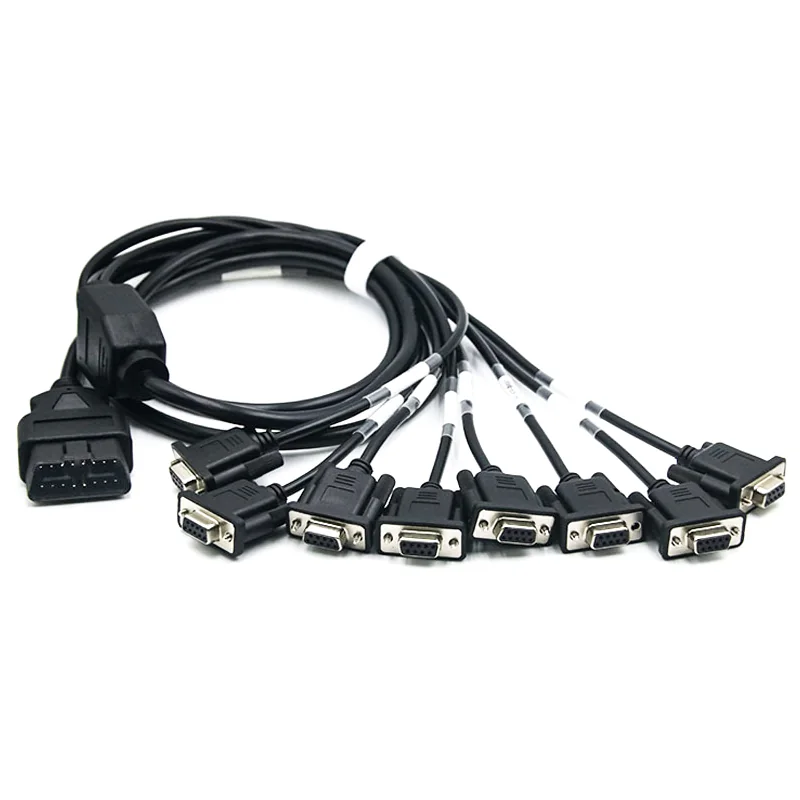

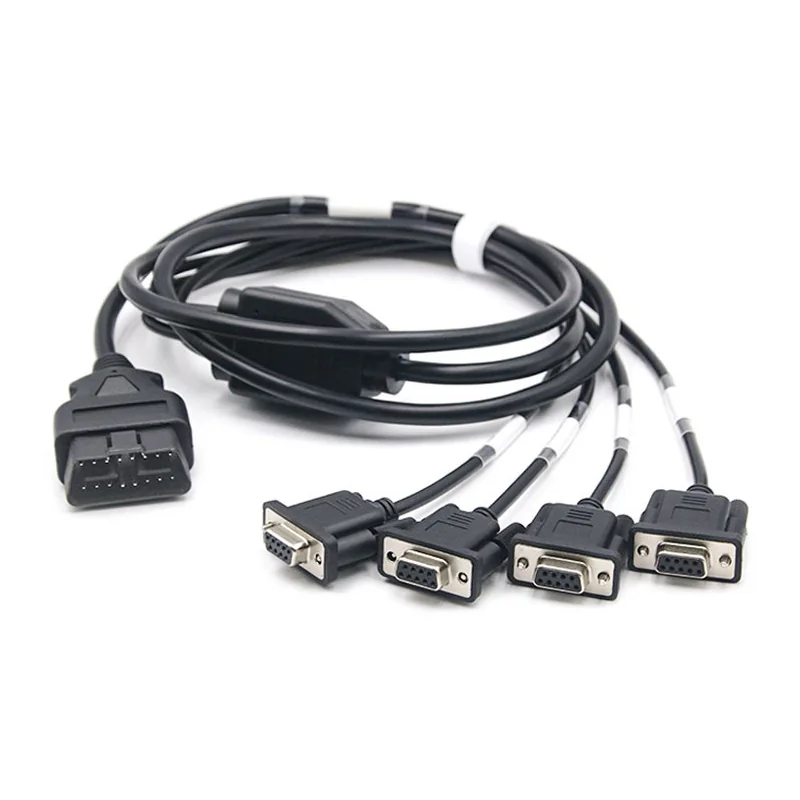

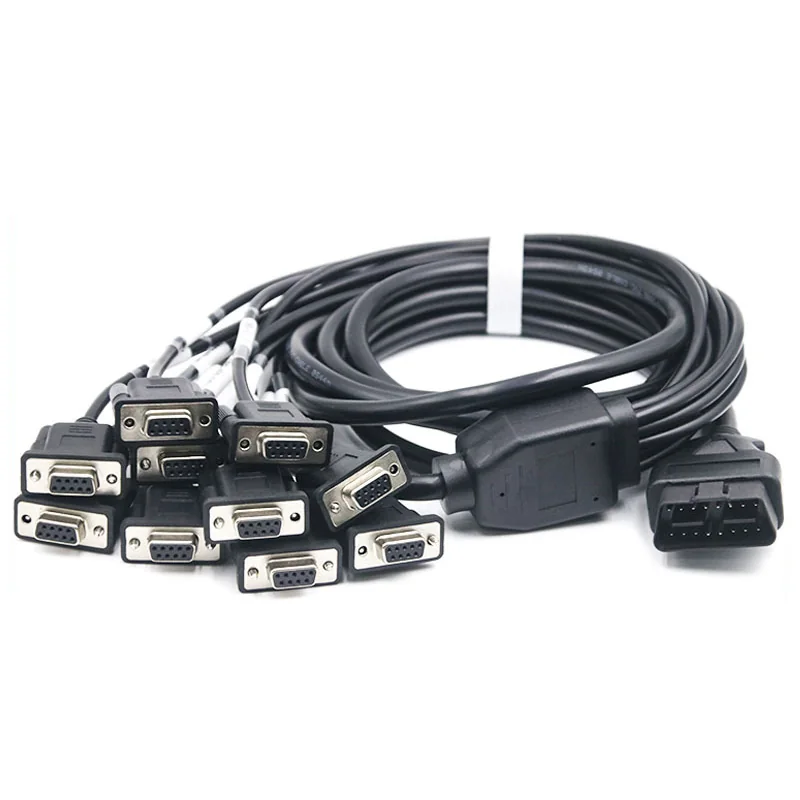

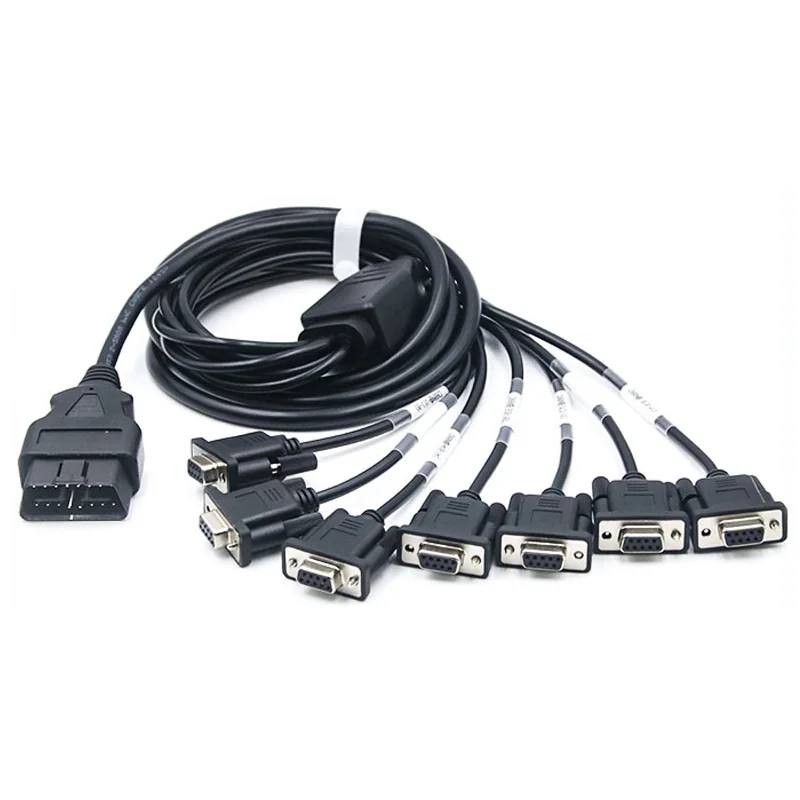

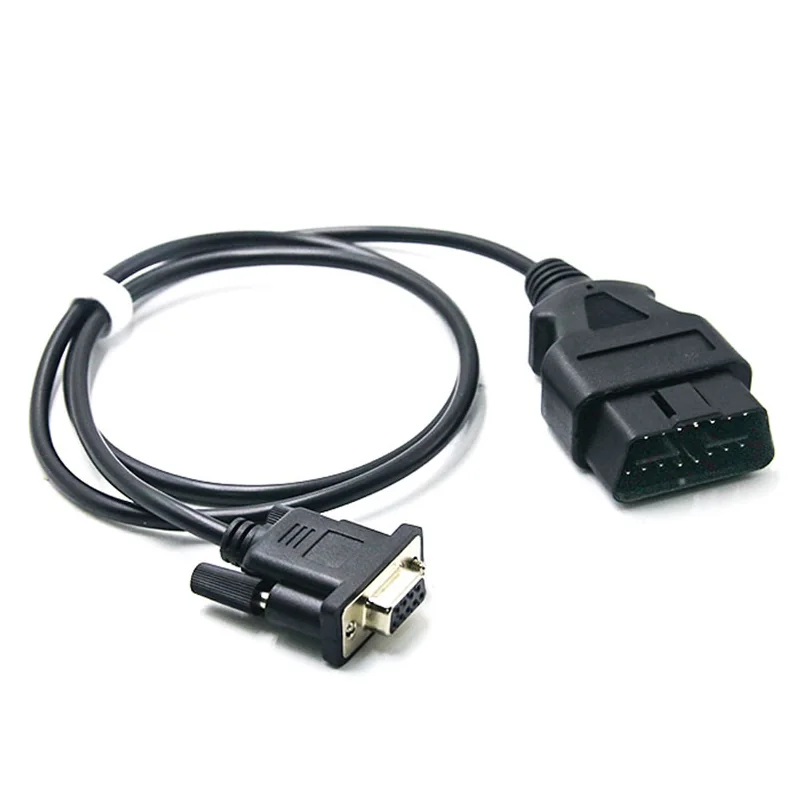

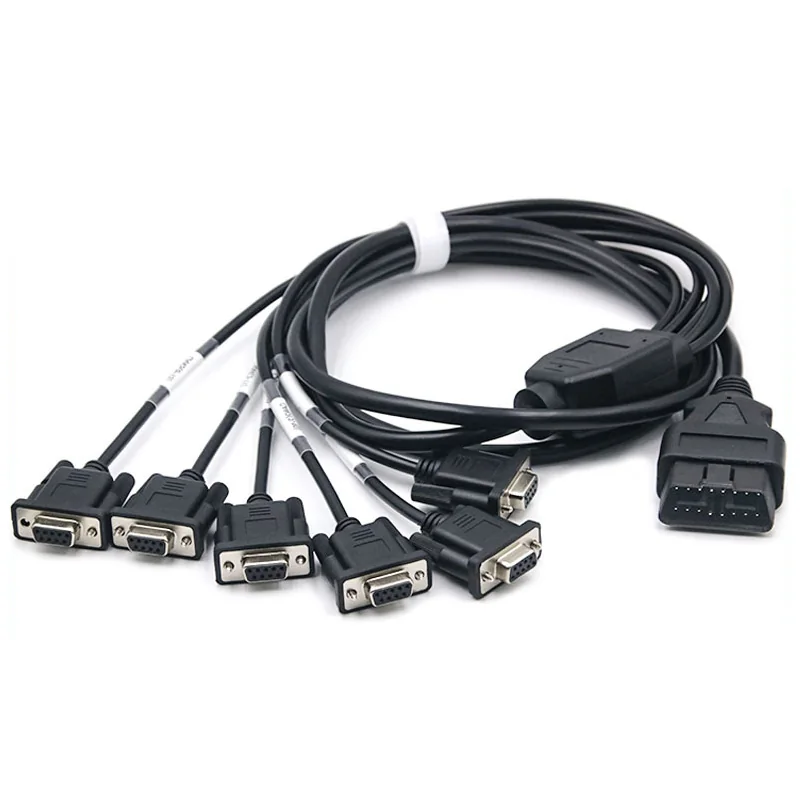

 OBDII to DB9 Cables by Setolink

OBDII to DB9 Cables

8 parts · OBD2 to DB9 breakout cables for CAN tools and data…

 EV Diagnostic Cables by Setolink

EV Diagnostic Cables

3 parts · OBD2 cable assemblies for electric-vehicle diagnostic…

 Flat OBDII Cables by Setolink

Flat OBDII Cables

7 parts · Flat ribbon OBD2 cables for tight routing behind trim…

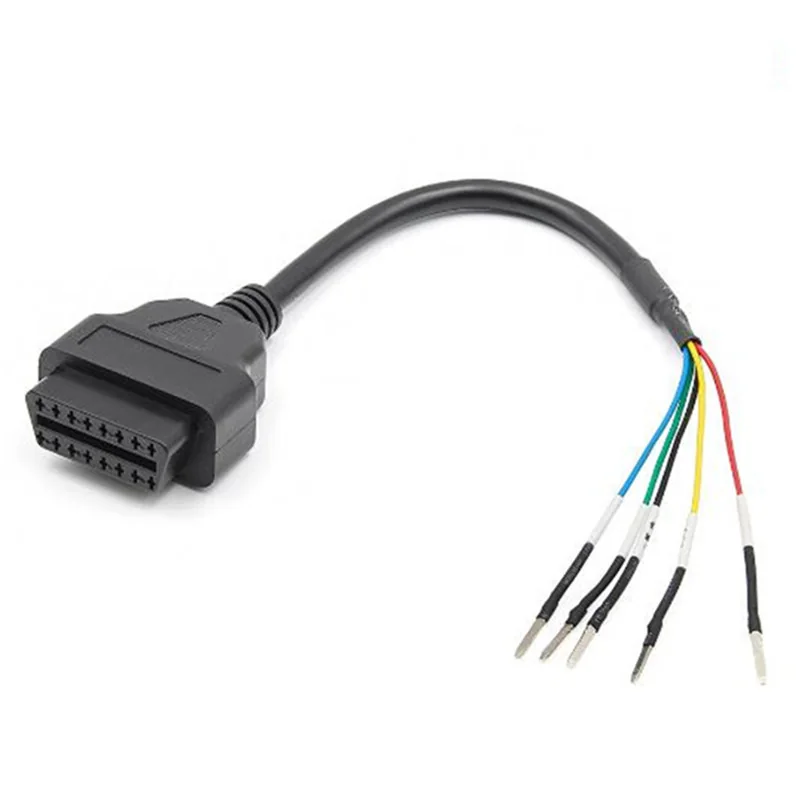

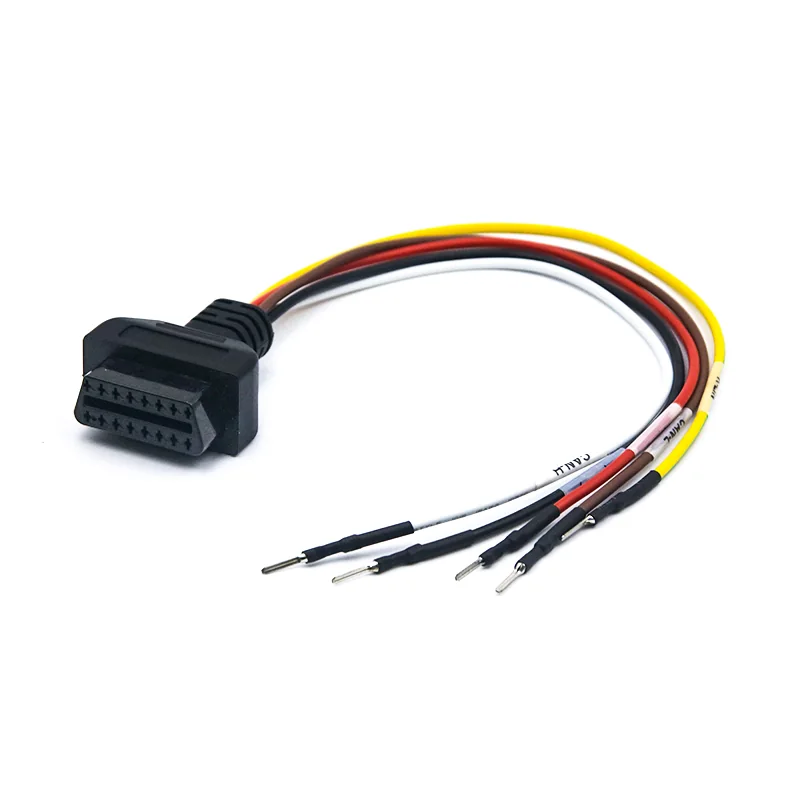

 OBDII Jumper Cables by Setolink

OBDII Jumper Cables

2 parts · Short jumper leads between OBD2 ports and test equipment.

 Motorcycle OBD Cables by Setolink

Motorcycle OBD Cables

1 parts · Diagnostic leads for motorcycle diagnostic connectors.

 OBDII Power Cables by Setolink

OBDII Power Cables

8 parts · Cigarette-lighter and power-feed OBD2 cable assemblies.

 Round OBDII Cables by Setolink

Round OBDII Cables

8 parts · Round-jacket OBD2 extension and diagnostic cable…

Models

All 39 OBDII Cable parts

Click any model for the full specification table, feature list and a pre-filled WhatsApp enquiry with the part number already in it.

Specification span

What varies inside OBDII Cables

The values below are the ones that actually appear on drawings in this family — useful when you are writing a specification and need to know what is available before you ask.

ModelST-MF08-C13, ST-MF08-C14, ST-MF10-M01, ST-SOC-002B, ST-SOC-004 Series, ST-SOC-032-16C…
Core10C 26 AWG, 12C 26 AWG, 14C 26 AWG, 16C 26 AWG, 16C 26 AWG or Customized, 20C 26 AWG…
Connector12 Pin, 12V or 24V, 20 Pin, 26 Pin, Cigarette Lighter, DB9 Female…
Length100 cm or Customized, 30 cm, 30 cm or Customized, 30 cm, 60 cm, 100 cm or Customized, 40cm or 100cm or Customized, 50cm or 100cm or Customized
ColorBlack, Black and red
Fuse1 AMP, 3A
SwitchCustomized
Pin No.16 Pin
Pin MaterialNickel Plated Brass

Not listed here?

Pin configuration, plating, housing geometry, cable jacket and colour are all tooling decisions we own. If the range above does not contain your combination, we can build it rather than substitute it.

How customisation works

Quote obdii cables by part number

Send the model numbers and quantities; we reply with price, lead time and the drawing for approval.
