ST-SOC-803 OBDII Cable Brand SETOCONT

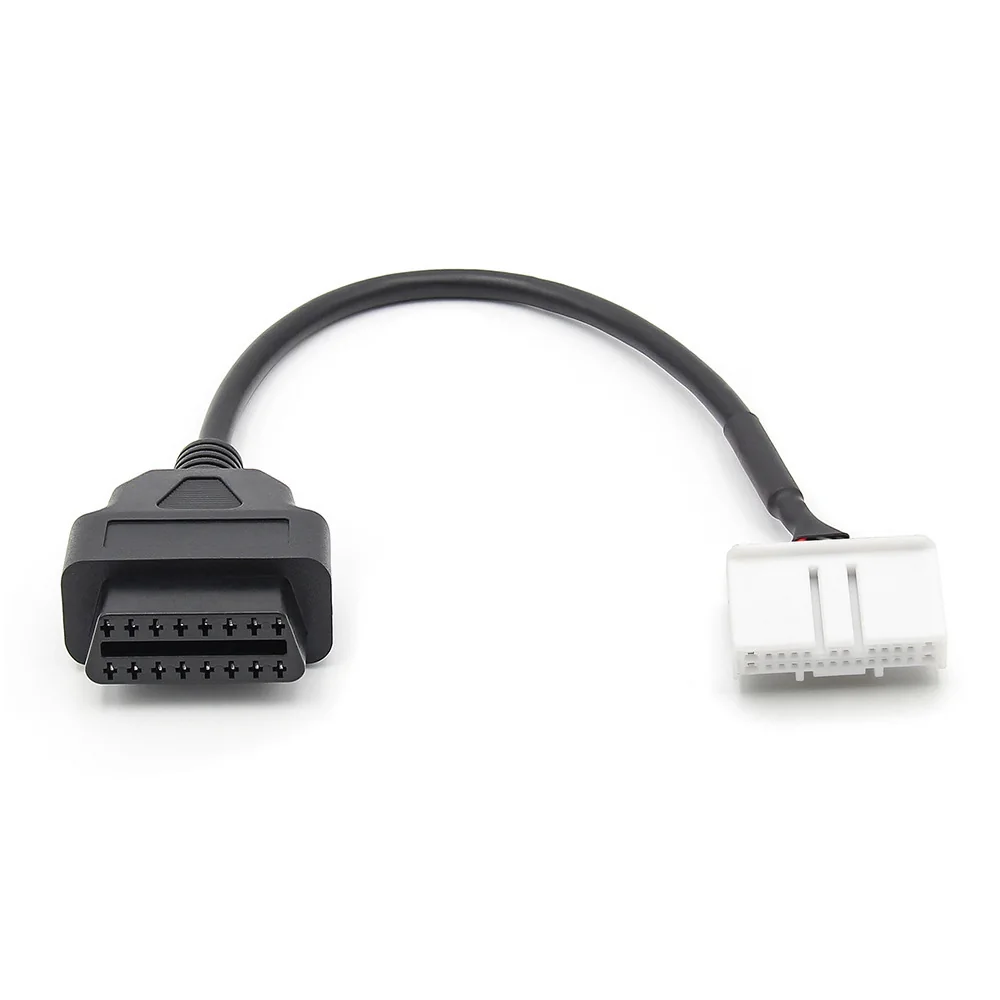

OBD Cable 26 Pin for EV Tesla Model 3/Y ST-SOC-803

Name: OBD Cable Converter for EV Tesla Model 3 or Y

Name: OBD Cable Converter for EV Tesla Model 3 or Y
Pin No.: 16 Pin to 26 Pin
Length.: 30 CM
Pin Materials: Nickel Plated Brass
Plastic Materials: PVC
Packaging: 1 piece Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOC-803 is for

This is a J1962 OBD cable with 16 Pin to 26 Pin, which is used for EV Tesla old Model 3 and Y from 2019.

It belongs to our OBDII Cables family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality OBD extension cable
16 pin female to 26 pin connector
Easy to install on the vehicle to read data
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials, length.

obd adapterobd cableobd extension cable

Specification

Model	ST-SOC-803
Color	Black
Pin No.	16 Pin
Connector	26 Pin
Pin Material	Nickel Plated Brass
Length	30 cm, 60 cm, 100 cm or Customized
Heat Distortion Temp	Customized

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

ST-SOC-803 in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOC-803

How many pins does ST-SOC-803 have?

16 Pin positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Which plastic is the body moulded from?

26 Pin. We mould the housing on our own tooling, which is why the material is fixed and traceable instead of varying between production lots.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
