ST-SOC-102B OBDII Cable Brand SETOCONT

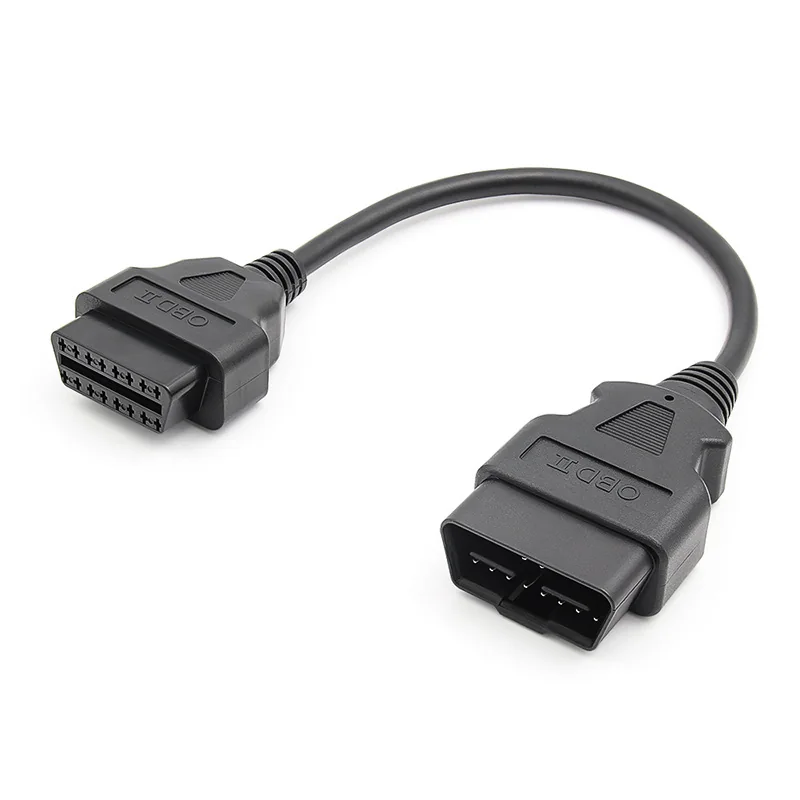

OBD Cable Male to Female ST-SOC-102B

Name: OBD Cable with Male to Female Connectors

Name: OBD Cable with Male to Female Connectors
Pin No.: 16P
Core No.: 16C 26AWG or Customized
Length: 30 cm or Customized
Plastic Materials: PVC
Packaging: 1 pieces Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOC-102B is for

This is a J1962 round OBD cable with 16 pin 16 cores inside the cable, male to female as an OBD2 extension diagnostic cable. With 16 pins available to connected, makes it possible to work for a wide range of OBD2 compatible devices. Applicable to cars with a covered OBD interface or where it is inconvenient to install OBD equipment (installation will affect safe driving), like the OBD devices Youjia, golo6, Chezhuan, elm327, Driving Map, Chebao, and other car testing equipment, and GPS, etc .

It belongs to our OBDII Cables family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality OBD cable with flexibility and durability
16 pin 16 cores full pin connected male to female
Standard OBD female configuration with 26 AWG wires
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials, length.

obd adapterobd cableobd cable male

Specification

Model	ST-SOC-102B
Color	Black
Pin No.	16 Pin
Core	16C 26 AWG or Customized
Pin Material	Nickel Plated Brass
Length	30 cm, 60 cm, 100 cm or Customized
Heat Distortion Temp	Customized

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

ST-SOC-102B in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOC-102B

How many pins does ST-SOC-102B have?

16 Pin positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
