ST-SOC-004 Series OBDII Cable Brand SETOCONT

Power Supply OBD Cable 2C 22AWG ST-SOC-004

Name: Male OBDII Connector to Opening OBD Cable

Name: Male OBDII Connector to Opening OBD Cable
Core No.: 2C 22AWG
Connector: 12V or 24V Customized
Length: 100 cm or Customized
Plastic Materials: PVC
Packaging: 1 piece Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOC-004 Series is for

This is a male OBD connector to 2C black and red opening power supply cable, suitable for household appliances, electronic products, cameras, CCTV, bar lights, cars, trucks, buses, trucks, etc.

It belongs to our OBDII Cables family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality power supply OBD cable
16 Pin OBD male connector with 2C 22 AWG wires
12V or 24V obd connector male available
Length at 500mm, 1000mm available
Switch or not available
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials, length.

obd cableobd charging cablepower supply obd cable

Specification

Model	ST-SOC-004 Series
Color	Black
Connector	12V or 24V
Core	2C 22 AWG
Color	Black and red
Length	50cm or 100cm or Customized
Switch	Customized

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

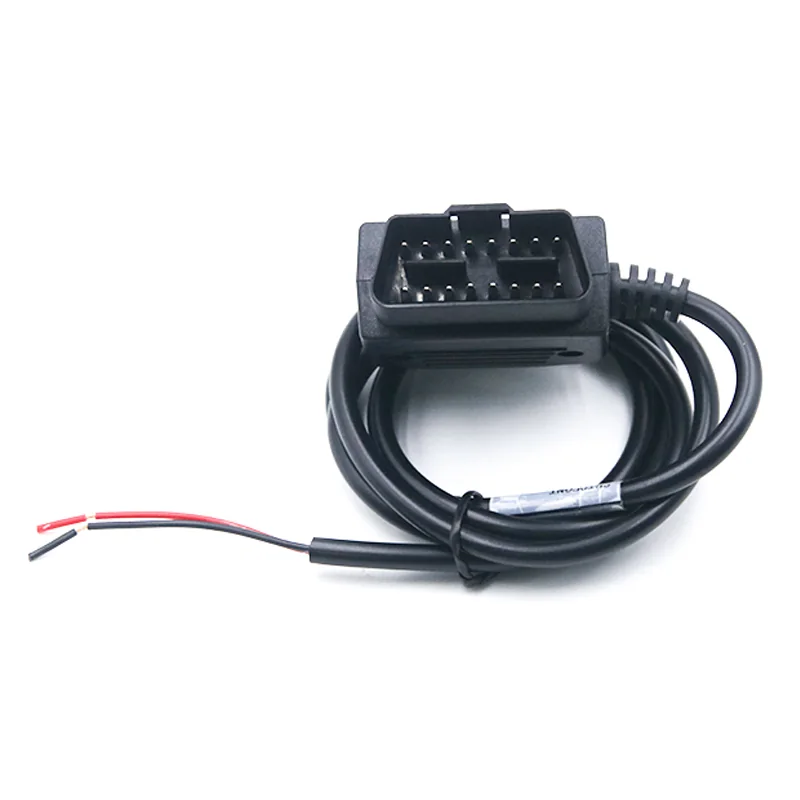

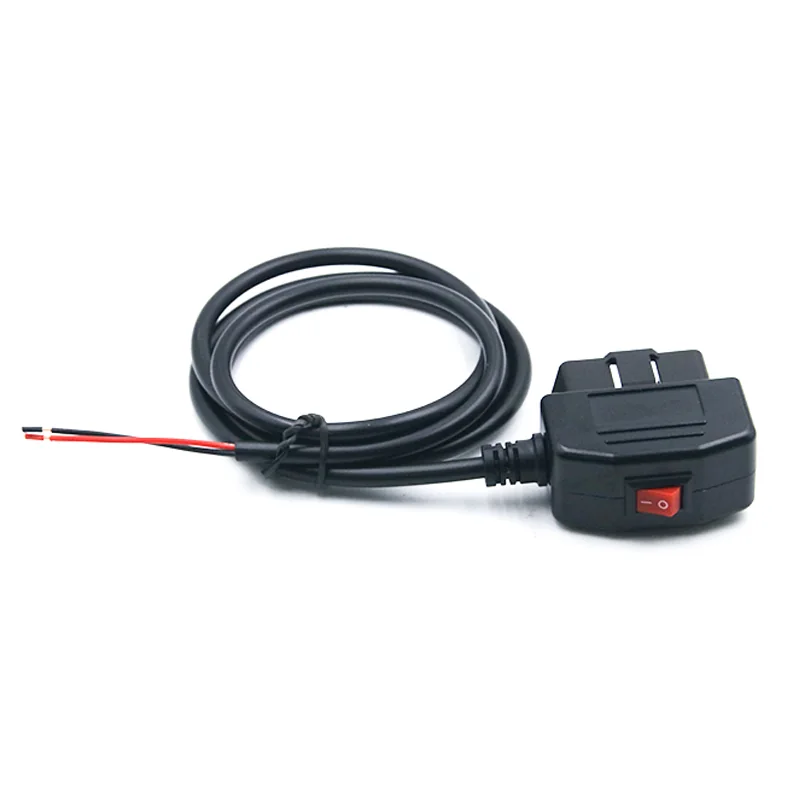

Gallery

ST-SOC-004 Series in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOC-004 Series

Which plastic is the body moulded from?

12V or 24V. We mould the housing on our own tooling, which is why the material is fixed and traceable instead of varying between production lots.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
