ST-SOC-501A OBDII Cable Brand SETOCONT

Low Profile Flat OBD Cable 16P 8C MtF ST-SOC-501A

Name: Low Profile Flat OBD Cable

Name: Low Profile Flat OBD Cable
Pin No.: 16P
Core No.: 8C 26AWG
Pin Materials: Nickel Plated Brass
Plastic Materials: PVC
Packaging: 1 piece Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOC-501A is for

This is a J1962 low profile flat OBD cable with 16 pin 8 cores inside the cable, male to female OBDII adapter as an OBD2 extension diagnostic cable. Applicable to cars with a covered OBD interface or where it is inconvenient to install OBD equipment (installation will affect safe driving), like the OBD devices Youjia, golo6, Chezhuan, elm327, Driving Map, Chebao, and other car testing equipment, and GPS, etc .

It belongs to our OBDII Cables family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality low profile OBD cable
16 pin 8 cores not full connected
Flat cable easy to install on the vehicle
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials, length.

flat obd cablelow profile obd cableobd adapterobd cableobd extension cableribbon obd cable

Specification

Model	ST-SOC-501A
Color	Black
Pin No.	16 Pin
Core	8C 26 AWG
Pin Material	Nickel Plated Brass
Length	30 cm, 60 cm, 100 cm or Customized
Heat Distortion Temp	Customized

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

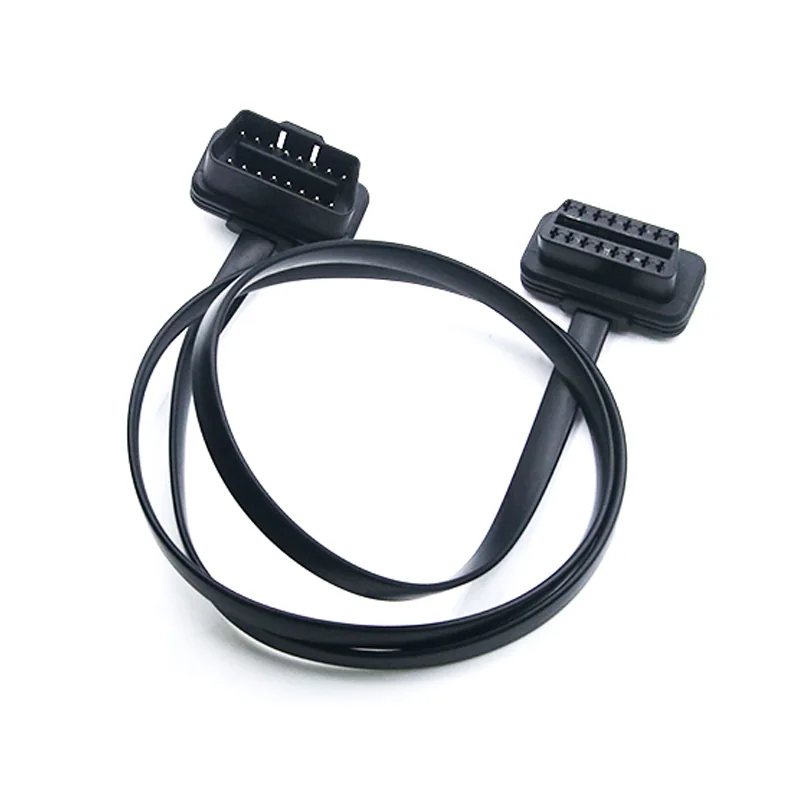

ST-SOC-501A in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOC-501A

How many pins does ST-SOC-501A have?

16 Pin positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
