ST-MF08-C13 OBDII Cable Brand SETOCONT

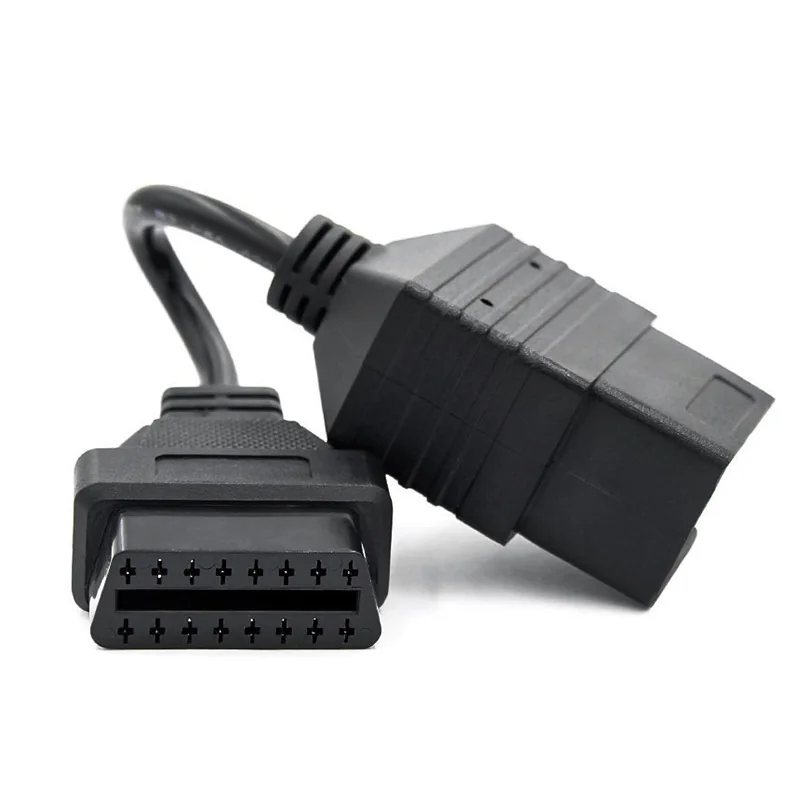

OBD Cable for Toyota 17 Pin ST-MF08-C13

Name: OBD Extension Cable for Toyota

Name: OBD Extension Cable for Toyota
Pin No.: 16 Pin female to 17 Pin male OBD Cable
Core No.: PVC or Customized
Length: 30 cm or Customized
Packaging: 1 pieces Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-MF08-C13 is for

This is a new data link cable specifically used for connecting your On-Board Diagnostic scanner and your vehicle to detect automotive exhaust , Diesel Particulate Filter, engine and other functions . With 17 pin male to 16 pin female connectors , it is suitable for Toyota series, used to convert for Toyota old vehicles to OBD OBD2 16 pin interface, which allows you connect the OBD interface diagnostic tools for Toyota vehicles with a 17 pin interface.

It belongs to our OBDII Cables family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality OBD cable with flexibility and durability
16 pin multi cores connected male to female
Standard OBD female configuration
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials, length.

obd adapterobd cableobd cable maleobd extension cable

Specification

Model	ST-MF08-C13
Color	Black
Pin No.	16 Pin
Core	PVC or Customized
Pin Material	Nickel Plated Brass
Length	30 cm, 60 cm, 100 cm or Customized
Heat Distortion Temp	Customized

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

ST-MF08-C13 in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-MF08-C13

How many pins does ST-MF08-C13 have?

16 Pin positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
