ST-SOC-606B OBDII Cable Brand SETOCONT

16 Pin OBD Cable to VGA DB9 Pin Female ST-SOC-606B

Name: OBD Cable 6 in 1 16 Pin Male to DB9 Pin Female

Name: OBD Cable 6 in 1 16 Pin Male to DB9 Pin Female
Pin No.: 16P
Core No.: 12C 26AWG
Cable Length: 200 cm
Plastic Materials: PVC
Packaging: 1 pieces Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOC-606B is for

This is a OBD cable 16 pin male to six DB9 female 6 in 1 VGA D-sub 9 Pin OBDII adapter RS232 serial port Line, one OBD male to six DB9 female extension cable.

It belongs to our OBDII Cables family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality OBD extension cable
16 pin 12 cores to 6 DB9 female connectors
Easy to get Can signals from Can H and Can L
Support customized wiring diagram for the definition
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials, length

obd cableobd to db9 cableobd to rs232 cable

Specification

Model	ST-SOC-606B
Color	Black
Pin No.	16 Pin
Core	12C 26 AWG
Pin Material	Nickel Plated Brass
Length	30 cm, 60 cm, 100 cm or Customized
Heat Distortion Temp	Customized

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

ST-SOC-606B in detail

Production photographs of the actual part, not a render.

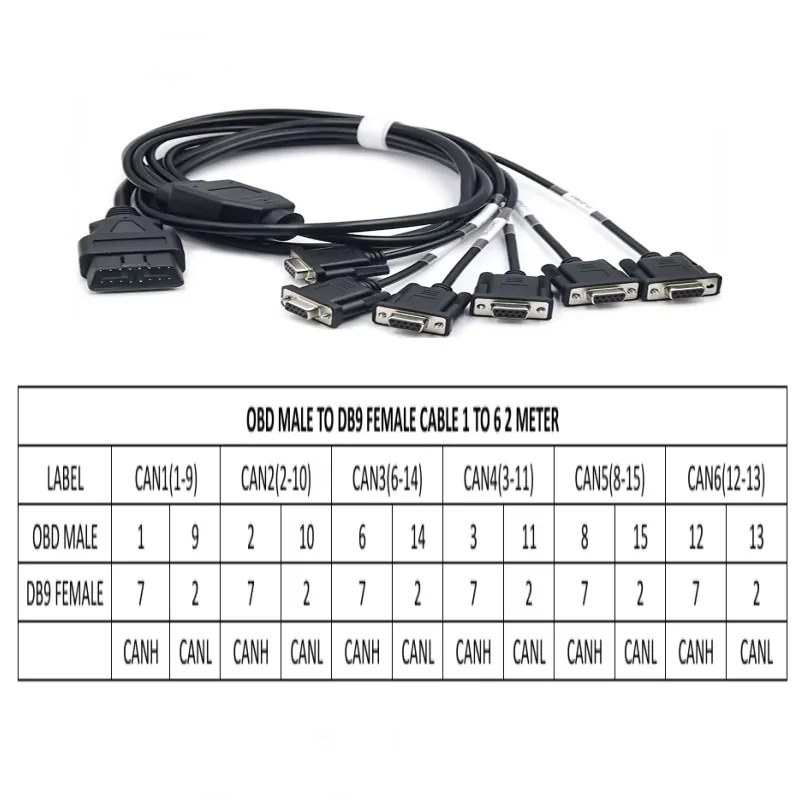

OBD Cable 6 in 1 16 pin male to six db9 female

Questions buyers ask

Before you order ST-SOC-606B

How many pins does ST-SOC-606B have?

16 Pin positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
