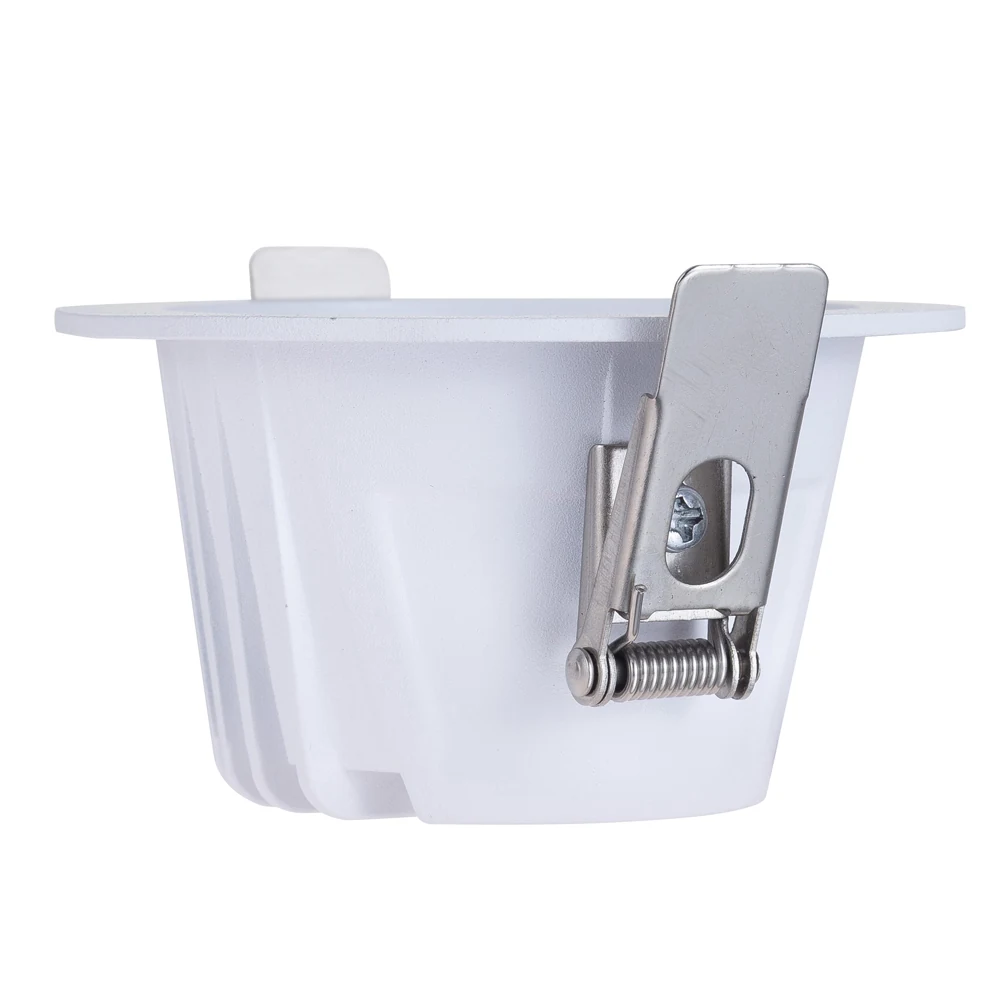

Anti Glare COB LED Downlight
The CH-2507, CH-3015, CH-4024, CH-5030 and CH-8040 are recessed COB LED downlights for hotel lobbies, aisles and corridors. They run on 220-240VAC at 50Hz/60Hz, deliver between 630 and 3600 lumens at 90lm/w, and use Epistar LED chips with a CRI above 80. The beam angle is specified at order as 36 or 55 degrees. The UGR is less than 19, offering low glare. They are housed in diecast aluminium and have an IP44 rating.
Ask for the IES file or a Dialux calculation with your enquiry.
What This Fixture Does For You
- UGR less than 19 reduces glare and eye strain for guests and staff
- 90lm/w efficiency means fewer fittings are needed to achieve the target lux level
- Diecast aluminium housing and reflector dissipate heat and maintain output
- 36 and 55 degree beam angles offer flexibility for different ceiling heights
- Lifud drivers provide stable current and minimise flicker
- 3000K, 4000K and 6000K colour temperatures suit different interior design schemes
- 3 year warranty provides peace of mind for long-term installations
| Model | CH-2507 |
|---|---|
| Model | CH-3015 |
| Model | CH-4024 |
| Model | CH-5030 |
| Model | CH-8040 |
| Input Voltage | 220-240VAC |
| Frequency | 50Hz/60Hz |
| System Power | 7W |
| System Power | 15W |
| System Power | 24W |
| System Power | 30W |
| System Power | 40W |
| Power Factor | >0.5 |
| Driver Brand | Lifud |
| LED Chip | Epistar |
| CRI | >80 |
| System Lumen | 630lms |
| System Lumen | 1350lms |
| System Lumen | 2160lms |
| System Lumen | 2700lms |
| System Lumen | 3600lms |
| Efficiency | 90lm/w |
| CCT | 3000K |
| CCT | 4000K |
| CCT | 6000K |
| Beam Angle | 36° / 55° |
| Optic | Aluminum Reflecor |
| Housing Material | Diecast Aluminum |
| Dimension | Ø90x65mm |
| Dimension | Ø110x72mm |
| Dimension | Ø130x90mm |
| Dimension | Ø172x112mm |
| Dimension | Ø230x124mm |
| Cut hole | Ø75mm |
| Cut hole | Ø95mm |
| Cut hole | Ø110mm |
| Cut hole | Ø145mm |
| Cut hole | Ø200mm |
Buyers And Applications
Who Buys It
- Lighting importers stocking a recessed downlight range for hospitality projects
- Electrical wholesalers who need a low-glare downlight option for contractors
- Lighting designers specifying UGR ratings on lighting layouts
- Hotel and hospitality FF&E buyers replacing halogen downlights with LED
- Shopfitters and contractors refitting retail spaces with energy-efficient lighting
Where It Is Used
- Hotel lobbies and reception areas needing low glare and comfortable lighting
- Corridors and hallways requiring consistent illumination and low maintenance
- Retail spaces needing accent lighting with minimal glare
- Offices and conference rooms needing comfortable and efficient lighting
- Restaurants and bars needing adjustable lighting for different ambiances
What Goes Wrong Without It
- High-glare downlights that cause discomfort for building occupants
- Low-efficiency halogen downlights that increase energy costs
- Frequent downlight failures due to overheating and poor driver quality
- Limited choice of beam angles for different ceiling heights
- Inconsistent colour temperature across a large installation
How It Is Built
- Epistar LED chip with CRI above 80 for accurate colour rendering
- Lifud constant current driver with DC output
- Power factor above 0.5 to limit harmonic distortion
- Diecast aluminium housing acting as the primary heatsink
- Aluminum reflector for precise beam control
- 36 and 55 degree beam angle options
- IP44 rating for protection against dust and moisture
Materials
- Diecast aluminium housing for heat dissipation and durability
- Aluminum reflector for precise beam control
- Epistar LED chip for consistent light output
Certifications
- CE
- RoHS
- CCC
- CQC
- ISO 9001:2015 quality system
How It Is Made And Checked
Manufacturing Process
- Diecast aluminium housing produced and finished
- Epistar LED chip mounted onto the PCB
- Lifud driver wired and tested
- Reflector and optic fitted
- Assembly tested and inspected before packing
Quality Control
- Incoming inspection of LED chips, drivers and housings
- Photometric testing to confirm lumen output and colour temperature
- Reliability testing before the batch is released
- 100% inspection of every fixture before shipment
What We Can Change For You
- Beam angle selected from 36 or 55 degrees at order
- Colour temperature selected from 3000K, 4000K or 6000K
- 3D drawing within 2 days and mock-up sample within 3 days for OEM designs
How It Compares With The Alternatives
| Halogen downlight | Lower energy consumption and longer lifespan, but the initial fixture cost is higher |
|---|---|
| 20W LED downlight | Lower power consumption for the same light output, but may have higher glare |
| Recessed linear light | More diffuse light, but less precise beam control |
| Surface mounted downlight | Easier to install, but less aesthetically integrated |
Before You Order And Before You Install
- Confirm the ceiling cut-out size before ordering
- Select the appropriate beam angle for the ceiling height and application
- Ensure the driver is compatible with the dimming system, if required
- Mount the downlight securely in the ceiling cut-out
- Avoid direct exposure to moisture or extreme temperatures
Where This Fixture Is Specified
Other Fixtures For The Same Ceiling
IP44 Recessed LED Downlight
COB Recessed LED Downlight
SMD Recessed LED Downlight
3 Wire LED Track Rail
Read Before You Specify
What CRI Means For Retail And Hospitality Lighting
CRI is the number that decides whether merchandise looks like the catalogue. Here is what to specify and why the difference between 80 and 90 is visible.
UGR And Glare Control In Recessed LED Downlights
UGR below 19 is written into most office and hospitality specifications. This explains what produces the figure and how to hit it.
How To Plan Downlight Cut Holes And Spacing
Cut hole and spacing are set on the ceiling drawing long before the fittings arrive. Get them from the fixture, not from a rule of thumb.
Frequently Asked Questions
What is the UGR of this downlight?
The UGR is less than 19, which provides low glare and comfortable lighting.
What is the IP rating?
The IP rating is IP44, which provides protection against dust and moisture.
What is the warranty period?
The warranty period is 3 years.
Which driver brand do you use?
We use Lifud drivers for stable performance and long life.
Can I order a different beam angle?
Yes, beam angles of 36 and 55 degrees are available.
What certifications do these downlights have?
They are certified to CE, RoHS, CCC and CQC, and the factory is certified to ISO 9001:2015.
Can you supply IES files for lighting design?
Yes, we can supply IES files on request.
Request A Quote On The Anti Glare COB LED Downlight
Send the quantity, colour temperature and beam angle. If you are matching an existing installation, send a photo of the rail end or the ceiling aperture with the enquiry.
