30W Zoomable LED Track Light
The CH-GD16P30 is a 30W zoomable LED track light designed for commercial interiors where beam angle flexibility and consistent colour rendering are required. It operates on 220-240VAC, delivers 2400 lumens at 80lm/w, and uses a CREE LED chip with CRI above 90, ensuring accurate colour reproduction on retail displays and architectural surfaces. The beam angle is manually adjustable from 15 to 60 degrees, allowing precise control over accent and wash lighting. The head rotates 355 degrees horizontally and tilts 90 degrees vertically, enabling re-aiming after installation. The adapter is available in 2, 3 or 4 wire versions to match existing track systems. Triac or DALI dimming is optional and must be specified at order.
Ask for the IES file or a Dialux calculation with your enquiry.
What This Fixture Does For You
- CRI above 90 maintains true colour on fabrics, food and architectural finishes under the beam
- 2400 lumens from 30W delivers high visual output without excessive power draw
- Manually adjustable beam angle from 15 to 60 degrees allows on-site fine-tuning of light spread
- 355 degree rotation and 90 degree tilt enable re-aiming when the layout changes
- Lifud flicker-free driver prevents banding in video and mobile phone footage
- Extruded aluminium housing dissipates heat efficiently to maintain lumen output over time
- 2, 3 or 4 wire adapter matches existing track systems without requiring rail replacement
| Model | CH-GD16P30 |
|---|---|
| Input Voltage | 220-240VAC |
| Frequency | 50Hz / 60Hz |
| System Power | 30W |
| Driver | Lifud flicker free, DC30-40V 750mA output |
| LED Chip | CREE |
| CRI | >90 |
| System Lumen | 2400lms |
| Efficiency of Fixture | 80lm/w |
| Colour Temperature | 2700K, 3000K, 3500K, 4000K, 6000K |
| Beam Angle | 15° – 60° |
| Housing Material | Extrusion aluminium |

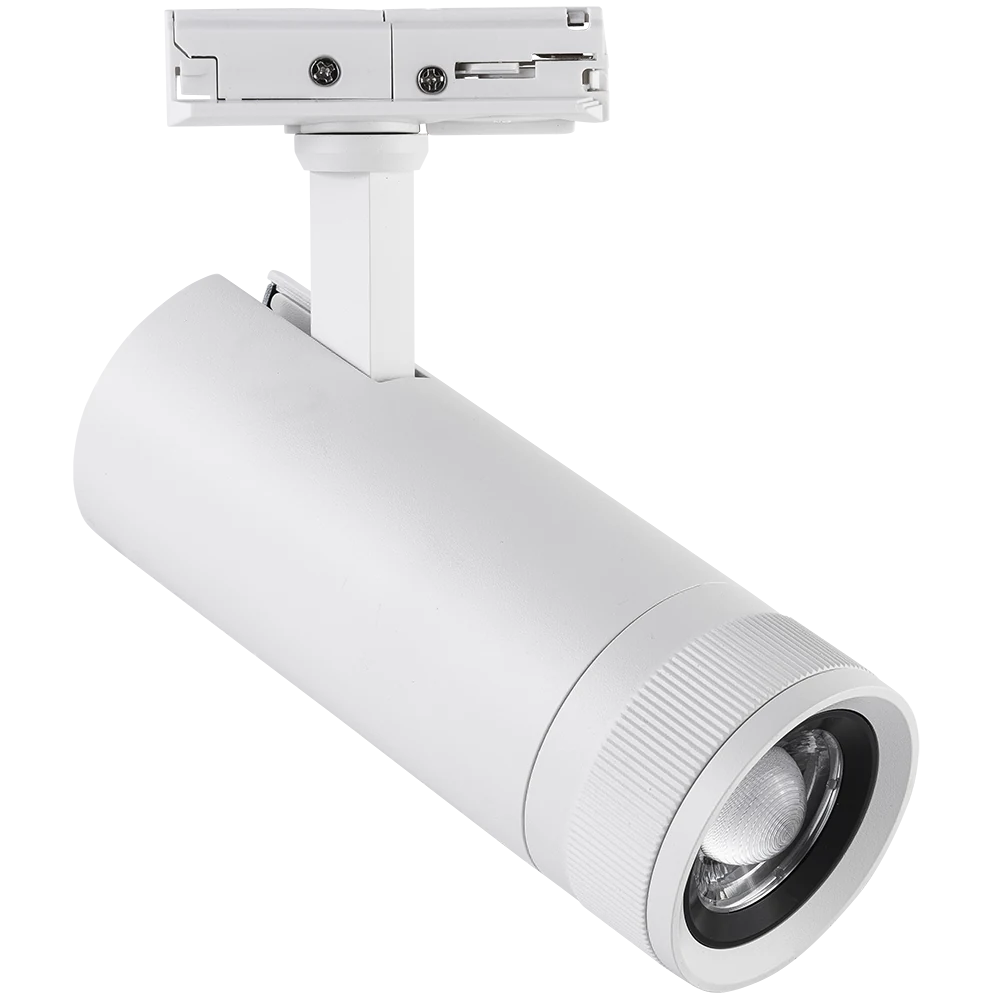

| Adapter | 2 / 3 / 4 wires |
| Dimming | Triac or DALI optional |
| Adjustment | 355° rotatable, 90° vertical |
| Dimensions | Ø80x178mm |
Buyers And Applications
Who Buys It
- Lighting importers sourcing track lights with beam angle flexibility for commercial projects
- Electrical wholesalers needing 2, 3 and 4 wire options from a single supplier
- Lighting designers specifying beam angle per zone in a Dialux layout
- Shopfitting contractors installing track systems with re-aimable heads
- Hospitality and FF&E buyers replacing halogen spots with LED without changing track infrastructure
Where It Is Used
- Retail shop floors where product colour must match digital images and in-store displays
- Showrooms and galleries needing variable beam angles for different-sized exhibits
- Supermarket aisles lit on separate circuits with dimming control for energy savings
- Hotel lobbies and reception areas where fittings are re-aimed for seasonal or event lighting
- Villas and private residences with high ceilings requiring flexible beam control
What Goes Wrong Without It
- Fixed beam spotlights that cannot be re-aimed when the store layout changes
- Low-CRI LED lights that make red, brown and natural materials look dull or flat
- Halogen track lights that draw more power for the same visual brightness
- Cheap drivers that flicker on camera and fail early in high-temperature ceiling voids
- Mismatched adapters that prevent installation on existing multi-circuit tracks
How It Is Built
- CREE LED chip with CRI above 90 for accurate colour rendering in retail and architectural spaces
- Lifud flicker-free constant current driver with DC30-40V 750mA output
- Power factor above 0.95 to reduce reactive load on the electrical circuit
- Extruded aluminium housing acting as the primary heatsink
- Manually adjustable beam angle from 15 to 60 degrees
- 355 degree horizontal rotation and 90 degree vertical tilt
- Optional Triac or DALI dimming declared at order
- 2, 3 or 4 wire adapter to suit single or multi-circuit track systems
Materials
- Extruded aluminium housing and heatsink
- Polycarbonate and aluminium optical assembly
- Powder coated finish applied in our own coating plant
Certifications
- CE
- RoHS
- CCC
- CQC
- ISO 9001:2015 quality system
How It Is Made And Checked
Manufacturing Process
- Aluminium extrusion cut and machined to the CH-GD16P30 heatsink profile
- Powder coating in house so finish colour is matched batch to batch
- LED board mounted and thermally bonded to the extrusion
- Lifud driver wired and the adapter fitted to the ordered wire count
- Optic and beam angle lens fitted per order
- Aging test on an automatic aging line before packing
Quality Control
- Incoming inspection of LED chips, drivers and extrusions before assembly
- Photometric testing to confirm lumen output and colour temperature
- Temperature testing on the assembled fixture
- Aging test on one of two automatic aging lines
- Reliability testing before the batch is released
- 100% inspection of every fixture before shipment
What We Can Change For You
- Beam angle selected from 15 to 60 degrees at order
- Colour temperature selected from 2700K to 6000K
- Adapter supplied in 2, 3 or 4 wire configuration
- Triac or DALI dimming version
- Housing colour changed in our own powder coating plant
- 3D drawing within 2 days and mock-up sample within 3 days for OEM designs
How It Compares With The Alternatives
| Fixed beam LED track light | Allows on-site beam angle adjustment, so no need to stock multiple SKUs for different zones |
|---|---|
| 20W non-zoomable track light | Higher output for larger retail or architectural spaces, but the beam angle is fixed at production |
| Recessed downlight | Surface-mounted and re-aimable, so better for changing layouts, though it is more visible than flush ceiling fittings |
| Integrated linear track system | Individually aimed heads allow sharper accent control, but require more precise on-site setting |
Before You Order And Before You Install
- Confirm the installed track is 2, 3 or 4 wire before ordering the adapter
- Use 15 to 24 degrees for accent lighting on merchandise and 45 to 60 degrees for general wash
- Mount the rail 2.8 to 3.5 metres above the floor for typical retail and commercial ceiling heights
- Group heads on the same circuit if you plan to dim them together
- Specify Triac or DALI at order because dimming is not field-retrofittable
- Ask for a Dialux calculation before finalising head count and spacing
Where This Fixture Is Specified
Other Fixtures For The Same Ceiling
2 Wire 30W LED Track Light
20W LED Track Light Built-In Driver
4 Wire 40W LED Track Light
4 Wire 10W LED Track Light
Read Before You Specify
How To Choose The Beam Angle For A LED Track Light
Beam angle decides whether a display reads as an accent or a wash. This guide works from ceiling height and display width to the angle you should order.
Triac Or DALI Dimming For Commercial Track Lighting
Both are offered on our track heads and both must be chosen at order. This is how to decide which one belongs in your project.
Frequently Asked Questions
What beam angles are available for this track light?
The beam angle is manually adjustable from 15 to 60 degrees. The range is set at production, so specify the desired angle per fixture when placing the order.
Does it work on my existing track?
The adapter is available in 2, 3 and 4 wire versions. Send a photo of the rail end and adapter, and we will confirm compatibility before production.
Is it dimmable?
Yes, Triac and DALI dimming are both available and must be specified at order. The standard version is not dimmable.
What CRI and lumen output can I expect?
CRI above 90 with 2400 system lumens at 30W, which is 80 lumens per watt at fixture level.
Which certifications do you hold?
Our fixtures are certified to CE, RoHS, CCC and CQC, and the factory is certified to ISO 9001:2015.
Can you make an OEM version with our housing colour?
Yes. We run our own powder coating plant, so housing colour changes are done in house. We can send a 3D drawing in 2 days and a mock-up sample in 3 days.
Can you supply photometric files for our lighting design?
Yes, we supply IES files and can run Dialux calculations for your layout.
Request A Quote On The 30W Zoomable LED Track Light
Send the quantity, colour temperature and beam angle. If you are matching an existing installation, send a photo of the rail end or the ceiling aperture with the enquiry.
