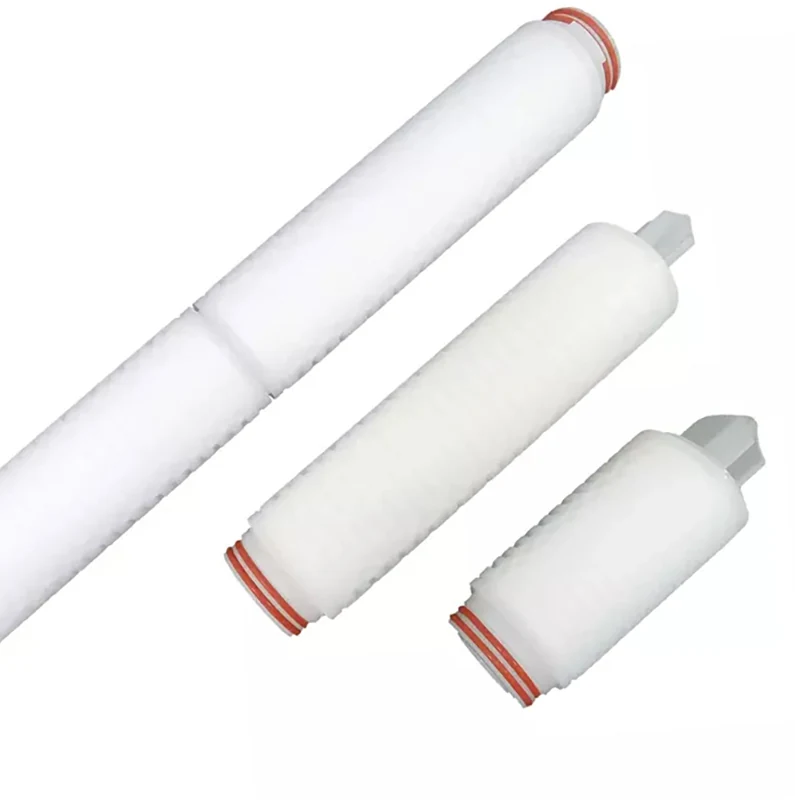

Pleated Cartridge Filter product photo 3

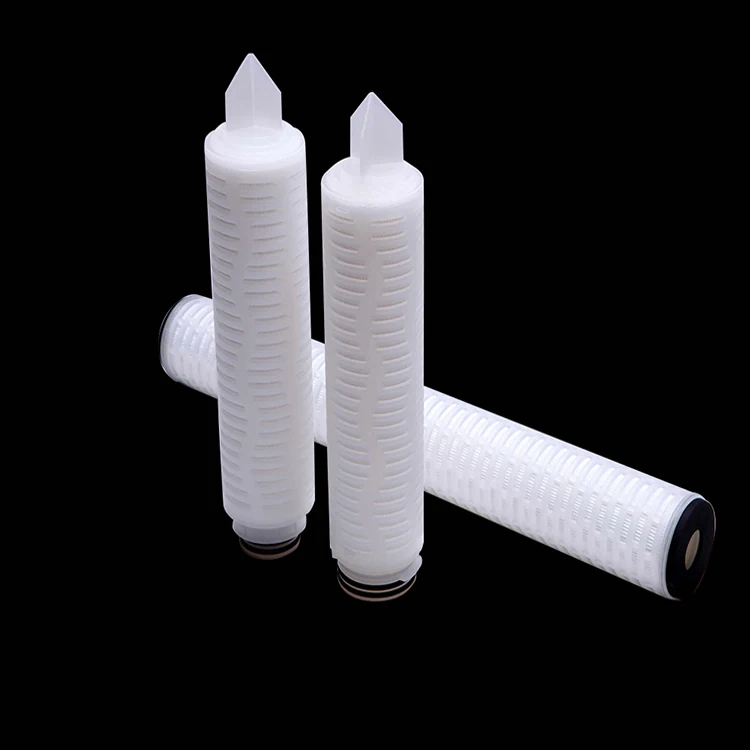

Pleated Cartridge Filter product photo 4

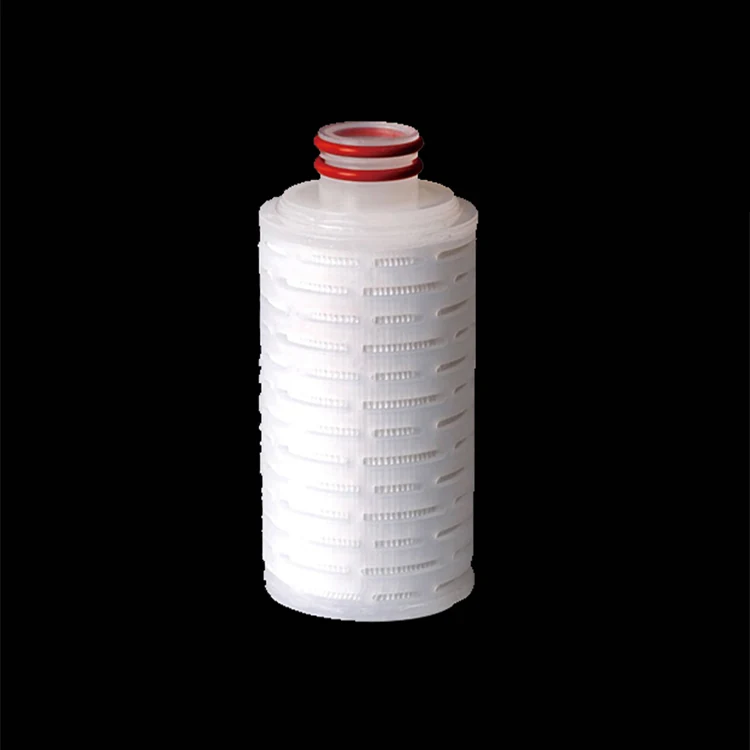

Pleated Cartridge Filter product photo 5

Industrial Filtration Products

Pleated Cartridge Filter

Pleated Cartridge Filters are designed for high-volume industrial filtration in demanding applications. They feature a pleated design that maximises filtration area within a compact housing, enabling high flow rates and extended service life. Available in multiple diameters and lengths, they are constructed with a range of filter media including Nylon66, PTFE, PES, PP, PVDF, MCE, GF, and PFA. All cartridges are integrity tested and flushed with ultrapure water before shipping, ensuring reliable performance in critical processes.

Pleated design provides high filtration area in a compact footprint, improving flow rate and reducing pressure drop
Available in multiple diameters (69mm, 83mm, 131mm) and lengths (10", 20", 30", 40") to suit various system sizes
Multiple media options cover a wide range of chemical and physical requirements, from aggressive solvents to high-temperature liquids
Thermally welded construction eliminates adhesives, reducing extractables and contamination risk

Key Benefits

What This Product Gives You

Pleated design provides high filtration area in a compact footprint, improving flow rate and reducing pressure drop
Available in multiple diameters (69mm, 83mm, 131mm) and lengths (10", 20", 30", 40") to suit various system sizes
Multiple media options cover a wide range of chemical and physical requirements, from aggressive solvents to high-temperature liquids
Thermally welded construction eliminates adhesives, reducing extractables and contamination risk
100% integrity tested and flushed with ultrapure water before delivery, ensuring consistent performance

Pleated construction increases effective filtration area for higher flow rates
Available in three outer diameters: 69mm, 83mm, 131mm
Available in four lengths: 10", 20", 30", 40"
Filtration areas: 0.6 m²/10", 1.45 m²/10", 2.3 m²/10"
Maximum operating temperature: 80℃
Maximum operating differential pressure: 4 bar at 21℃, 2.4 bar at 80℃
Thermally welded construction with no adhesives used in assembly
All cartridges are 100% integrity tested and flushed with ultrapure water
Multiple connection types: DOE, 213/Flat, 222/Flat/SS, 222/Fin/SS, 222/Flat, 222/Fin, 226/Fin, 226/Flat, 226/Fin/SS, 226/Flat/SS

Where It Is Used

Applications And Buyers

Application Scenarios

Filtration of industrial water and DI water in semiconductor manufacturing
Sterile filtration of compressed air and CO2 lines in pharmaceutical and biotech processes
Purification of mineral water, wine, and beer in beverage production
Filtration of aggressive acids, bases, and solvents in chemical and fine chemical industries
High-temperature liquid filtration in ophthalmic and tissue culture media preparation

Who It Is For

Industrial water treatment facilities requiring high flow and long service life
Pharmaceutical and biotech manufacturers needing low extractables and sterile filtration
Semiconductor and electronics manufacturers using ultra-pure water and chemicals
Beverage producers handling large volumes of liquids with variable particulate load
Chemical and fine chemical labs requiring robust filtration of corrosive and oxidative media

Problems It Solves

Frequent filter clogging due to low filtration area in standard cartridges
Contamination from adhesives or glues used in filter assembly
High pressure drop leading to reduced flow rates in high-volume systems
Inconsistent performance from filters not integrity tested before use
Limited media options that cannot handle aggressive chemicals or high temperatures

Data

Specifications

Diameter	69 mm, 83 mm, 131 mm
Length	10", 20", 30", 40"
Filtration Area	0.6 m²/10", 1.45 m²/10", 2.3 m²/10"
Max Operating Temperature	80℃
Max Operating DP	4 bar @ 21℃, 2.4 bar @ 80℃
Sealing Material	S=Silicone, E=EPDM, B=NBR, T=Teflon, V=Viton, E=FKM
Core Material	PP, SS
Connection Type	F=DOE, H=213/Flat, J=222/Flat/SS, K=222/Fin/SS, M=222/Flat, P=222/Fin, Q=226/Fin, T=226/Flat, R=226/Fin/SS, V=226/Flat/SS
End Cap Material	PP
Support Layer	PP

Materials

Filter media: Nylon66, PTFE, PTFE/L, PVDF/L, PES, PVDF/B, GF, PP, MCE, PFA
Support layer: PP
Cage and end cap: PP
Core: PP, SS
Sealing: Silicone, EPDM, NBR, Teflon, Viton, FKM

Customization Options

OEM private-label printing and packaging available through the Microlab OEM division
Custom media selection and pore size options based on application needs
Custom connection types and core materials (PP or SS) available upon request
Custom packing formats and bulk order configurations possible
Custom filtration ratings and length options can be engineered

How It Is Made

Manufacturing And Quality Control

Manufacturing Process

Pleating of filter media with precision folding to maximise surface area
Thermal welding of media to support layer and end caps without adhesive
Assembly of core, cage, and end cap into the housing
Integrity testing of each cartridge before packing
Flushing with ultrapure water to remove manufacturing residues
Final inspection and packing in protective packaging

Quality Control

Each cartridge undergoes 100% integrity testing before shipment
Sealing and structural integrity verified under operating pressure and temperature
Filter media and core materials inspected for consistency and uniformity
Flushing with ultrapure water confirmed to remove particulates and extractables
Final visual inspection for defects in pleating, welding, and housing

Comparison

Compared With The Alternatives

Versus Flat sheet cartridge filters

The pleated design provides significantly higher filtration area in the same footprint, improving flow rate and extending service life

Versus Adhesive-bonded cartridges

Thermally welded construction eliminates adhesive residues, reducing extractables and contamination risk

Versus Standard cylindrical filters

The pleated structure allows for greater surface area and lower pressure drop, especially under high flow conditions

Versus Non-integrity tested filters

Each cartridge is 100% integrity tested before shipping, ensuring consistent performance and reliability

Use Guide

How To Use It

Select the filter media based on chemical compatibility: PTFE and PFA for aggressive chemicals, PES and PP for aqueous solutions, PVDF for high-temperature and corrosive liquids
Choose the diameter and length to match the housing and system flow requirements
Ensure the connection type matches the system's inlet/outlet configuration
Verify that the maximum operating temperature and pressure are not exceeded
Flush the cartridge with appropriate solvent or water before first use if required
Replace the cartridge when pressure drop increases or flow rate decreases significantly

Photos

Product Gallery

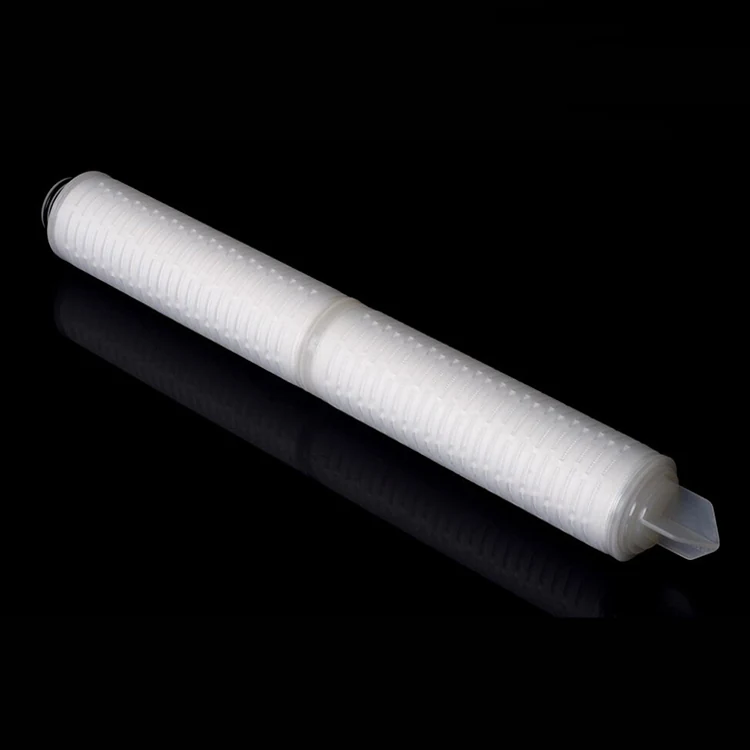

Pleated Cartridge Filter product photo 7

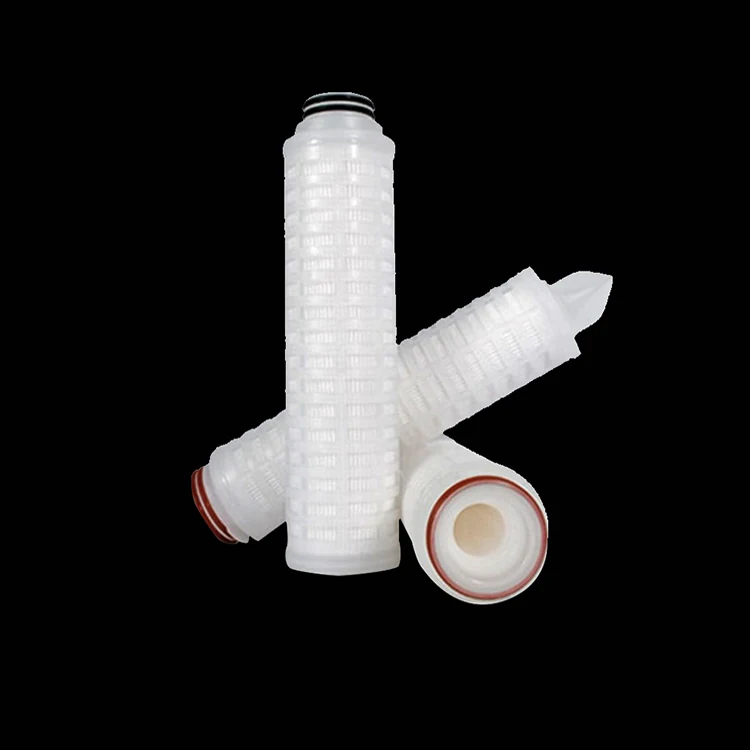

Pleated Cartridge Filter product photo 8

Also In This Category

Related Industries And Guides

Food and Beverage Testing Industrial Cartridge and Capsule Filter Guide

FAQ

Questions Buyers Ask

What is the maximum operating temperature for these filters?

Maximum operating temperature is 80℃. At this temperature, the maximum differential pressure is 2.4 bar.

Can I use this filter for sterile filtration of gases?

Yes, hydrophobic PTFE and PTFE/L series are suitable for sterile filtration of compressed air and CO2 lines.

What does '100% integrity tested' mean?

Each cartridge is tested for structural and sealing integrity under pressure to ensure no leaks or defects before shipping.

Which media should I use for strong acids and bases?

Use PTFE, PFA, or PVDF series filters, which offer excellent chemical compatibility and corrosion resistance.

Can I get these filters with a different core material?

Yes, cores are available in PP or SS. Specify the requirement when placing an order.

Do you offer private-label packaging?

Yes, the Microlab OEM division supports private-label printing and custom packaging for bulk orders.
