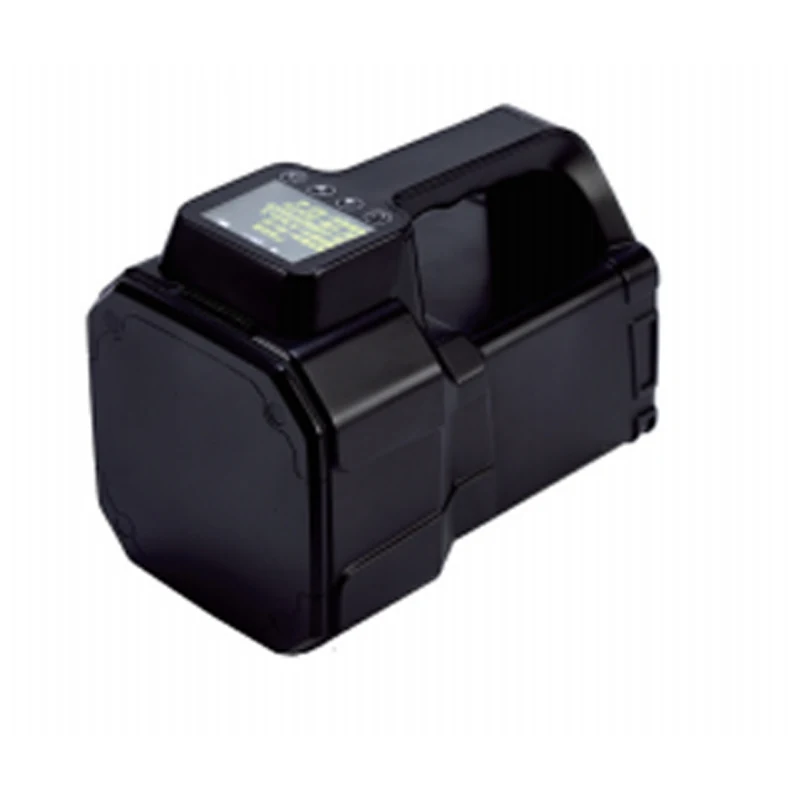

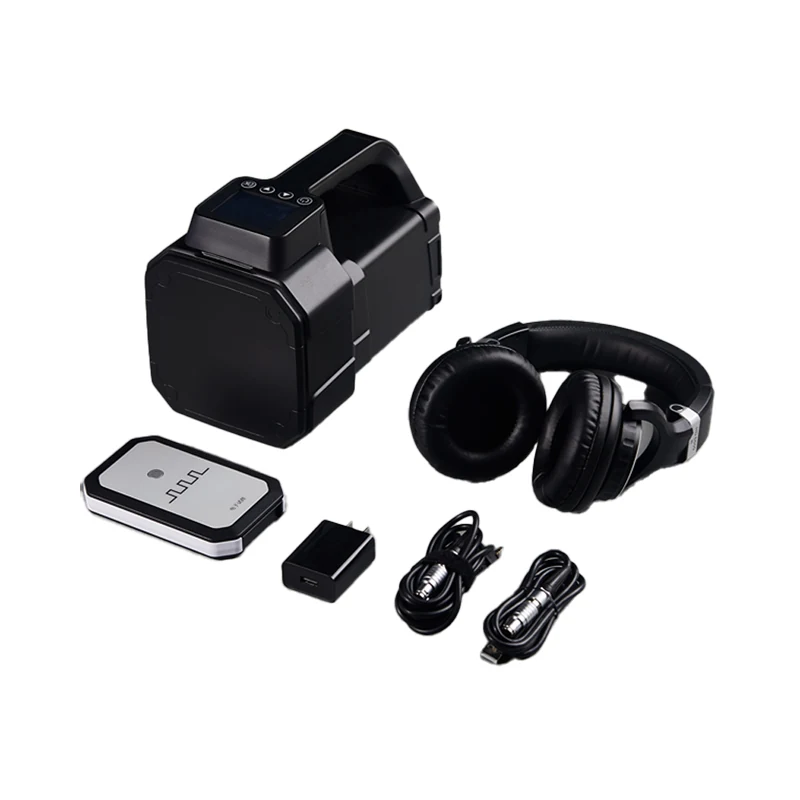

VT-808 Electronic Audio Detector
The VT-808 listens for mechanical movement inside a sealed package. Using RF audio detection it picks up a mechanical watch through 100 mm of polyethylene foam plus 200 mm of A4 paper, which is the kind of concealment a visual or metal check will not resolve. Remote listening lets the detector be carried to the package by a drone or robot rather than by a person.
Key benefits
- Detects electronic and mechanical timer devices inside packaging
- Remote distortion-free listening when paired with a drone or robot
- Mechanical watch detected at 2.5 m or more
- Up to 20 hours of operation from low power consumption
- IP65 rated for field use
Problems it solves
- A sealed package gives no visual or metal signature of a timer
- Approaching a suspicious device to listen puts an operator at risk
- Ambient noise masks the faint sound of a mechanism
- Short battery life forces a team to withdraw mid-operation
Who it is for
- EOD and anti-terrorism teams who must not approach an item
- Security personnel at transport hubs
- Counter-surveillance teams checking rooms and containers
Application scenarios
- Anti-terrorism units assessing a suspicious package remotely
- Airports, stations and ports inspecting unattended items
- Government facilities running professional safety checks
- Counter-surveillance sweeps for recording devices
Technical features
- Self-developed non-linear harmonic detection technology and algorithms
- RF audio detection for precise localisation
- Built-in lossless sound detection and noise reduction
- Noise-cancelling headphones rated -20 dB(A) or better
- Circular polarisation antenna with LCD display
Specifications
| Working Voltage | 3.7 V |
|---|---|
| Antenna Polarisation | Circular |
| Display | LCD |
| Noise-Cancelling Headphones | -20 dB(A) or better |
| Remote Listening | Supported |
| Battery Operating Time | lithium battery, 10 hours or more at maximum power consumption |
| Standby | up to 20 hours |
| Protection Level | IP65 |
| Detection Distance, Mechanical Watch | 2.5 m or more |
| Detection Distance, Alarm Clock / Electronic Timer / Digital Timer | 0.5 m or more |
| Penetration | 100 mm polyethylene foam plus 200 mm A4 paper (70 g) |
| Product Size | 209 x 132 x 154 mm |
| Outer Case Size | 410 x 290 x 268 mm |
| Product Weight | 0.96 kg |
| Operating Temperature | -30°C to 55°C |
| Operating Humidity | not more than 93%, no condensation |
Figures are those published by the factory for this model. Where a value is shown as TBC it is not published, and we will confirm it with the factory before you order rather than estimate it.
Compared with other models in the range
A non-linear junction detector such as the VT-801 finds the semiconductor in a device. The VT-808 works on sound: it hears the mechanism moving, which is how it catches a mechanical timer that contains no semiconductor at all. The two cover different threats.
Use guide
- Fit the noise-cancelling headphones before approaching the area
- Work within 2.5 m for a mechanical watch and 0.5 m for timer devices
- Mount on a drone or robot and use remote listening where approach is unsafe
- Allow for penetration through packing material rather than assuming line of sight
- Operate between -30°C and 55°C at up to 93% humidity
Product images
Where this product is used
Part of RF Signal Protection and Audio Detection · typically specified for:
VT-808 Electronic Audio Detector FAQ
Can it hear through packaging
Yes. A mechanical watch is detected through 100 mm of polyethylene foam plus 200 mm of A4 paper.
How far away can it detect
2.5 m or more for a mechanical watch and 0.5 m or more for alarm clocks and electronic or digital timers.
Can it be used without approaching the item
Yes, remote distortion-free listening is supported with drones and robots.
How long does the battery last
10 hours or more at maximum power consumption, with standby up to 20 hours.
Is it rated for outdoor use
IP65, operating from -30°C to 55°C.
How heavy is the unit
0.96 kg, at 209 x 132 x 154 mm, supplied in a 410 x 290 x 268 mm case.
Can it also find eavesdropping devices
It can be used as a counter-surveillance tool for electronic eavesdropping and hidden video recording devices.
