Numeric Keypad With LCD
KY2388FR Metal Keypad With LCD and DES TDES Support

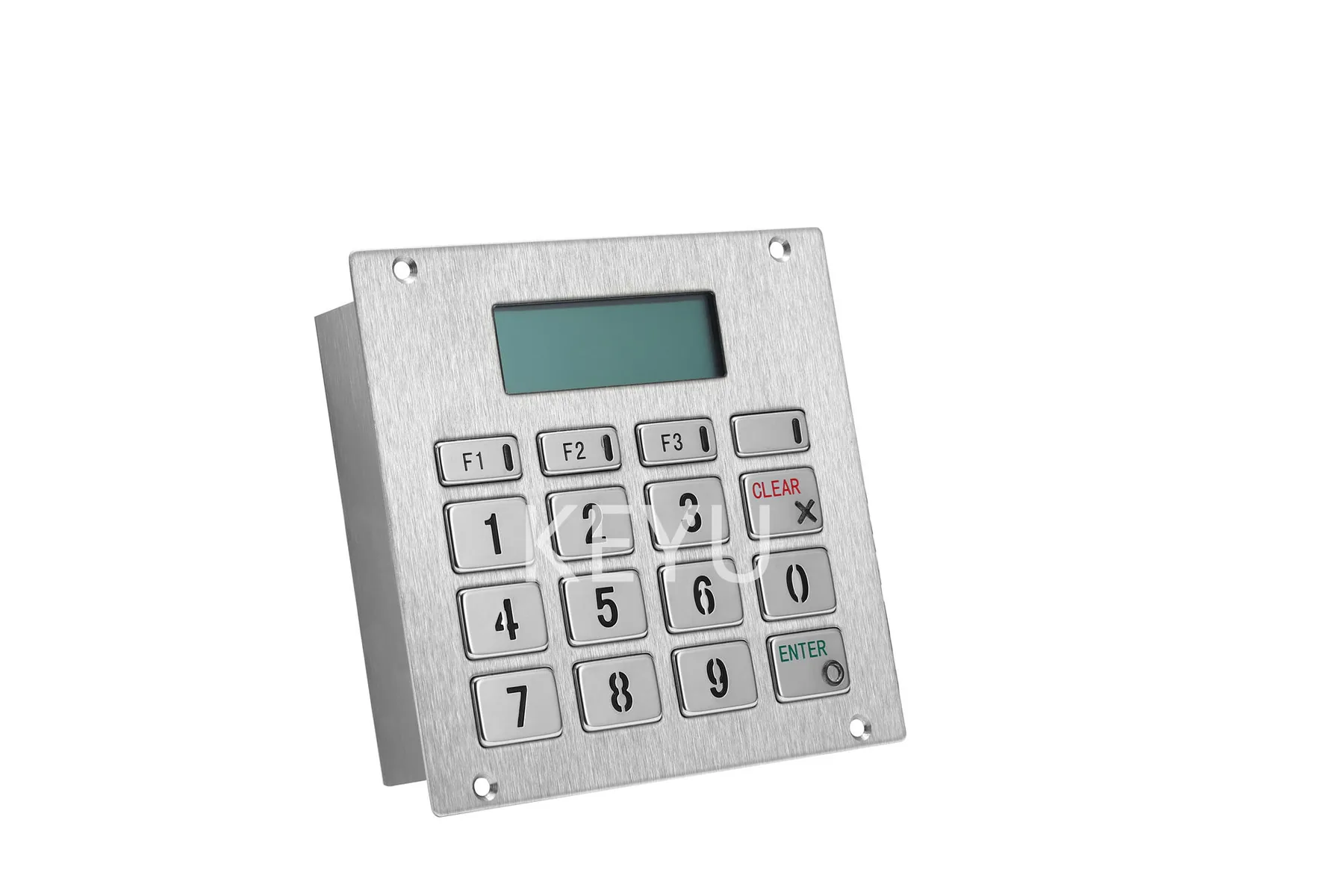

KY2388FR combines a metal keypad with a 122*32LCM display in a 128.5*123 mm panel, so a terminal can prompt the user and take input on one part.
Product Overview
KY2388FR combines a metal keypad with a 122*32LCM display in a 128.5*123 mm panel, so a terminal can prompt the user and take input on one part. Display text is customizable over the RS232 interface and the module supports the DES and TDES algorithms. Backlight is available in yellow or green and backlight keys are optional.
- Built-in 122*32LCM display removes the need for a separate prompt screen
- Yellow or green backlight keeps the display readable in poor lighting
- DES and TDES algorithm support for protected data entry
- RS232 interface lets a controller drive the display text directly
- IP65 approval suits outdoor parking and fuel forecourt installations
- Square 128.5*123 mm panel simplifies the fascia cut-out
Application Scenarios
- Oil and gas forecourt payment points
- Parking entry and payment terminals
- Vending machines with on screen prompts
- Industrial automation operator input stations
- Transportation and automotive service terminals
- Pharmaceutical, medical and healthcare access points
Who It Is For
- Parking and fuel payment terminal OEMs
- Vending machine manufacturers
- Industrial automation panel builders
- Healthcare and pharmaceutical equipment suppliers
Problems It Solves
- A keypad without a display forces a second cut-out and cable run
- Entry of protected data needs algorithm support rather than plain text
- Fascia mounted displays wash out in daylight without backlight choice
- Outdoor terminals need sealing and approvals that office parts cannot meet
Technical Features

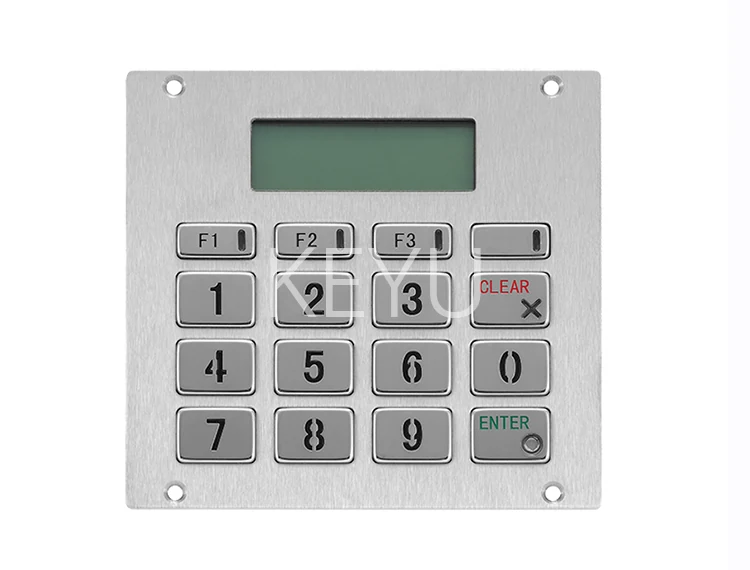

- 122*32LCM display with yellow or green backlight
- Customizable display text over RS232
- Support for DES and TDES algorithms
- Front panel and overall size both 128.5*123 mm
- Power supply DC5V plus or minus 5 percent, working current under 150mA
- Operation force 220g plus or minus 20g with durability of 2 million or more
- Packing dimension 160*160*60mm
Specifications
| Display | 122*32LCM, yellow or green backlight |
|---|---|
| Front panel | 128.5*123 mm |
| Overall | 128.5*123 mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2, RS232 |
| Operation force | 220g±20g |
| Durability | ≥ 2Million |
| Packing dimension | 160*160*60mm |
| Mounting way | Rear mounting or Front mounting |
| Operating temperature | -10℃~55℃ (Relative humidity 20%~85%) |
| Approvals | ROHS, IP65, FCC, CE |
Materials
- Metal keypad panel
- LCD display window
Manufacturing Process
- Panel blanking to 128.5*123 mm
- CNC machining of the key field and LCD display window
- LCM module fitting with backlight assembly
- Sealing and gasket fitting for the IP65 rating
- RS232 wiring, algorithm loading and display text configuration
Quality Control
- Display contrast and backlight colour checked on every unit
- Key output and display text tested together over RS232
- Operation force sampled against the 220g±20g figure
- Sealing verified against the IP65 approval
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
Customisation Options
- Display text content defined by the customer
- Yellow or green backlight selected at order
- Backlight keys added as an option
- Interface chosen from USB, PS/2 or RS232
- Rear or front mounting arrangement
How It Compares
| Metal keypads without a display | KY2388FR carries a 122*32LCM display so prompts and entry share one panel and one cut-out. |
|---|---|
| Plastic LCD keypads | The metal keypad with LCD is IP65 approved for outdoor parking and forecourt exposure. |
| Keypads without algorithm support | KY2388FR supports DES and TDES for protected entry applications. |
Use Guide
- Cut the fascia for a 128.5*123 mm panel and choose rear or front mounting
- Connect RS232 to drive the display text from your controller
- Confirm backlight colour and display content before final assembly
- Maintain gasket compression so the IP65 rating holds outdoors
- Operate within -10℃~55℃ ambient
Related Products
Questions About This Model
What display does KY2388FR use?
It uses a 122*32LCM display with a yellow or green backlight.
Can the displayed text be changed?
Yes. Display text can be customized and is driven over the RS232 interface.
Does it support encryption algorithms?
It supports the DES and TDES algorithms.
What approvals are listed?
ROHS, IP65, FCC and CE.
Are backlit keys available?
Backlight keys are optional.
What is the packed size?
Packing dimension is 160*160*60mm.
Request A Quote On KY2388FR
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
